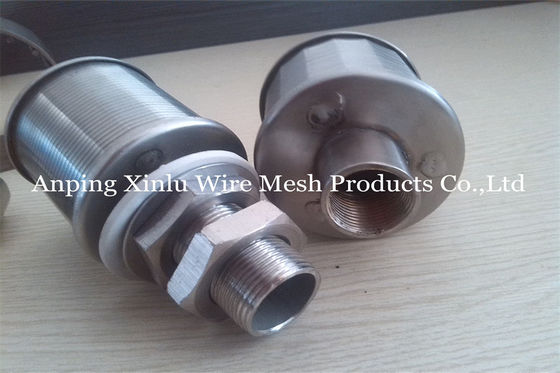

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment
Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Large Image :  Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Water Filter Nozzles - 030
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable according to the specification
Packaging Details: wood case
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 1000pcs/20days

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Description
Name: Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment Material: SS304, 316L, 321, Duplex Stainless Steel, Hastelloy
Diameter: 82mm, Or Customized End Connection: M32
Slot: 0.2mm Weight: 0.5-0.8kg/pcs
Used: Water Input Device, Water Distributor And Resin Trans Wedge Wire: Profile Wire: 1.5x2mm, Support WireL 1.8x2.5mm

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment



Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

Wedge wire filter nozzles are made from V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with a unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

Nozzles are used in liquid/solid or gas/solid separation. We design and customize nozzles according to customers' working conditions and ensure the material, specification, thread are good for customer demand.



Benefits Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment



  • Strong structure and corrosion resistance.

  • Perfect clogging-resistance.

  • The high percentage of open area.

  • Easily install

  • Can be designed and customized according to working conditions.



Premium nozzles



Available with various materials with perfect corrosion resistance, especially for applications of pharmaceutical or chemical. The extremely strict control of slot opening size ensures extremely precise filtration.



Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle Types:
1. Single head filter nozzle
2. Double head filter nozzle

3. Long handle filter nozzle
4. Double flow filter nozzle
5. Flatwater filter nozzle, etc.

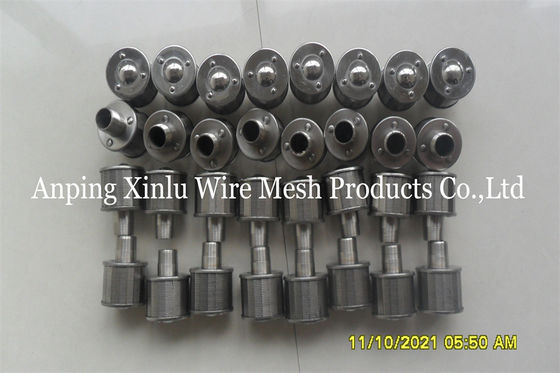

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 0



Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle



Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment), and other materials to ensure strong product structure and product bearing capacity.



Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)


Slot size: 0.04" - 0.3"


Diameter: 1" - 16"


Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets



Application: Water distributor, tank, power plant, Water treatment, sand filter, water softening, desalination.



Available in a variety of standard designs or can be customer designed to meet your requirement.

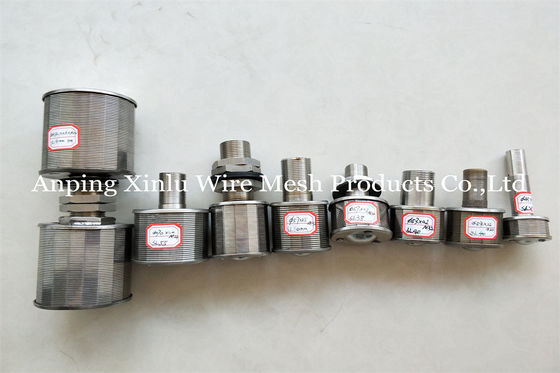

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 1

Note: All the length units are in millimeter.

No. Model Type D L H

Slot

(MM)

Threaded

Slot 0.2-0.25

open areas mm2

FYN1 XL45-1-A 45 80 25 0.2-0.5 M25 280
FYN2 XL45-1-B 45 90 35 0.2-0.5 M25 390
FYN3 XL45-1-C 45 98 34 0.2-0.5 M20 380-493
FYN4 XL45-1-D 45 100 45 0.2-0.5 M25 500
FYN5 XL45-1-E 45 100 34 0.2-0.5 M24 551-690
FYN6 XL45-1-F 45 110 45 0.2-0.5 M25 550
FYN7 XL45-1-G 45 55 35 0.2-0.5 M25 380
FYN8 XL45-1-H 45 65 45 0.2-0.5 M25 550
FYN9 XL53-2-A 53 90 35 0.2-0.5 M25 450
FYN10 XL53-2-B 53 100 34 0.2-0.5 M24 453-597
FYN11 XL53-2-C 53 100 45 0.2-0.5 M25 570
FYN12 XL53-2-D 53 100 50 0.2-0.5 M27 680-710
FYN13 XL53-2-E 53 105 34 0.2-0.5 M32 800-920
FYN14 XL53-2-F 53 110 45 0.2-0.5 M25 580
FYN15 XL53-2-G 53 110 50 0.2-0.5 M32 700
FYN16 XL53-2-H 53 120 55 0.2-0.5 M32 700
FYN17 XL57-3-A 57 100 35 0.2-0.5 M32 530
FYN18 XL57-3-B 57 110 45 0.2-0.5 M32 600-680
FYN19 XL57-3-C 57 115 35 0.2-0.5 M30 560-670
FYN20 XL57-3-D 57 120 55 0.2-0.5 M32 800-905
FYN21 XL60-4-A 60 120 55 0.2-0.5 G1″ 905-1100
FYN22 XL70-5-A 70 105 40 0.2-0.5 M32 650
FYN23 XL70-5-B 70 110 45 0.2-0.5 M32 800
FYN24 XL70-5-C 70 115 50 0.2-0.5 M32 810
FYN25 XL70-5-D 70 120 55 0.2-0.5 M32 1000
FYN26 XL82-6-A 82 120 60 0.2-0.5 G2″/M42
FYN27 XL82-6-B 82 130 50 0.2-0.5 M33 1170-1280
FYN28 XL108-7-A 108 200 100 0.2-0.5 G2″ 3050-4600



Note:1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.

2. Available in customer design for perforated plate.
3. D: Filter outdiameter, L1: Filter Length, L: Overalength, M:threaded size

4. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets




Advantage of our Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application/food industry suitability
Low-pressure drop
High flow rate
We can supply all kinds of filter nozzles, and the material and size can be customed. We can design according to the actual application.



OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.



Why choose us ?

1. We are the professional manufacturer.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.

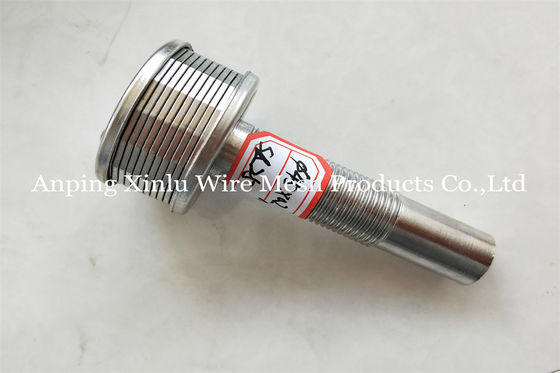

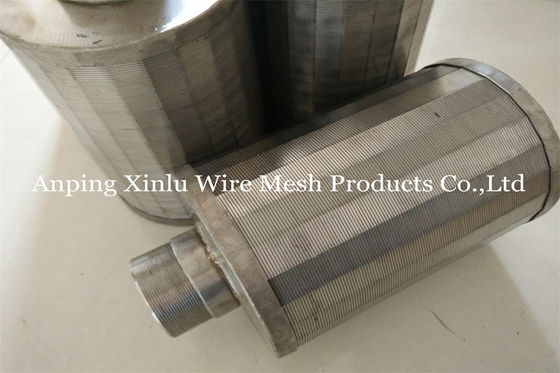

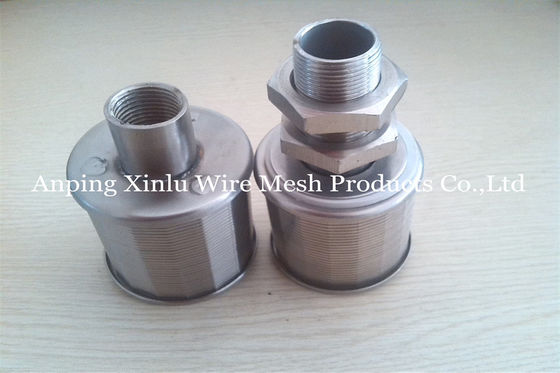

Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 2Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 3Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 4Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment 5
