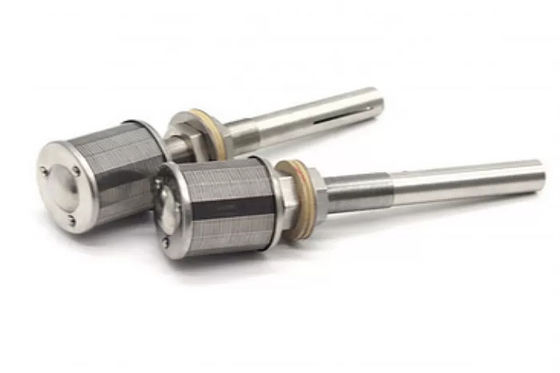

Long Hand Retention Screen Nozzle Stainless Steel Filter Nozzle with Slot 0.25mm
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

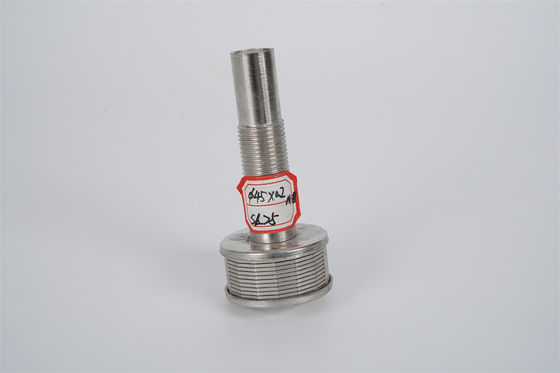

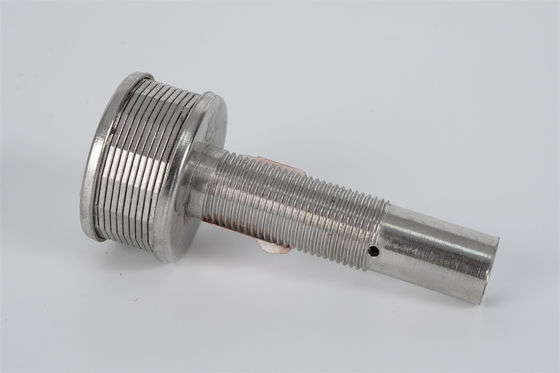

Wedge wire water filter nozzle is also known as Johnson screen filter nozzle, it is fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end and can be secured with a nut and washer
We provide a wide range of industrial water filter nozzles and nozzle strainers for water treatment. Our products are used in industrial water treatment, wastewater treatment, water purification, ions exchange systems, and also in domestic uses like swimming pools, irrigation, and water softening filters. Our great field experience allows us to be one of the leading filter nozzle manufacturers all over the world.
Stainless steel wedge wire water filter nozzle strainer is suitable for water treatment, all kinds of matching ion exchange columns and activated carbon filters, it can also be used in the drainage system of fast filter.
Filter nozzles industrial applications:
Electricity power generation, Chemicals & Pharmaceuticals, Petrochemicals, Metal and Paper, Food & Beverage, Agricultural & Zootechnics, Health & Swimming Pools

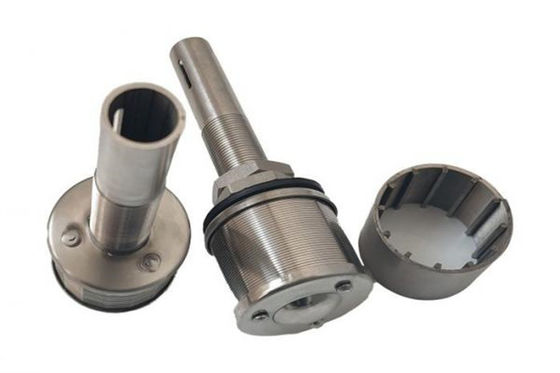

Stainless steel wedge wire water filter nozzle has more types:
Single filter nozzle
Double filter nozzle
Long handle filter nozzle
Double flow filter nozzle
Flatwater filter nozzle
No matter which type, it's made in stainless steel wedge wire material, Reasonable structure, connected firmly, high compressive strength, gaps are not aberrations, can make no backwater district between the filter plate, not sludge deposit in, effect.
Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle
Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment), and other materials to ensure strong product structure and product bearing capacity.
Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)
Slot size: 0.04" - 0.3"
Diameter: 1" - 16"

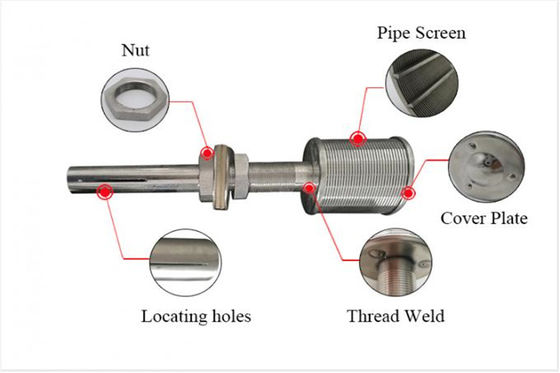

Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water distributor, tank, power plant, Water treatment, sand filter, water softening, desalination.
Available in a variety of standard designs or can be customer designed to meet your requirement.
Note: All the length units are in millimeter.
| Modle Type |
Slot |
Dimension |
slot 0.2-0.25mm
open areas (mm2)
|
| D |
H |
L1 |
L |
ThreadedM |
| FY-XL-CB-45-A |
0.2-0.5 |
45 |
30 |
Available in customer design |
180 |
25 |
330 |
| FY-XL-CB-45-B |
0.2-0.5 |
45 |
35 |
150 |
25 |
330 |
| FY-XL-CB-45-C |
0.2-0.5 |
45 |
40 |
190 |
25 |
450 |
| FY-XL-CB-45-D |
0.2-0.5 |
45 |
40 |
160 |
25 |
400 |
| FY-XL-CB-53-A |
0.2-0.5 |
53 |
40 |
190 |
30 |
500 |
| FY-XL-CB-53-B |
0.2-0.5 |
53 |
45 |
170 |
25 |
510 |
| FY-XL-CB-53-C |
0.2-0.5 |
53 |
50 |
180 |
32 |
640 |
| FY-XL-CB-53-D |
0.2-0.5 |
53 |
50 |
200 |
30 |
630 |
| FY-XL-CB-53-C |
0.2-0.5 |
53 |
40 |
235 |
32 |
500 |
| FY-XL-CB-57-A |
0.2-0.5 |
57 |
40 |
190 |
32 |
605 |
| FY-XL-CB-57-B |
0.2-0.5 |
57 |
45 |
190 |
32 |
630 |
| FY-XL-CB-57-C |
0.2-0.5 |
57 |
50 |
200 |
32 |
780 |
Note:1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. D: Filter outdiameter, L1: Filter Length, L: Overalength, M:threaded size
4. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets
Advantage of our Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment
Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application/food industry suitability
Low-pressure drop
High flow rate
We can supply all kinds of filter nozzles, and the material and size can be customed. We can design according to the actual application.
OEM service:
Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.
3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.
4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.
5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
