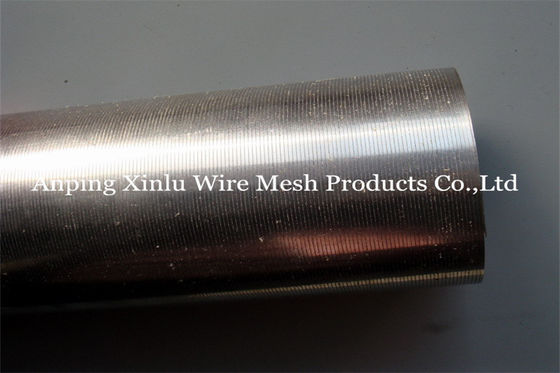

Continous Slot Water Well Angular Screen Filter Pipe 6inch 316L Wedge Wire For Sand Control
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,

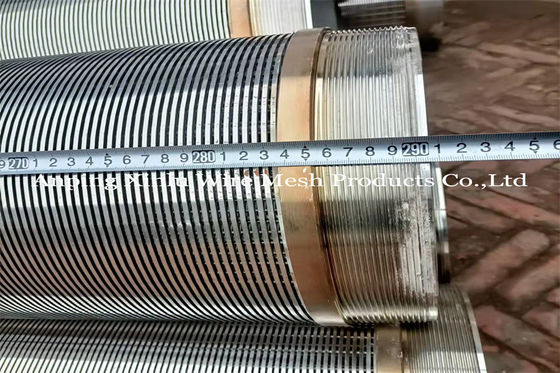

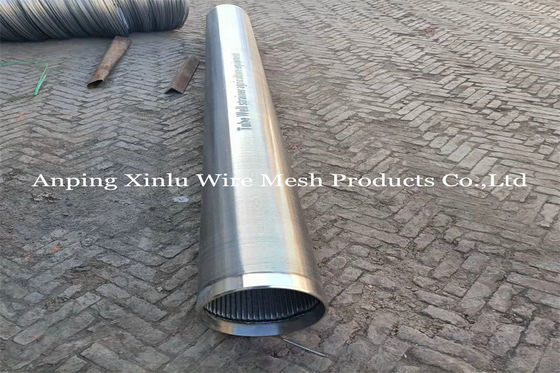

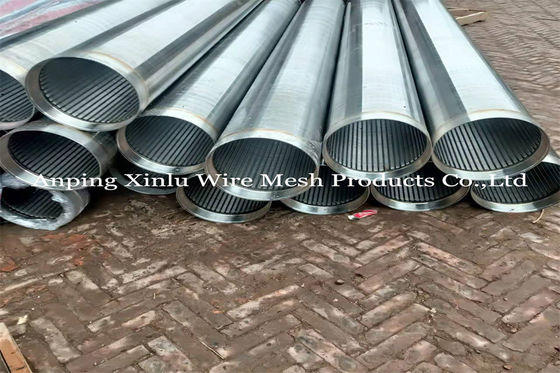

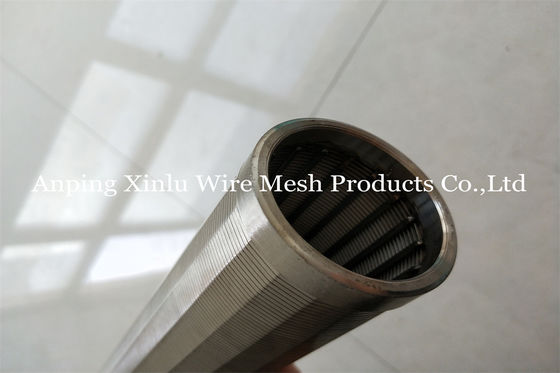

Water Well Screen Pipe
Advantage
1.Competitive price
2.Drain quickly,high filter fineness
3.Long using time
4.Quick delivery
Specification
| Wire wrapped well screen Specification |
| Material: |
AISI304/316/316L,etc. |
| Wedge Wire (mm): |
2.2x3.5, 2x3 , 3x5 , 3.2x6 |
| Support Rod (mm): |
Width : 2.2, 2,3, 2.5, 3.0, 3.2 |
| Height : 3.0, 3.5, 4, 4.6,6 |
| Round : 2.50mm -- 6.0mm |
| Slot Size |
0.10 -- 6.00mm ,also can be customized as your request. |
| Length |
Max 6 meters. |
| Diameter (Inch) |
4'' 6'' 8'' 10'' |
| Note: Other specifications can be customized according to your requirement. |
Technical patameter
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE
(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
>22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
>28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
>33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>60 |
39.5 |
3.0x5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
>120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
>80 |
37.8 |
3.0x5.0 |
4.0MM/59
|
Opening area (filter rate)calculate
Slot Size
Open Area (%) = * 100
Slot size + Wire width
Wire srapped well screen Feature
1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
Wire wrapped water well screen pipe Application
Wire wrapped well screen is widely used in mining, coal, petroleum, fertilizer, grain, salt,industry, environment protection, etc. Sieving liquid, powder and other materials.
Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.
Our Services

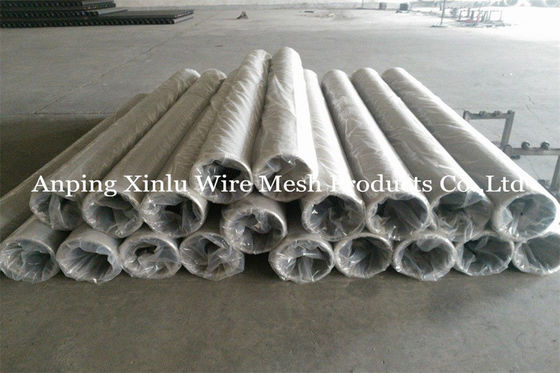

Welded water wedge wire screen pipe /johnson v wire screen tube Packing
Before -sales service
1. We can supply free sample for your check
2. We will service you need
After- sales service
1. We will be responsible for quality
2. We will service you need
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Stainless Steel 304/316 Wedge Wire Water Well Screen Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
Hot Tags: 8-5/8" 50bar stainless steel 304/316 wedge wire water well screen for water supply, China, manufacturers, suppliers, factory, price, Sand Control Screens, Stainless Steel Water Well Screens, Water Well Casing, Wire Wrapped Well Screen, Pipe Screen Filter
FAQ
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-610mm
2.Would you like to tell me the specification of V wire?Engineer recemand:1.5x2mm 2x3mm 2.2x3.5mm 3x4.6mm 3.2x6mm, It's up to you at last.
3.Pls tell me the slot size,the size usually is 0.1-15mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?the more you want,the price will be cheaper.
