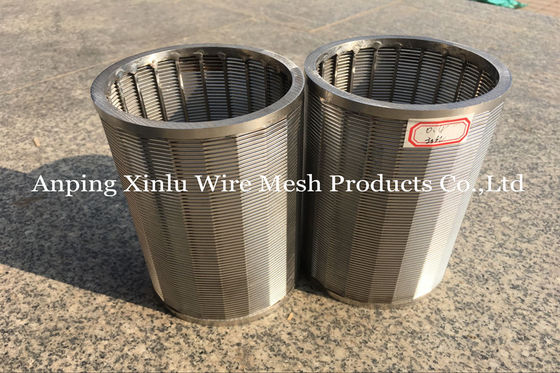

219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump

219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump
219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump

Large Image :  219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 045
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump

Description
Another Name: No Magnetic Polishing 219mm Johnson V Wire Water Well Strainer Pipe Material: SS304, 321, 205, 316L
Surface Treatment: Electrolytic Polishing Profile V Wire: 2.3x3.5mm, 2.5x4mm
Support: 3.0mm / 32pcs Legnth: 10ft, 20ft
Tag: 8" Water Well Screen, V Wire Screen Tube, Johnson Wire Screens, Continuous Slot Screen
High Light:

V Wire Water Well Screen Pipe

,

219mm Water Well Screen Pipe

,

No Magnetic Polishing Water Well Screen Pipe

219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe



XinLu factory's water well screens is produced by a perfect combination of V-shaped wire and V-shaped rod or round rod. The wire is welded onto the rod at each intersection point.


Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.



Well Scren Tube (Strainer Pipe) is a kind of filtered water tubing with the perforation. it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.



219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 0





No Magnetic Polishing 219mm Johnson V Wire Water Well Strainer Pipe Specification:

Material

Size

(Inch)

OD

(mm)

Slot

(mm)

Length

(m)

Collapse Strength

(PSI)

Tensile

Weight

(TON)

Profile wire

(WXH)

Support rod End Connection

Q195

Q235

201

205

321

304

304L

316

316L

4 117 0.040 3-6 395 6 2.2*3.0 3.8MM/22

Threaded



Welded Rings



Flange

4 114.3 0.040 3-6 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3-6 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3-6 399 10.5 3.0*4.6 3.8MM/48
8 219.1 0.020 3-6 370 10.5 3.0*4.6 3.8MM/48
8 219.1 0.040 3-6 323 10.5 3.0*4.6 3.8MM/48
10 273.1 0.010 3-6 206 11 3.0*4.6 3.8MM/50
10 273.1 0.020 3-6 191 11 3.0*4.6 3.8MM/50
10 273.1 0.040 3-6 167 11 3.0*4.6 3.8MM/50
Note: the data are for reference only, we can produce according to customer demand.
219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 1
219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 2
219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 3
No Magnetic Polishing 219mm Johnson V Wire Water Well Strainer PipeWire Size



219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 4



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



No Magnetic Polishing 219mm Johnson V Wire Water Well Strainer PipeApplication

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry



219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 5



Benefits of the No Magnetic Polishing 219mm Johnson V Wire Water Well Strainer Pipe



1. Maximum Flow Rate

The slots are arranged in a uniform pattern, allowing water to enter the screen directly from all directions of the water bearing area.



2. Excellent Sand Control Performance

Traditional perforated tubes have holes large than 1 cm, which do not keep sand out. Scratches and corrosion on the outer wrap layers leads to more sand, gravel and clay entering the well pipe, which in turn leads to clogging. However, the wedge wire screen has slot openings between 0.5mm and 1.5mm, keeping most sand and abrasive particles out.



3. Long Well Life

Each wedge wire screen undergoes anti-corrosion treatments, rendering it less prone to rust or encrustation.



4. Easy Installation

Wedge wire screens are lighter than cast iron pipes or perforated tubes, making them easier to install.



5. Standard Length

The standard length of each wedge wire screen is 3.2m. Pup joints can be added upon request.



6. Connection Method

Welded, threaded, and flanged connections are available.



Applications for the Wedge Wire Screen

This screen is applicable in vertical wells, deviated wells, directional wells, and others that require sand control.



Hot Tags: wire wrapped well screen, China, manufacturers, suppliers, factory, price, Water Slotted Pipe, Cementing Plug Non Rotating Type, Slotted Casings, Perforated Screen Pipe, Spiral Bridge Slot Well Screen, 100 Mesh Stainless Steel filter Screen

219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 6219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 7219mm Johnson Spiral V Wire Dewatering Well Screen Pipe No Magnetic Polishing For Groundwater Pump 8



FAQ
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-610mm
2.Would you like to tell me the specification of V wire?Engineer recemand:1.5x2mm 2x3mm 2.2x3.5mm 3x4.6mm 3.2x6mm, It's up to you at last.
3.Pls tell me the slot size,the size usually is 0.1-15mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?the more you want,the price will be cheaper.
