Stainless Steel Johnson V Wire Screen Pipe 6" Continuous Slot Flow Rate

Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate
Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate

Large Image :  Stainless Steel Johnson V Wire Screen Pipe 6" Continuous Slot Flow Rate

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- V Wire Screen Pipe - 031
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: wooden, pallet
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

Stainless Steel Johnson V Wire Screen Pipe 6" Continuous Slot Flow Rate

Description
Filter Name: Flow Rate JOhnson V Wire Stainless Steel Screen Pipe Material: Stainless Steel 304L, 304 316L 321
Long: Normal 2.9m, 5.8m OD: 6-5/8"
Surface: Electrolytic Polishing, Pickling Polishing Usage: In Water Well
End Joint: Bevel Welded Rings Tag: Continuous Slot Johnson Wire Screen Flow Rate Johnson Wire Screen Downhole Slotted Johnson Wire Screen Tube
High Light:

Continuous Slot V Wire Screen Filter

,

Stainless Steel Johnson V Wire Screen

,

Flow Rate Johnson V Wire Screen

3-1/2" SS Dewatering Sand Control Johnson Wire Screen



Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.





Features  Introduction of  Johnson Type Continuous Slot VWire Screen Pipe Hi-Flow Rate Stainless Steel Screen:


1. Screens with the high open area are more suitable for the construction of high-quality water wells, oil wells, gas wells.


2. Low-cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption


3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand entering into the screen because of high pressure, thus reduce the abrasion of the pump.


4. Extend the life span of wells Comparatively, groundwater’s entering into a screen with a higher open area is much easier than entering into a lower open area screen. The slow water flow shall extend the life span of wells.



Johnson Type Continuous Slot VWire Screen Pipe Parameters:



1. Filter Gap (mm) : 0.05mm, 0.1mm. 25mm, 0.5mm, 0.63mm, 0.75mm, 1.0mm in usual. (Min slot: 0.025mm)

2. The opening area is up to 80%.

3. Material: Non-magnetic Stainless steel, low carbon steel, low carbon steel galvanized, stainless steel (201, 304, 316L, 321, 904L.) ,Duplex steel etc.

4. The length is 5.8 meters or 2.9 meters to fit container. From 100-6000mm

5. Outside diameter From 29-1300mm (Normal diameter is in the below table)

6. Connection type: Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

7. Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc.

8. Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.

9. Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical, Architecture & Construction etc.




Johnson Type Continuous Slot VWire Screen Pipe Information:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5 (Widthxheight) ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5

2.2x3.5

(WxH)

ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8

2.2x3.5

(W x H)

ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8

2.2x3.5

(W x H)

ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45

3.2x6.0

(W x H)

ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9

2.3x3.5

(W x H)

ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2

3.0x5.0

(W x H)

ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46

3.2x6.0

(W x H)

ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9

2.2x3.5

(W x H)

ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5

3.0x4.6

(W x H)

ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48

3.2x6.0

(W x H)

ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2

3.0x5.0

(W x H)

ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8

3.0x5.0

(W x H)

ø4.0MM×59
16 426 1.0 2.9 >80 37.5

3.0x5.0

(W x H)

ø4.0MM×54

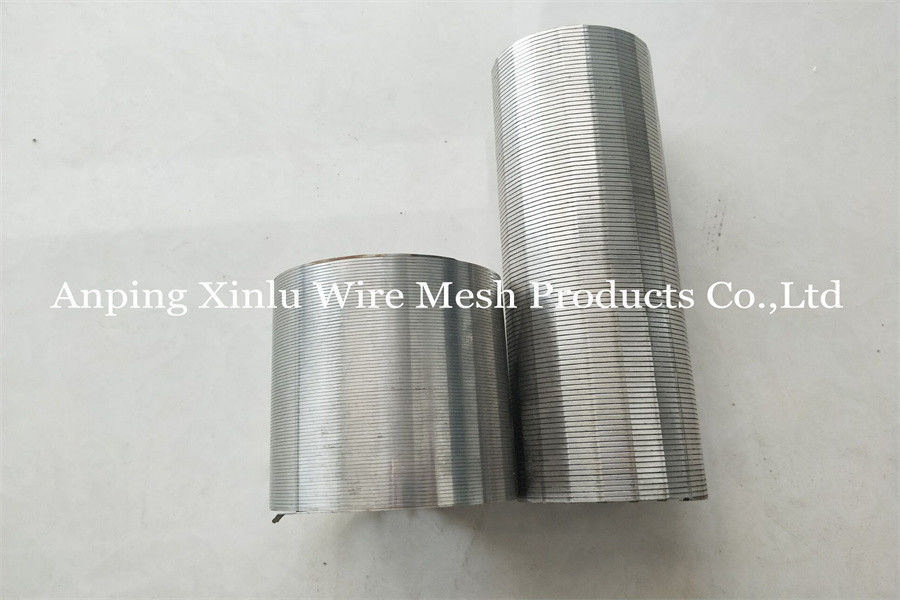

Johnson Type Continuous Slot VWire Screen Pipe Pictures:

Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 0Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 1Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 2Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 3

Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 4Stainless Steel Johnson V Wire Screen Pipe  6" Continuous Slot Flow Rate 5



Product Tags: continuous slot johnson v wire screen pipe, flow rate johnson wire screen, slotted johnson wire screen tube
