Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm

Large Image : Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm

Product Details:

Place of Origin:	Anping County, Hebei Province, China
Brand Name:	Anping XinLu Wire Mesh Products Co.,Ltd
Certification:	ISO
Model Number:	XL- V Wire Screen Pipe - 036

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	Negotiable
Packaging Details:	wooden, pallet
Delivery Time:	5-7days
Payment Terms:	T/T, L/C
Supply Ability:	800pcs / 15days

Contact Now

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm

Description

Filter Name:	Sand Control 8-5/8" 219mm Johnson V Wire Water Screen Pipe	Material:	Low Carbon Galvanized
Long:	2900mm	Diameter:	8-5/8" 219mm
V Wire:	3x4.6mm	Round Support Rod ::	ø3.8mm
Surface:	Glavanized, Or Painting Silver	Usage:	In Water Well For Sand Control
End Joint:	Bevel Welded Rings	Feature:	Corrosion Resistance
Welded Type:	V Wire Wrapped Welded	Tag:	8-5/8" V Wire Water Wire Screen ; 219mm Water Wire Screen Pipe ; Bevel Welded Rings V Wire Well Screen Pipe
Highlight:	Low Carbon Galvanized Vee Wire Screen , Sand Control V Wire Screen Filter , 219mm Johnson Wire Wrapped Pipe

8-5/8" Low Carbon Galvanized Johnson V Wire Water Well Screens For Sand Control

Water wire screen,also called wedge wire screen pipe,wedge wire filter screen,Johnson screen pipe, johnon wire screen, johnson screen tube, johnson filter tube, wedge wire strainer pipe, wire wrapped screen, wound screen, slotted screen.

Water Well Screen is welded by winding strip winding bracket, it has high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screening filter device. Water well screen is processed by fusion welding process, seam screen surface has the advantages of high screening efficiency, low maintenance requirements, long service life.

Due to there are many various specifications and sizes, So can't supply you quotation here, specific specifications can be directly contact us.

Looking forward to cooperating with you.

Johnson V Wire Water Wire Screen Pipe Advantages:

1. Its uniform filter slots and high precision ensure the effective retention of filter medium.
2. Water wire screen has a larger circulation area compared with other screens.
3. The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4. Water wire screen has high mechanical strength and can withstand high pressure drop.
5. Water wire screen is made of superior stainless steel wires (Such as: AISI 304 and 316L) AND low carbon galvanized with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
6. Water wire screen adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
7. Water wire screen maintains stable filtration accuracy and can be reused repeatedly and work reliably.

Johnson V Wire Water Wire Screen Pipe Information:

Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.2x3.5 (Widthxheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.2x3.5 (WxH)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.2x3.5 (W x H)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.2x3.5 (W x H)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.2x6.0 (W x H)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3x3.5 (W x H)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0x5.0 (W x H)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.2x6.0 (W x H)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.2x3.5 (W x H)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0x4.6 (W x H)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.2x6.0 (W x H)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0x5.0 (W x H)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.0x5.0 (W x H)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.0x5.0 (W x H)	ø4.0MM×54

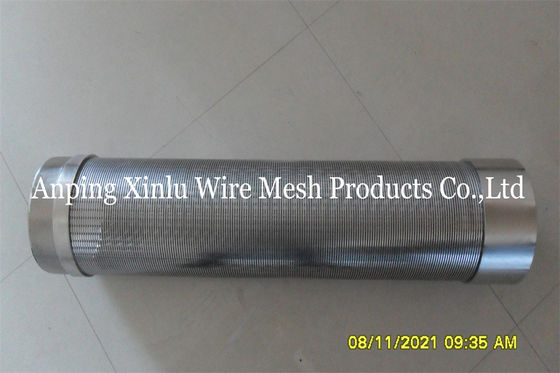

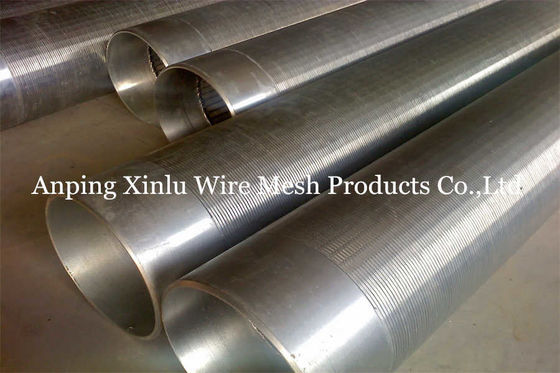

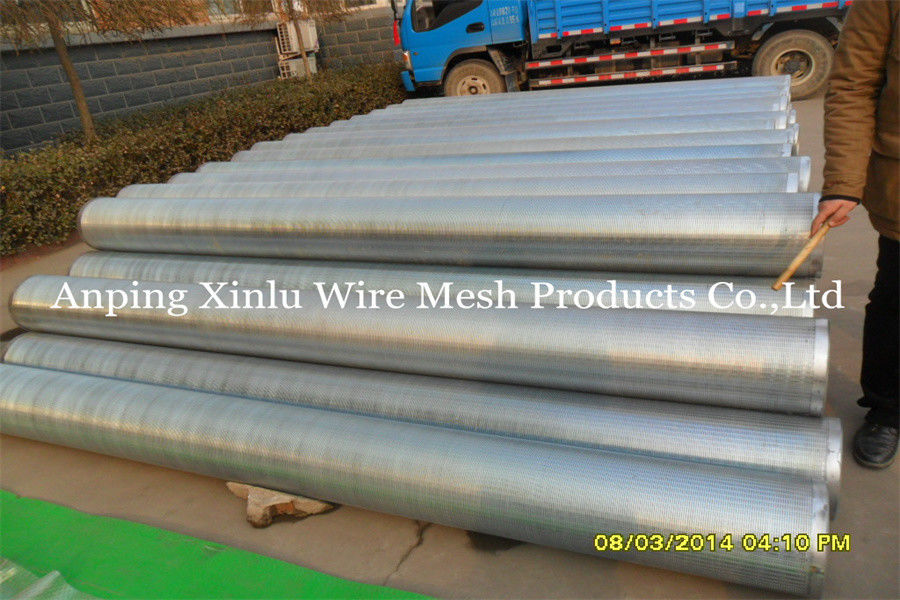

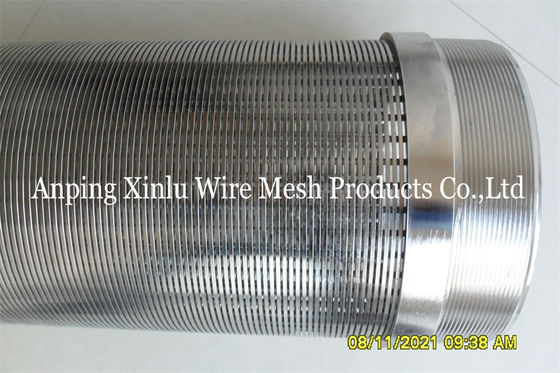

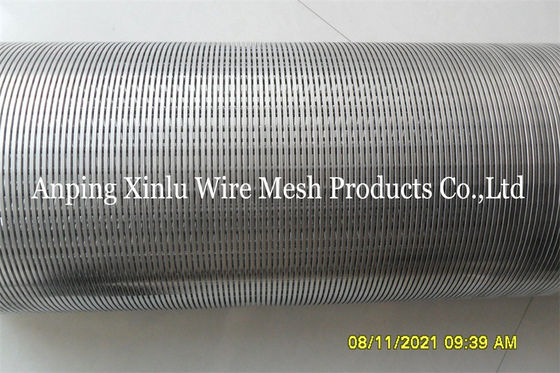

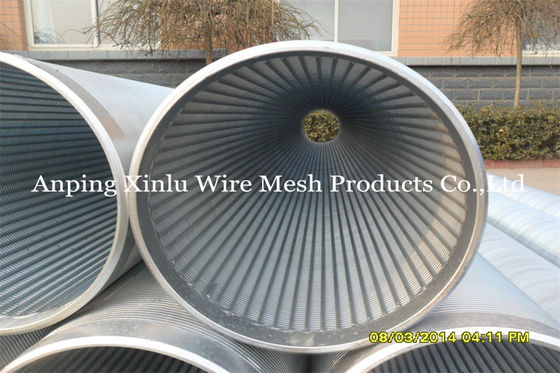

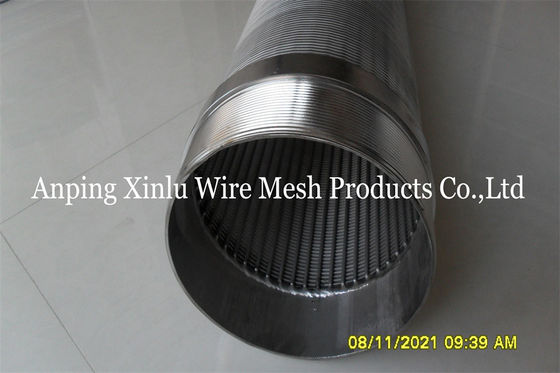

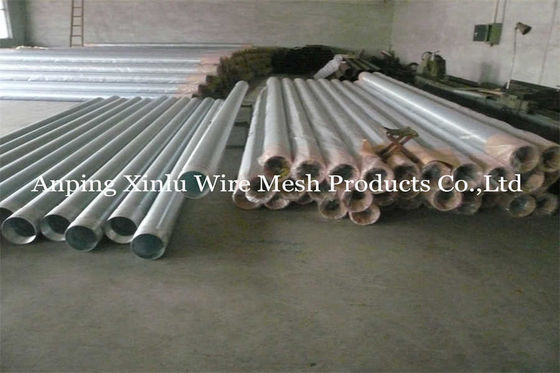

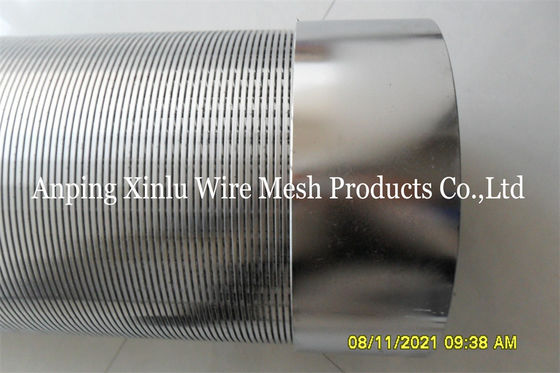

Johnson V Wire Water Wire Screen Pipe Pictures:

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 0

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 2

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 3

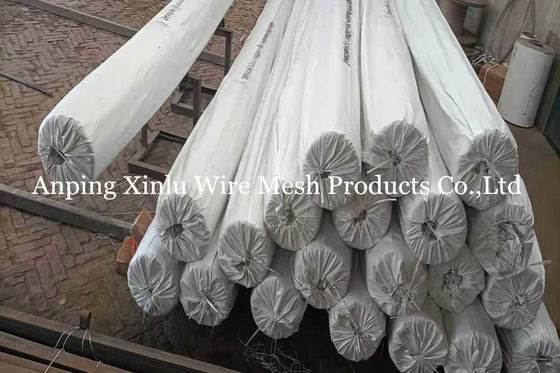

Johnson V Wire Water Wire Screen Pipe Package

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 4

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 5

Low Carbon Galvanized Johnson V Wire Screen Pipe Sand Control 219mm 6

Product Tags: 8-5/8" v wire water wire screen ; 219mm water wire screen pipe ; bevel welded rings v wire well screen pipe

Tag:

Non Magnetic V Wire Screen Pipe,

Sand Control Wedge Wire Screen Filter,

Dewatering Wedge Wire Screen Filter
