3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling

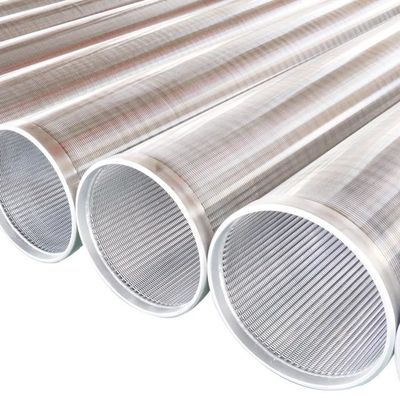

Large Image : 3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling

Product Details:

Place of Origin:	Anping County, Hebei Province, China
Brand Name:	Anping XinLu Wire Mesh Products Co.,Ltd
Certification:	ISO
Model Number:	XL- V Wire Screen Pipe - 038

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	Negotiable
Packaging Details:	wooden, pallet
Delivery Time:	5-7days
Payment Terms:	T/T, L/C
Supply Ability:	800pcs / 15days

Contact Now

3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling

Description

Filter Name:	V Wire Wrapped Continuous Slot Johnson Wire Screen	Material:	Stainless Steel Grade 304
Long:	3000mm	Diameter:	8" (219mm)
V Wire:	3.2x6mm	Round Support Rod ::	ø5mm
Surface:	Polished	Usage:	In Water Well For Sand Control
End Joint:	Bevel Welded Rings	Feature:	Corrosion Resistance
Welded Type:	V Wire Wrapped Welded	Tag:	Continuous Slot V Wire Wrapped Screen ; Deep Well Drilling V Wire Wrapped Screen ; Continuous Slot Vee Wire Screen
High Light:	Vee Wire Wrapped Screen Pipe , Continuous Slot Wire Wrapped Screen Pipe , Drilling Vee Well Screen Pipe

3.2x6mm V Wire Wrapped Continuous Slot Johnson Wire Screen Pipe

V Wire Wrapped Continuous Slot Johnson Wire Screen,also called Johnson screen pipe, johnson screen tube, johnson wire screen, johnson filter screen, v wire strainer pipe, V Wire Wrapped Screens,Wedge wire screen, Wound screen, Slotted screen,Vee wedge wire screen filter strainers,deep well water pipes.

Wire Wrapped Continuous Slot Johnson Wire Screen with high quality are manufactured by a or the v wedge shaped wire around an internal array of longitudinal support rods. With the advanced all-weld technology, the each interesting point makes construction robust and mechanical performance excellent. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening and larger filtering area, hence the screen allows water(oil) to enter your well freely and smoothly in ample quantities, while keeps sand and gravel out of the well. The slots can be changed according to different strata.

V Wire Wrapped Continuous Slot Johnson Wire Screen Pipe Sizes:

Material: stainless steel wire or galvanized wire.
Surface profile: triangle wire.
Support profile: triangle wire, round bar and wedge wire.
Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Maximum collapse strength: 150 bar.
Maximum tensile strength:40 tons.
Connection type: Bevel welded rings; male/female threaded coupling.
Wire Size: 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm etc. Also can make other sizes as your request.
Support rods size: ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

V Wire Wrapped Continuous Slot Johnson Wire Screen Pipe Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH(BAR)	TENSILE STRENGTH(TON)	WRAP WIRE (WIDTH*HEIGHT)(MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	4.0MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.2MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.2MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.8MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.2MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.2MM/59

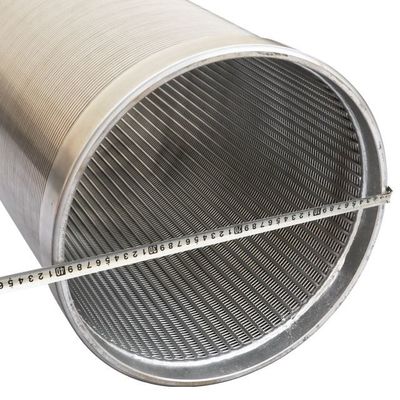

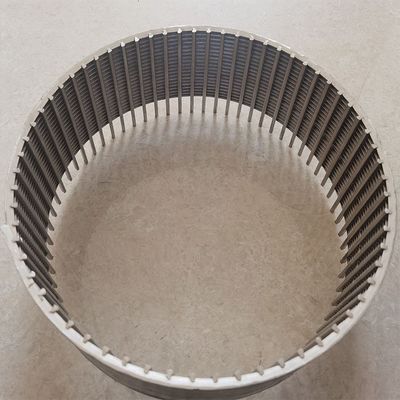

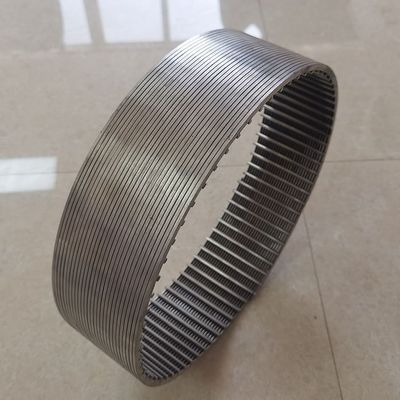

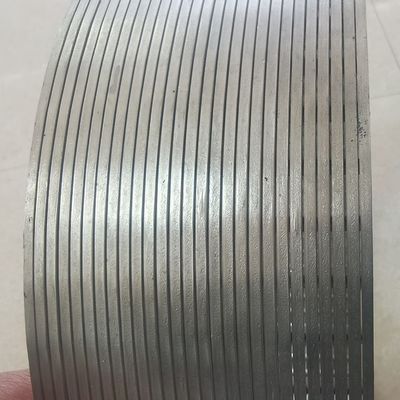

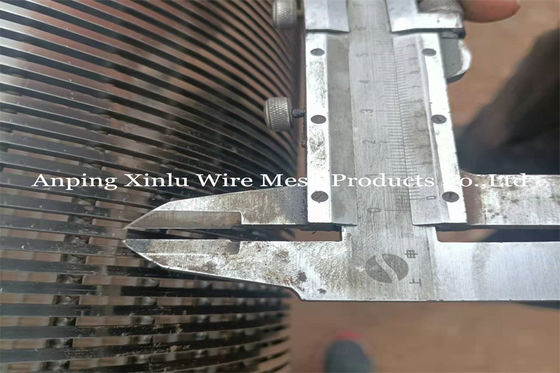

V Wire Wrapped Continuous Slot Johnson Wire Screen Pipe Pictures:

3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling 0

Johnson V Wire Water Wire Screen Pipe Package

3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling 4

3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling 5

3.2x6mm Continuous Slot Vee Wire Wrapped Screen Pipe For Deep Well Drilling 6
