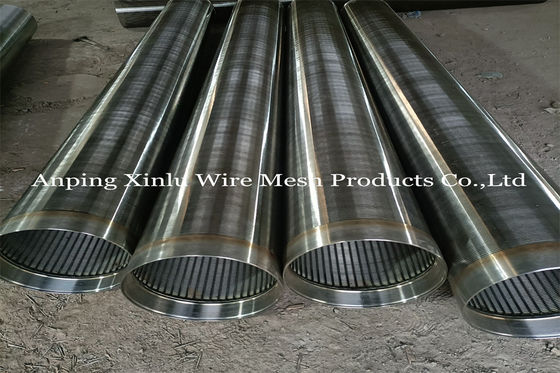

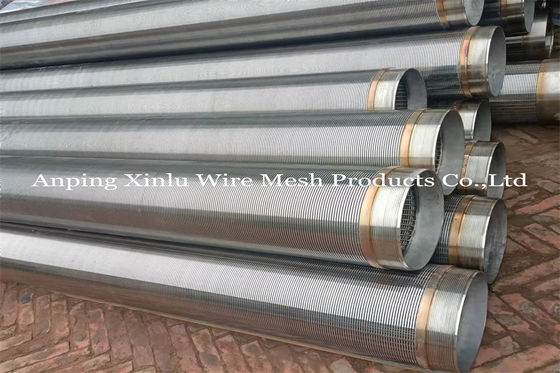

Diameter 300 x 1m Vee 1.0mm Slot Johnson Water Wire Screen With Male Female Threaded
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,
Johnson Wire Water Well Screen Pipe Material:
304 stainless steel (316L, 2205,904L and other materials can be)
Johnson Wire Water Well Screen Pipe Specifications:
Various specifications can be customized according to customer requirements.
Johnson Wire Water Well Screen Pipe Features:
stainless steel fused wire winding screen barrel is composed of bars and screen bars, the gap size is accurate, high filtration accuracy;Strong structure, high temperature and corrosion resistance;Can be used for a variety of media filtration.
Xinlu Wedge Wire Screen Products company independently developed, production of stainless steel fully welded wire winding screen, used in power plant, mixed bed, chemical industry, oil well, water well, natural gas well, sand control, filtration, metallurgy, papermaking, environmental protection, desalination and other industries of all kinds of coarse and fine filtration.Sophisticated production is our basic requirement, different process, of course, different quality, and the general production of rough, low price products are different.
The stainless steel johnson wire water well screen tube produced by xinlu wedge wire screen products company is made of stainless steel wire with special section, which is wound and welded with advanced technology on special equipment.It has the characteristics of simple structure, easy to use, high strength, light weight, strong corrosion resistance, large filtration area, good seepage performance and so on.Welcome customers to send drawings customized.
Johnson Wire Water Well Screen Pipe Range:
1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
2. Diameter: 25-2000mm (customized)
3. Slot: min 0.05mm
4. Length: 100-6000mm
5. Flow Type: FITO, FOTI
6. Ends:

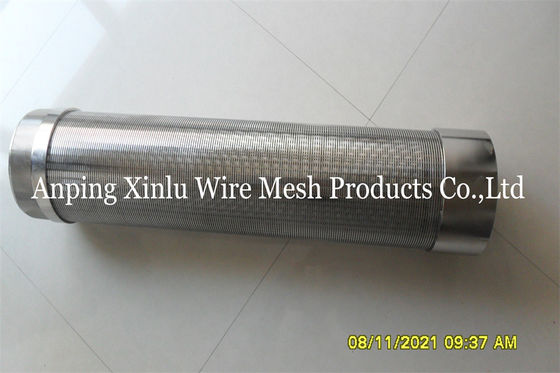

Welded rings/Plain beveled ends;

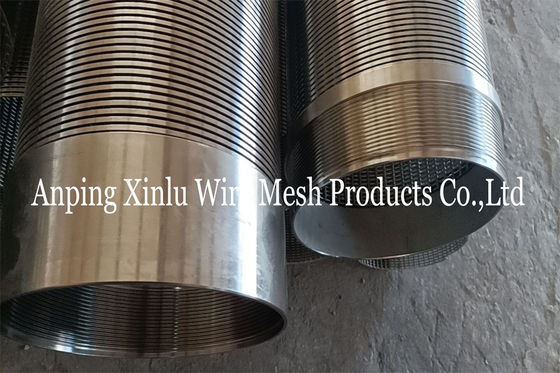

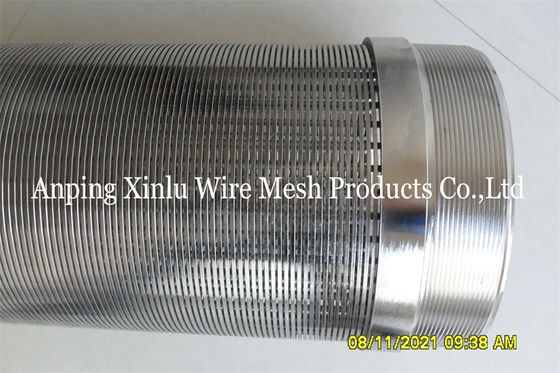

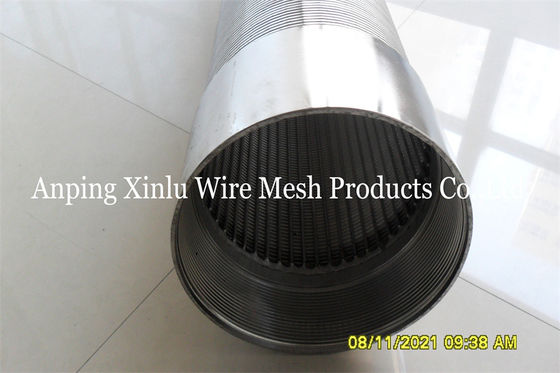

Male/female threaded coupling: API STC, PT NPT, BSP, G;
Flange ;
Closed up,
Open ends etc.
7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Quality assurance: Johnson Wire Water Well Screen Pipe
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
Package: Stainless Steel Wedge Wire Strainer Pipe
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Johnson Wire Water Well Screen Pipe Specification
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE
(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
>22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
>28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
>33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>60 |
39.5 |
3.0x5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
>120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
>80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Johnson Wire Water Well Screen Pipe Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Product Tags: 1.0mm slot water wire screen ; male female threaded water wire screen ; 1.0mm slot vee wire screen
