Stainless Steel Johnson Tube Slot Water Well Wire Screen Tube
Product Description:

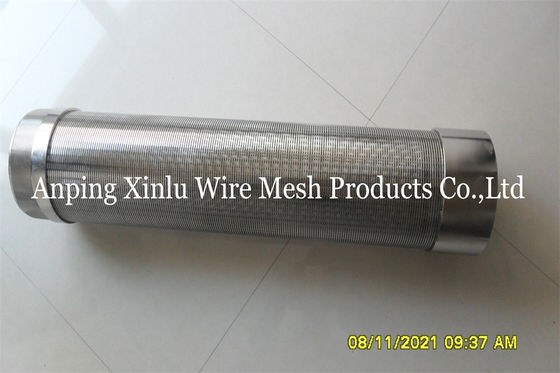

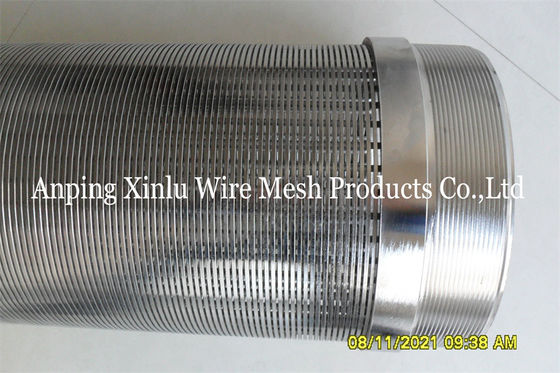

Stainless Steel Johnson Tube Slot Water Well Wire Screen Tube is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Specificarion:
| Profile wire |
Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
|
| Diameter(mm) |
89mm ( Less than 1027mm)
|
Length(mm) |
5500mm, (Less than 6000mm long) |
| Open area |
Large open area
|
Efficiency |
High |
| Material |
Stainless steel 304 316
monel, hastelloy inconel nickel etc..
|
Function |
liquid filtering / liquid solid separation |
| Quality control system |
Factory own control |
Cleaning way |
Filter from outside to inside, easy to clean |
| Support rods |
Square shape,
Width(mm): 2.00;
Height(mm): 2.30 3.00
|
End connection |
Commen fittings, NPT ,BSP end fittings, calculate price seperately |
| Min slot size |
50 micron
|
Thickness |
3-10mm |
| Length |
5500mm
|
Filter Rating |
up to 90% |
| Color |
Silver(metal original color)
|
Technique |
Belgium welding |
Characteristic:
Stainless Steel Johnson Water Well Wire Screen Tube have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
Johnson Wire Water Well Screen Pipe Range:
1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
2. Diameter: 25-2000mm (customized)
3. Slot: min 0.05mm
4. Length: 100-6000mm
5. Flow Type: FITO, FOTI

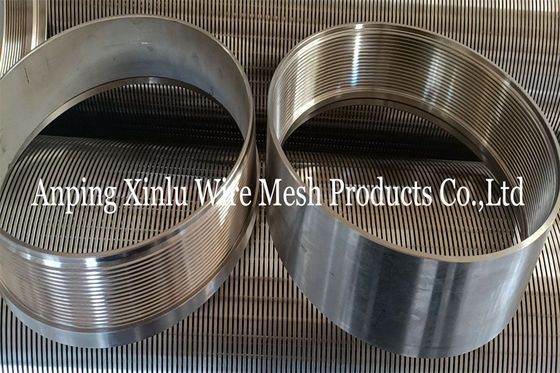

6. Ends:
Welded rings/Plain beveled ends;

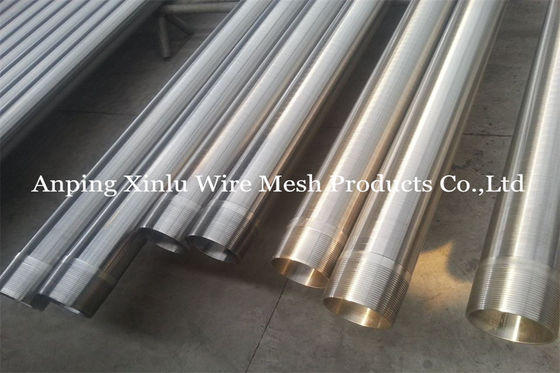

Male/female threaded coupling: API STC, PT NPT, BSP, G;
Flange ;
Closed up,
Open ends etc.
7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Quality assurance: Johnson Wire Water Well Screen Pipe
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
Package: Stainless Steel Wedge Wire Strainer Pipe
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Johnson Wire Water Well Screen Pipe Specification
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE
(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
>22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
>28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
>33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>60 |
39.5 |
3.0x5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
>120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
>80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Johnson Wire Water Well Screen Pipe Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
