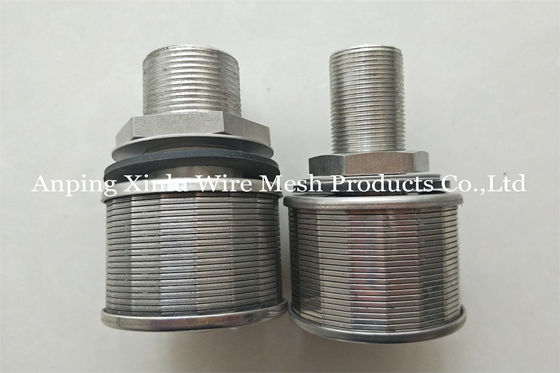

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm
Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm

Large Image :  Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, FORM E
Model Number: XL - Water Filter Nozzles - 38
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable according to the specification
Packaging Details: wood case
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 1000pcs/20days

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm

Description
Name: Water Filter Nozzle, Wedge Wire Strainer Nozzle, 1.0ton Johnson Screen Nozzle Material: SS316L, 304, 321, Duplex Stainless Steel, Hastelloy
Diameter: 45mm 53mm 57mm 82mm Filter Height L1: 25-80mm
Slot: 0.2mm Over Length: 90-130mm
Wedge Wire: Profile Wire: 1.5x2mm, Support Wire:1.8x2.5mm End Cap: With Bulb Or Flat
End Connection: M24 Or M32 Accessories: One Stainless Steel Nuts, One Rubber Gaskets, One Stainless Gasket
Weight: 0.2-0.5kg/pcs Application: Filters,Water Treatment
Type: Filter Nozzle Used: Water Input Device, Water Distributor And Resin Trans
Flow Rate: 0.5 Ton, 1 Ton, 1.5 Ton, 2.0 Ton , 3.0 Ton And 5.0Ton High Light Tag: Wedge Wire Water Filter Nozzles ; Slot 0.25mm Water Filter Nozzles ; Johnson Strainer Nozzle
High Light:

Stainless Steel Slot Water Filter Nozzles

,

Wedge Water Screen Nozzle

,

0.25mm Water Purifier Nozzle



Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm



Water Filter Nozzle's other called:

Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

2.0Ton Stainless steel 316L Johnson Filter Nozzle Quickly Details:

Filter Nozzle
Code: FY-XL-DT-57-C 0.25 / 55 / 120 / M32 / Flow Area 2 Ton
Material : SS316L
Diameter: 57mm
Slot: 0.25 mm
Height (L1): 55mm
End Connection: M32
CAP with Bulb
Total length: 120mm
Accessories: 01 Stainless Steel Nuts of assembing for nozzle 316L M24,
with One rubber gasket , and stainless steel gasket



Xinlu Screen Nozzles are made of vee-wire wrapped around support rods in a helix pattern to form continuous slots. Rigid construction and evenly distributed slots make the screen nozzle ideal for use as collectors and distributors in material retention and flow rate control.

Stainless Steel Water Treatment Wedge Wire Filter Screen Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.



Water Filter Nozzle Types:


a. Single head V wire tube flowing filter nozzle
b. Double head V wire tube flowing filter nozzle
c. Long hand flowing pipe type flowing filter nozzle
d. Large long hand flowing pipe type flowing filter nozzle
e. Plate type flowing filter nozzle



Characteristic stainless steel water filter nozzle:


Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 0

Model Ton Slot Opening Size Dimensions Flow area with 0.2mm slot opening (mm2)
D H(L1) L M
FY-XL-DT-45-A 0.5 0.2-0.5 45 25 90 25 280
FY-XL-DT-45-B 0.2-0.5 45 35 100 25 380
FY-XL-DT-45-C 0.2-0.5 45 45 110 25 550
FY-XL-DT-45-D 0.2-0.5 45 35 55 25 380
FY-XL-DT-45-E 0.2-0.5 45 45 65 25 550
FY-XL-DT-53-A 1.0 0.2-0.5 53 35 100 25 450
FY-XL-DT-53-B 0.2-0.5 53 45 110 25 580
FY-XL-DT-53-C 1.5 0.2-0.5 53 55 120 32 700
FY-XL-DT-57-A 2.0 0.2-0.5 57 35 100 32 530
FY-XL-DT-57-B 0.2-0.5 57 45 110 32 680
FY-XL-DT-57-C 0.2-0.5 57 55 120 32 830
FY-XL-DT-70-A 3.0 0.2-0.5 70 40 105 32 650
FY-XL-DT-70-B 5.0 0.2-0.5 70 55 115 32 810

Note: Our Nozzles are most commonly made with 304 or 316L stainless steel.
You can choose a rubber gasket, lockable nut on the nozzle.
Fitting can be NPT thread, M20 Threaded or Rings

Product Feature:


Metal construction.
Excellent roundness.
Great flow area.
High mechanical load capacity.
High precision slot width.
Pressure and temperature resistance.
Anti-corrosion, anti-aging.
Safe, reliable.
Environment friendly.
Easy installation.
Long service time.



Application:


The filter nozzle used widely in filter industry, used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.



OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 1

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 2Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 3Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 4

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 5

Wedge Wire Wrapped Screen Water Filter Nozzles Stainless Steel Slot 0.25mm 6
