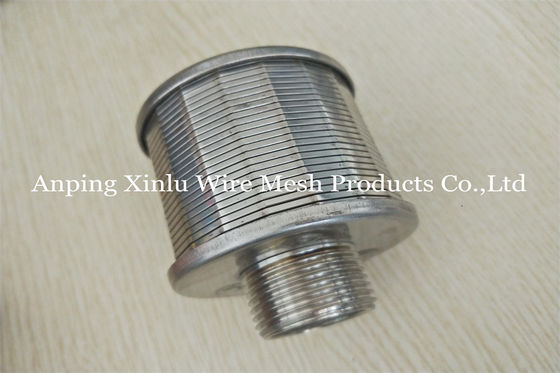

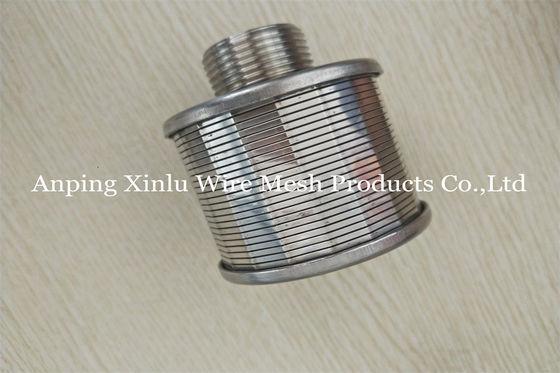

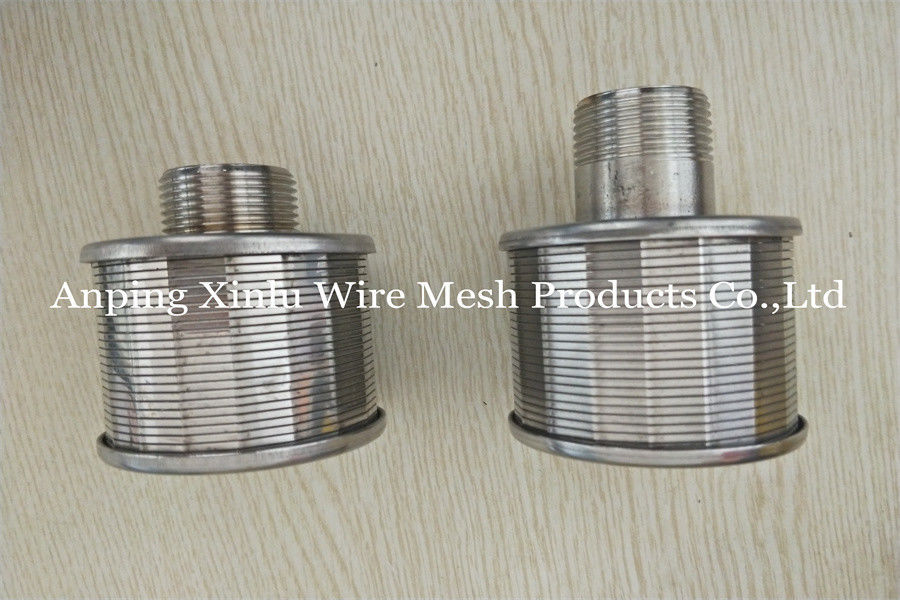

1Ton NPT / G1" Quick Connect Wedge Wire Screen Nozzle Water Ion Exchange Strainer
Product Description:
Water Filter Nozzles are designed to provide efficient filtration of water in various applications, such as water ion exchange, sand filter, activated carbon filter, demineralized, power plant, filter tank, resin trap, and water distributor. Our nozzles are constructed with durable wedge wire strainer that can withstand up to 200psi burst pressure. We offer a variety of screens with 82mm diameter, including quick connect screen nozzle, double head screen nozzle, big head screen nozzle, long neck screen nozzle, and double flow screen nozzle. Thread types, including BSP, NPT, and G1/4", are also available for our two inch nozzles.
| Model |
Ton |
Slot Opening Size |
Dimensions |
Flow area with 0.2mm slot opening (mm2) |
| D |
L1 |
L |
M |
| FY-XL-DT-45-A |
0.5 |
0.2-0.5 |
45 |
25 |
90 |
25 |
280 |
| FY-XL-DT-45-B |
0.2-0.5 |
45 |
35 |
100 |
25 |
380 |
| FY-XL-DT-45-C |
0.2-0.5 |
45 |
45 |
110 |
25 |
550 |
| FY-XL-DT-45-D |
0.2-0.5 |
45 |
35 |
55 |
25 |
380 |
| FY-XL-DT-45-E |
0.2-0.5 |
45 |
45 |
65 |
25 |
550 |
| FY-XL-DT-53-A |
1.0 |
0.2-0.5 |
53 |
35 |
100 |
25 |
450 |
| FY-XL-DT-53-B |
0.2-0.5 |
53 |
45 |
110 |
25 |
580 |
| FY-XL-DT-53-C |
1.5 |
0.2-0.5 |
53 |
55 |
120 |
32 |
700 |
| FY-XL-DT-57-A |
2.0 |
0.2-0.5 |
57 |
35 |
100 |
32 |
530 |
| FY-XL-DT-57-B |
0.2-0.5 |
57 |
45 |
110 |
32 |
680 |
| FY-XL-DT-57-C |
0.2-0.5 |
57 |
55 |
120 |
32 |
830 |
| FY-XL-DT-70-A |
3.0 |
0.2-0.5 |
70 |
40 |
105 |
32 |
650 |
| FY-XL-DT-70-B |
5.0 |
0.2-0.5 |
70 |
55 |
115 |
32 |
810 |
Features:
- Product Name: Water Filter Nozzles
- Material: Stainless Steel 304, 316L, 321, Hastelloy
- Diameter: 45mm, 53mm, 57mm, 76mm, 82mm
- Burst pressure: 200psi
- Flow Rate: 0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton
- Threaded size: M24, M32, 3/4"NPT, 1"NPT, G1"
- Features: Double Head Screen Nozzle, 82mm Screen Nozzle, Double Head Screen Nozzle
Technical Parameters:
| Overall Length |
Thread Type |
| 3-1/8" |
BSP, NPT, G1/4" |
| Size |
Pressure |
| Standard |
0.5-2.5MPa |
| Collapse pressure |
Burst pressure |
| 300PSI |
200psi |
| Filter Precision |
Flow Rate |
| 50-300μm |
0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton |
| Screen Length |
Threaded size |
| 1-1/2: |
M24, M32, 3/4"NPT, 1"NPT, G1" |
Applications:
Xinlu Wire Mesh offers a great variety of water filter nozzles with the Model Number of DN38-108. These high-quality nozzles include Quick Connect Screen Nozzle, Double Head Screen Nozzle, Big Head Screen Nozzle, Long Neck Screen Nozzle, Double Flow Screen Nozzle, and 82mm screen nozzle, double flow filter nozzle, wedge wire strainer nozzle. They come with different screen length and thread size such as M24, M32, 3/4" NPT, 1" NPT, G1" for a wide range of applications, such as water ion exchange, sand filter, activated carbon filter, de-mineralization, power plant, filter tank, resin trap, and water distributor.
These nozzles have an economical and easily installed wedge wire construction. They are certified with FORM E and CO, and the minimum order quantity is 30pcs. The pricing range is from 5-18.9$/pcs and the delivery time is 7-10 days. The payment terms are T/T and the supply ability is 3000pcs/month.
Customization:
Customized Water Filter Nozzles
Brand Name: Xinlu Wire Mesh
Model Number: DN38-108
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 30pcs
Price: 5-18.9$/pcs

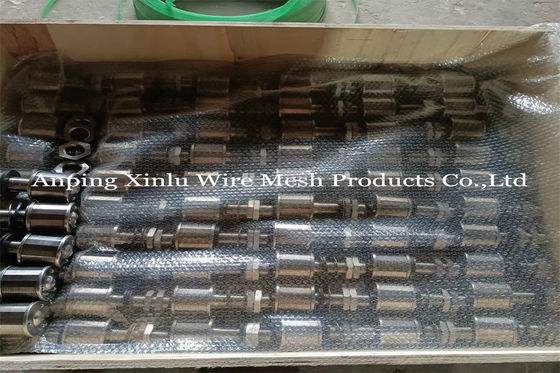

Packaging Details: Bubble pack, carton, wooden case, pallet
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 3000pcs/month
Pressure: 0.5-2.5MPa
Filter Precision: 50-300μm
Collapse pressure: 300PSI
Material: Stainless Steel 304, 316L, 321, Hastelloy
Flow Rate: 0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton
We specialize in customized wedge wire strainer nozzle, Long Neck Screen Nozzle, and Johnson Screen Nozzle.
Support and Services:
Technical Support & Services for Water Filter Nozzles
At Water Filter Nozzles, we are committed to providing our customers with the highest level of technical support and service. Our team of experienced professionals offers a variety of services to ensure that your Water Filter Nozzles are installed correctly and working properly.
Installation Services
We provide installation services for all our Water Filter Nozzles products. Our team of certified technicians can help you install your Water Filter Nozzle quickly and correctly, ensuring that your system is up and running as soon as possible.
Maintenance and Repair Services
We provide regular maintenance and repair services for all our Water Filter Nozzles products. Our experienced technicians can help diagnose any issues and provide the necessary repairs to keep your system running smoothly.
Training and Education
We provide training and education services to help you get the most out of your Water Filter Nozzle. Our team of experienced professionals can provide you with the knowledge and skills necessary to use and maintain your system correctly.
Customer Support
We provide customer support to help you with any questions or concerns you may have about your Water Filter Nozzle. Our customer service team is available 24/7 to answer any questions you may have.
Packing and Shipping:
Packaging and Shipping for Water Filter Nozzles
When you purchase a Water Filter Nozzle from us, it will be securely packed in a corrugated box or a bubble wrap. We also use air cushions, as needed, to ensure that the product reaches you in perfect condition.
We ship all of our products through USPS, FedEx or UPS. All orders are shipped within 1-2 business days.
We take great care when packaging and shipping our products and strive to ensure that they arrive in perfect condition. If you ever receive a damaged item, please contact us and we will do our best to resolve the issue.
FAQ:
Q1: What is the Brand Name of the Water Filter Nozzles?
Answer: The Brand Name of the Water Filter Nozzles is Xinlu Wire Mesh.
Q2: What is the Model Number of the Water Filter Nozzles?
Answer: The Model Number of the Water Filter Nozzles is DN38-108.
Q3: Where is the Place of Origin of the Water Filter Nozzles?
Answer: The Place of Origin of the Water Filter Nozzles is Anping County Xinlu Wire Mesh Products Co.,Ltd.
Q4: What is the Certification of the Water Filter Nozzles?
Answer: The Certification of the Water Filter Nozzles is FORM E, CO.
Q5: What is the Minimum Order Quantity of the Water Filter Nozzles?
