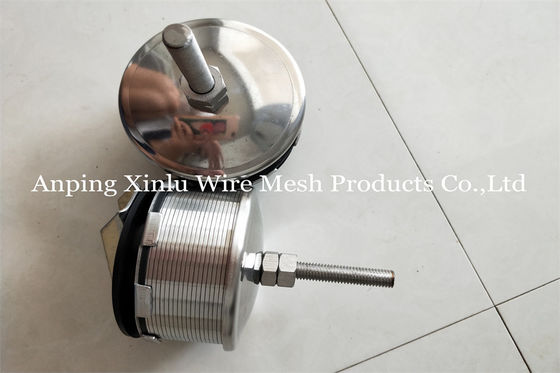

82mm Double Flow Johnson Screen Nozzle Length 1-3/8" 300PSI Collapse Pressure
| Model |
Slot Opening Size |
Dimensions |
Flow area with 0.2mm slot opening (mm2) |
| D |
L1 |
D1 |
L |
| FY-XL-SS-82-A |
0.25/0.4 |
82 |
50 |
50 |
130 |
1072 |
| FY-XL-SS-82-B |
0.25/0.4 |
82 |
50 |
50 |
130 |
1072 |
| FY-XL-SS-53-A |
0.25/0.4 |
53 |
33 |
36 |
110 |
485 |
| FY-XL-SS-53-B |
0.25/0.4 |
53 |
33 |
35 |
110 |
485 |
Product Description:
Water Filter Nozzles are economical solutions for various water filtration needs. They are designed with a wedge wire construction for superior performance and are constructed with stainless steel 304, 316L, 321 or Hastelloy materials. These nozzles are easily installed and perform well with a minimum backwash flow rate of 6-1/2 GPM to 12-1/2 GPM per nozzle. Moreover, the weight of each Water Filter Nozzle ranges from 0.2 kg to 0.5 kg. It is also available in BSP, NPT and G1/4 thread types. The wedge wire strainer nozzle, Johnson screen nozzle and 1 Ton strainer nozzle are the most popular choices for water filtration applications.
Features:
- Product Name: Water Filter Nozzles
- Advantage: Economical, Easily Installed, Wedge Wire Construction
- Flow Rate: 0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton
- Collapse pressure: 300PSI
- Weight: 0.2Kg-0.5Kg/pcs
- Size: Standard
- Specialty: 1Ton Strainer Nozzle, 0.5 Ton Filter Nozzle, Long Neck Screen Nozzle
Technical Parameters:
| Parameter |
Value |
| Flow Rate |
0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton |
| Weight |
0.2Kg-0.5kg/pcs |
| Advantage |
Economical. Easily Installed,wedge Wire Construction |
| Threaded size |
M24, M32, 3/4 |
| Screen diameter |
2 |
| Accessories |
One Stainless Steel Nut, One Stainless Steel Gasket, One Rubber Gasket |
| Thread Type |
BSP, NPT, G1/4 |
| Nozzle Type |
Quick Connect Screen Nozzle, Double Head Screen Nozzle, Big Head Screen Nozzle, Long Neck Screen Nozzle, Double Flow Screen Nozzle |
| Collapse Pressure |
300PSI |
| Material |
Stainless Steel 304, 316L, 321, Hastelloy |
Applications:
Water Filter Nozzles produced by Anping County Xinlu Wire Mesh Products Co.,Ltd are of superior quality and boast the brand name Xinlu Wire Mesh. The model number is DN38-108, and these nozzles are certified with FORM E, CO. The minimum order quantity is 30pcs, and the price range is from 5-18.9$/pcs. Packaging details include bubble pack, carton, wooden case, pallet, and the delivery time is 7-10days. Payment terms are T/T, the supply ability is 3000pcs/month, the weight ranges from 0.2Kg-0.5kg/pcs, the screen diameter is 2, and the size is standard. Accessories include one stainless steel nut, one stainless steel gasket, and one rubber gasket. The overall length is 3-1/8. The water filter nozzles are double head screen nozzle, also known as Johnson screen nozzle.
Customization:
Customized Water Filter Nozzles
Brand Name: Xinlu Wire Mesh
Model Number: DN38-108
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 30pcs
Price: 5-18.9$/pcs
Packaging Details: Bubble pack, carton, wooden case, pallet
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 3000pcs/month
Flow Rate: 0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton
Screen diameter: 2
Advantage: Economical. Easily Installed,wedge Wire Construction
Diameter: 45mm, 53mm, 57mm, 76mm, 82mm
Application: Water Ion Exchange, Sand Filter, Activited Carbon Filter, Demineralizated, Power Plant, Filter Tank, Resin Trap, Water Distributor
Long Neck Screen Nozzle
The DN38-108 Long Neck Screen Nozzle is ideal for 0.5 Ton filter nozzle, water filter nozzle. It features a screen diameter of 2 and is available with a diameter of 45mm, 53mm, 57mm, 76mm, 82mm. The nozzle is economical and easily installed due to its wedge wire construction. It is used for water ion exchange, sand filter, activated carbon filter, demineralizated, power plant, filter tank, resin trap and water distributor.
Support and Services:
Water Filter Nozzles Technical Support and Service
We provide comprehensive technical support and service to ensure the proper functioning of your Water Filter Nozzles. Our technical support team is available to answer any questions you may have regarding installation, maintenance, and troubleshooting.
If you experience any difficulties with your Water Filter Nozzles, our technical team is available to assist you. We can provide step-by-step instructions for installation, as well as troubleshooting tips and advice for common problems. We also provide regular maintenance and troubleshooting check-ups to ensure your Water Filter Nozzles remain in optimal condition.
If you encounter any issues or need help with your Water Filter Nozzles, please contact our technical team by email, phone, or live chat. We will be happy to answer any questions you may have and provide you with the necessary support.
Packing and Shipping:
Packaging and Shipping of Water Filter Nozzles
Water filter nozzles are packaged in individual boxes, and each box is labeled with the appropriate product information. The boxes are then placed into larger shipping boxes with packing material to ensure the product arrives safely.
We use a variety of shipping methods to ensure the product arrives to the customer in the best condition possible. Depending on the destination, we use air freight, ground freight, or a combination of both. We also take extra precautions to ensure that our products are shipped securely and in a timely manner.
FAQ:
A: The Brand Name of Water Filter Nozzles is Xinlu Wire Mesh.
A: The Model Number of Water Filter Nozzles is DN38-108.
A: The Place of Origin of Water Filter Nozzles is Anping County Xinlu Wire Mesh Products Co.,Ltd.
A: The Minimum Order Quantity of Water Filter Nozzles is 30pcs.
A: The Price of Water Filter Nozzles is 5-18.9$/pcs.
