Filter Cartridges Wedge Wire Sand Control Johnson Screen Tube Spiral Wire Strainer Pipe For Pump Filtration

Filter Cartridges Wedge Wire Sand Control Johnson Screen Tube Spiral Wire Strainer Pipe For Pump Filtration

Product Description:

Water Well Screen Pipe is a special type of filter designed to provide superior filtration performance and long-term reliability. It is manufactured from high-quality stainless steel and other corrosion-resistant materials with precise slot size and various shapes. It is widely used in water supply and drainage, oil and gas, mining, chemical and other industries. The water well screen pipe features a Collaspe pressure of 300 PSI, and the package includes Transparent Plastic Bags Inside, Woven Bags Outside/ Bubble Bags/Wooden Case/Pallet/Carton. Besides, it has a wide range of thickness, from 5mm to 12mm, and all the products have passed ISO/API/CE/SGS certification.

Compared with other water well screen pipes, Johnson Wire Screen is more reliable and economic. It is used to control sand and reduce abrasion. Wedge wire filter tubes offer accurate slot size, high strength and high corrosion resistance. Stainless steel slotted wedge wire filter tubes are ideal for the filtration of acids, alkalis, solvents, and other corrosive liquids. Reverse rolled slot tubes have a large open area, high strength and wear resistance. Slot tube screen is a kind of filter element with high mechanical strength and excellent corrosion resistance. In addition, Trommel Screens, Static Screens, Intertank Screens, Conical Units, Filter Cartridges, Diatom Candle Filters, Header Laterals, Rotating Drum Screens, Watr Filter Nozzles, Resin Traps, Ion Exchange, Flat Screen, Screw Press Screen, Screen Basket, Distributor & Collector Laterals, Nozzle Screen, V Slot Tubes/cylinders, Flat Bed Panels, Sieve Bends /DSM Screens, Centrifuge Baskets, and Cylindrical Panels are also available for selection.

Whether you are looking for reliable water well screen pipes, Johnson Wire Screen, wedge wire filter tubes, stainless steel slotted wedge wire filter tubes, reverse rolled slot tube, slot tube screen, or other products, we have it all. Our Water Well Screen Pipe has a superior filtration performance and long-term reliability, and is certified by ISO/API/CE/SGS. Your satisfaction is our priority.



Features:

• Product Name: Water Well Screen Pipe
• Slot Size: 0.03mm To 10mm
• Screen type: Standard Screen, Pipe-based Screen, Small Diameter Free-flow Well Screens.low Carbon Steel Well Screen,304 Stainless Steel Screen, Low Carbon Steel Galvanized Screens, Wire Wrapped Rod Base All Welded Screen
• Length: 2.95m, 10ft, 5.85m, Up To 20foot Or Customized
• Slot mesh: 12-400
• Application: Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry
• Keywords: Oil Well Filtration Pipe, Wedge Wire Strainer Pipe, Wedge Wire Screen Pipe



Technical Parameters:

Parameter	Details
Wrapped wire	0.75x1.8mm(11S), 1x2mm(12S), 1.5x2mm, 1.5x2.5mm(18S/#63), 2x3mm, 2.2x3.5mm(#93), 2.2x4.5(28SB)2.5x4mm, 3x4.6mm(#118), 3.3x6.2mm(#130)
Length	2.95m, 10ft, 5.85m, Up To 20foot Or Customized
Surface Treatment	Electrolytic Polishing/ Pickling/Polished/Sand Blasting/Paint Coating
Thickness	5mm To 12mm
Size	1 Inch To 200inch
Pressure (PSI)	200
Fitting type	NPT, BSP, G, M, API, STC
Benefits	Economaical, Suitable For Most Applications, Precision Openings
Application	Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry

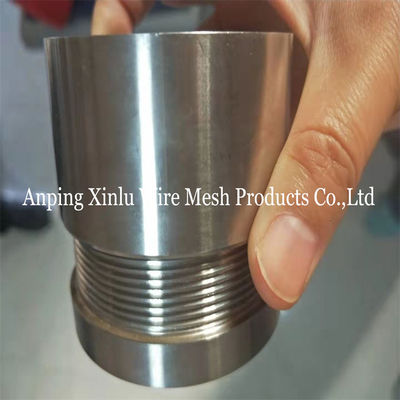

End Connection	Threaded NPT, BSP, NPS/Flange/Welded Rings/Plain/Plain Beveled Ends For Butt Welding



Applications:

Xinlu Company's Wire Wrapped Screen Pipe is an ideal product used for groundwater filtration, water well filter and water well screen pipe. It is made of high quality stainless steel and comes in a variety of sizes, including 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", etc. It has a low, medium, or high pressure rating and is certified by FORM E, CO. The collapse pressure is 300 PSI and the support rods are Φ2.5-6mm. The pressure rating is 200 PSI. The weight is 8-40kg/m2.

Xinlu Company offers competitive prices for their Wire Wrapped Screen Pipe, ranging from 30-120USD/m, depending on the specification. Minimum order quantity is 10pcs and supply capacity is 500pcs/month. Delivery time is 7-10 days and payment terms are T/T. Packaging options include transparent plastic bags, woven bags, cartons, wooden boxes, and pallets.

Xinlu Company's Wire Wrapped Screen Pipe is the perfect choice for a variety of water filtration applications. It is durable, reliable, and easy to install. The high quality stainless steel construction ensures that it will have a long life. The competitive prices and fast delivery time make it an ideal product for anyone looking for a quality water filtration solution.



Customization:

Water Well Screen Pipe
Brand Name: Xinlu Company
Model Number: 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", etc
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 10pcs
Price: 30-120USD/m, according to the specification
Packaging Details: Transparent plastic bags, woven bags, cartons, wooden boxes, pallets
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 500pcs/month
Certificate: ISO/API/CE/SGS
Temperature: Low/Medium/High
Pressure (PSI): 200
Application: Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry
Size: 1 Inch To 200inch
Features:
• Water well wound screens are used to keep out sand and sediment from water wells.
• Water Well Strainer Pipe are made of low carbon steel wire, stainless steel wire and other metal alloys.
• Water Well Sceren Pipe can be customized in a variety of sizes and lengths to meet your specific needs.
• Water Well Filter is perfect for water filtration and water treatment applications.
• Water Well Filter Pipe are designed to withstand the toughest conditions and environments.


Support and Services:

Technical Support and Service for Water Well Screen Pipe

Our team provides professional tech support and service for our water well screen pipe products. We have experienced technical personnel to help you solve any problems you may have with our products. We offer free technical support and troubleshooting for the lifetime of our products. We also have a team of experts on hand to answer any questions you may have.

We strive to make sure our customers have the best experience with our products and services. We will work with you to ensure that you are satisfied with our service and that you get the optimal performance from your water well screen pipe.

If you ever need any help or have any questions, please do not hesitate to contact us. We are always here to help.



Packing and Shipping:

Water Well Screen Pipe Packaging and Shipping:

Our water well screen pipes are typically shipped in wooden boxes or crates. The packing materials must be properly selected to ensure the safety of the pipes during transportation. Each box or crate is labeled with details such as product name, size, and quantity. The boxes or crates are then secured with straps or wire to prevent them from being opened during transit. Additionally, a packing list and instructions must be included in the package to ensure efficient unloading and installation.





.
