V Wire Wrapped Johnson Water Well Screen Pipe FITO Flow Type with Angles for Accurate Filtration
Product Description:

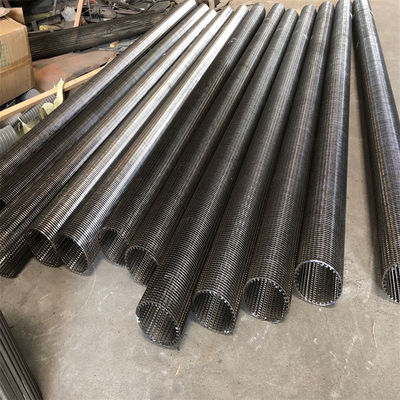

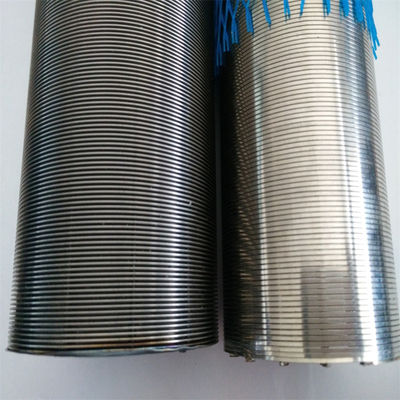

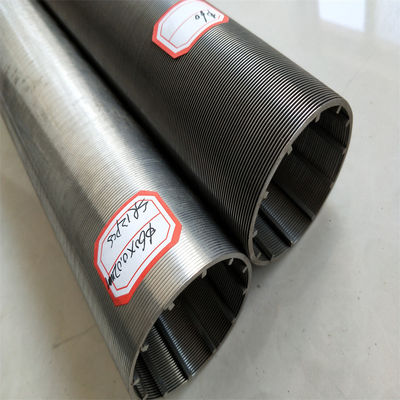

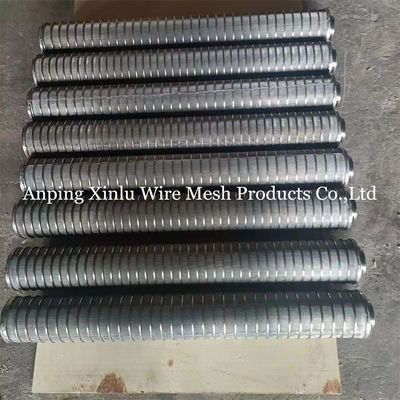

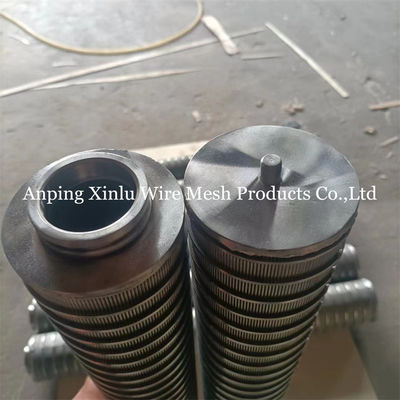

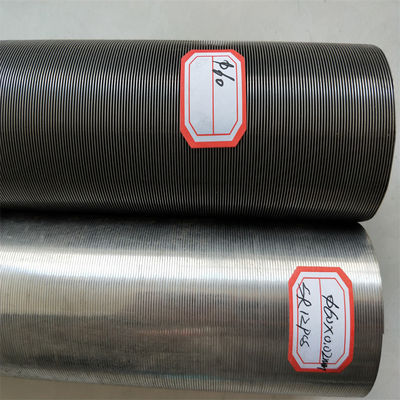

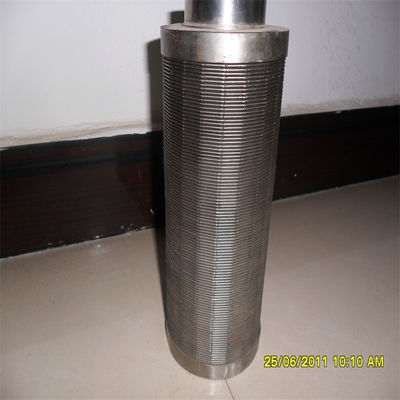

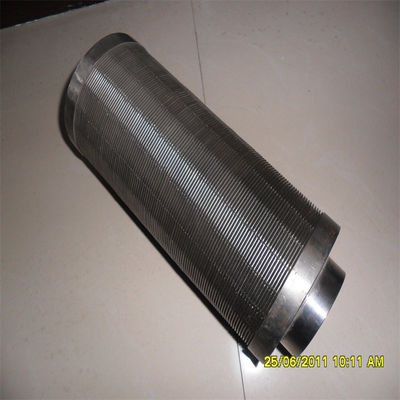

V Wire Screen Pipe is a kind of profile wire screen pipe with V shaped structure, which is widely used in the filtration and separation in the industries of Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry. It is featured by its V shaped section, which is the combination of a wire and a triangular support rod. It has two kinds of flow type, FOTI (From Outside To Inside) and FITO (From Inside To Outside). The slot size is ranged from 0.05mm to 10.0mm. The round support rods are available in various diameters, such as Φ2.5mm,Φ2.8mm,Φ3.0mm, Φ3.2mm, Φ3.5mm, Φ3.8mm, Φ3.9mm, Φ4.0mm, Φ4.5mm, Φ4.8mm, Φ5.0mm, Φ5.5mm, etc. It is also known as Johnson V Wire Screen Pipe, V Wire Wrapped Screen Pipe and Stainless Steel V Wire Screen Pipe.
Features:
- Product Name: V Wire Screen Pipe, Johnson V Wire Screen Pipe, V Wire Wrapped Screen Pipe, Stainless Steel V Wire Screen Pipe
- Wire Diameter: 1-5mm
- Threaded Type: NPT, BSP, G", STC, Or Customized
- Material: Duplex stainless steel: 2205, 904L
- Screen pipe for inside to outside filtration: Inverted Wire Construction: External Circumferential Inverted Wire And Axial Internal Support Rods, Radial Slot Execution, Internal Circumferential Wire(re-rolled: I.C.W): Internal Circumferential Wire With External Axial Support Rods
- Sand control screen pipe, Johnson screen pipe, Wire wrapped screen pipe, Stainless steel screen pipe
Technical Parameters:
| Product Name | Surface Treatment |
|---|
| V Wire Screen Pipe, Johnson V Wire Screen Pipe, V Wire Wrapped Screen Pipe, Stainless Steel V Wire Screen Pipe | Pickling, Polishing, Galvanized, Electrolytic Polishing |
| Screen pipe for inside to outside filtration | Threaded Type |
|---|
| Inverted Wire Construction: External Circumferential Inverted Wire And Axial Internal Support Rods, Radial Slot Execution, Internal Circumferential Wire(re-rolled: I.C.W): Internal Circumferential Wire With External Axial Support Rods | NPT, BSP, G", STC, Or Customized |
| Wire Diameter | Slot Tolerance |
|---|
| 1-5mm | ±0.05 Mm |
| End Connection | Application |
|---|
| Plain Beveled Ends For Butt Welding (welded Ring)or Threaded Male &female Coupling (spiral) Or Flange | Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry |
| Flow type | Wedge Support wire |
|---|
| FOTI (from Outside To Inside). FITO (from Inside To Outside) | 1.8x2.5mm, 2x3mm(Q25), 2.3x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm (Q35) |
Applications:
The V Wire Screen Pipe from Xinlu Company is a high-quality industrial water filtration screen pipe that provides superior filtration and reliable filtration performance. It is made of a combination of wires and rods with an outer layer of woven wire mesh, and features excellent corrosion resistance and durability. The V Wire Screen Pipe is available in 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", or customized sizes, with a minimum order quantity of 10pcs. It is certified by FORM E, CO, ISO, SGS and is able to supply 500pcs/month. The roundness of the pipe is pure round (no angles) and with angles, and it has a wire diameter of 1-5mm. The package of the V Wire Screen Pipe is available in wooden case, carton box, pallet, with plain beveled ends for butt welding (welded ring)or threaded male &female coupling (spiral) or flange. The flow type is FOTI (from outside to inside) or FITO (from inside to outside). The price of the V Wire Screen Pipe is 10-200USD/m, depending on the specification, and the delivery time is 5-10 days, depending on order quantity. Payment terms include T/T, cash, and the packaging details are transparent plastic bag inside, woven bag outside or bubble bag or wooden boxes or pallets or container.
Customization:
V Wire Screen Pipe
- Brand Name: Xinlu Company
- Model Number: 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", or customized
- Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
- Certification: FORM E, CO, ISO, SGS
- Minimum Order Quantity: 10pcs
- Price: 10-200USD/m, according to the specification
- Packaging Details: Transparent plastic bag inside, woven bag outside or bubble bag or wooden boxes or pallets or container
- Delivery Time: 5-10 days, depending on order quantity
- Payment Terms: T/T, cash
- Supply Ability: 500pcs/month
- Material: Stainless Steel: Stainless Steel 201, 205, 304, 316L, 321, Etc
- Wire Diameter: 1-5mm
- V Profile Wire : 0.76x1.8mm(11SS), 1x2mm(12SS), 1.5x2mm, 1.5x2.5mm(#63), 2x3mm, 2.2x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm, 3.02x6mm
- Material: Duplex stainless steel: 2205, 904L
- Diameter: 1-20inch
Premium screen pipe, Water well screen pipe, Corrosion-resistant screen pipe
Support and Services:
V Wire Screen Pipe provides technical support and services to its customers. Technical support and services include:
- Answering inquiries and troubleshooting problems
- Identifying and resolving technical issues
- Providing product information and advice
- Upgrading existing products
- Providing ongoing maintenance and support
Packing and Shipping:
V Wire Screen Pipe is usually packed in a wooden-box or a carton box.
During the packaging process, special attention shall be taken to protect the pipe from any form of damage.
The product will then be shipped to the customer via land, sea or air.
The customer may also specify other shipping methods.
