Product Details:
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Brand Name: Xinlu Wedge Wire Screen Products Company
Certification: CO, FORM E,FORM F
Model Number: 6-5/8"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD30-300 / pcs
Packaging Details: Inside Transparent plastic bag, outside woven bag or bubble bag, Wooden case, pallet or container
Payment Terms: T/T
Supply Ability: 500pcs/month

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment

Description
Product Name: SS316L Johnson Wedge Wire Screens, Od168mm Johnson Wedge Wire Screens, Threaded Ends Johnson Wire Screen 6-5/8" Diameter: 6-5/8" = 168mm
Slot: 0.010", 0.020", 0.030", 0.040" Long: 10ft / 20ft,, Or Customized
Wrapped Wire Size: 1x2mm, 1.5x2mm, 1.5x2.5mm, 2x3mm, 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3x6mm Support Rod Size: ø2.5-6.0mm Round Wire
Surface Treatment: Polished Threaded Standard: BSP, NPT, PT, BPS, API STC, G", Or Customized





SS316L Od168mm Johnson Wedge Wire Screens With Threaded Ends For Water Treatment

Johnson Type Wedge Wire Screen Description:

Johnson Type Wedge Wire Screen, has been known as the world's leading industrial filters since 1904. We provide screening solutions to almost every industry, including:
Water Well
Waste Water Treatment
Water supply systems
Coal & Mine
Food Processors & Beverage Screens
Environmental protection
Refining & Petrochemical
Architecture & Construction

Johnson Type Wedge Wire Screen Features:

The continuous opening of the filter pipe greatly increases the area for water to flow through, allowing for a better contact with the aquifer. This V-type profile of the structure prevents clogging and ensures a smooth flow. Furthermore, it ensures the long-term effective use of the pore, and the trapezoidal filter pipe offers a solid structure, high porosity, and precise poring. Additionally, the trapezoidal wire filter pipe is easy for washing, and users can expect it to possess a long service life, as well as being safe, reliable, comprehensive and low-cost.

Johnson Type Wedge Wire Screen Applications:

Water well smining and Mineral Processing is one of the core areas of our business. We also specialize in municipal water supply, refining and petrochemical. Moreover, Water treatment is one of our most important developing area.

We also offer the services of Architecture and construction, etc. to meet our customer's needs.

Johnson Type Wedge Wire Screen Technical Parameters:

Product Name Johnson Type Wedge Wire Screen

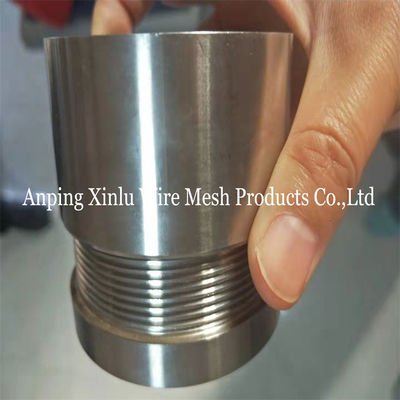

End connection Male/female Threaded BSP, NPT, PT, BPS, API STC, G", Welded Rings
Support rod size ø2.5-6.0mm Round Wire
Opening Size 0.5mm,0.63mm,0.76mm,1.0mm
Delivery time In One Week
Diameter Model 2” 3” 4" 6-5/8" 8-5/8" 9-5/8” 10-3/4" 12” 12-3/4" 14" 16"
Name Water Well Screen
Wire Mesh Screen High Strength, Durable and Corrosion Resistant
Mesh Type Full welded





Johnson Type Wedge Wire Wrapped Water Well Screens

Wire Wrapped Profile Wire Size:
0.76x1mm, 1x2mm, 1.5x2mm, 1.5x2.5mm, 1.8x5mm,2x3mm, 2.2X3.5mm, 2.5X4mm, 3X4.6mm, 3X5m, 3X6mm



Surface treatment:

Electrolytic polishing or polishing or pickling

Polished or Galvanized or Silver Spraying Painting



Application

Mining, Food Processing, Chemical Industry, Filtration, Separation, Sieving and Screening, Etc.



Transport Package

Inside Transparent plastic bag, outside woven bag or bubble bag, Wooden case, pallet or container



Features

High Strength, Corrosion Resistant, Durable, No burrs, bright surface



Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 0Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 1Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 2Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 3

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 4

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 5

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 6

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 7

Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 8Johnson Type SS316L Od168mm Wedge Wire Screens With Threaded Ends for Water Treatment 9

Materials : carbon steel and stainless steel (302 ,304 ,304 L ,316 ,316L etc) .



Characteristics :

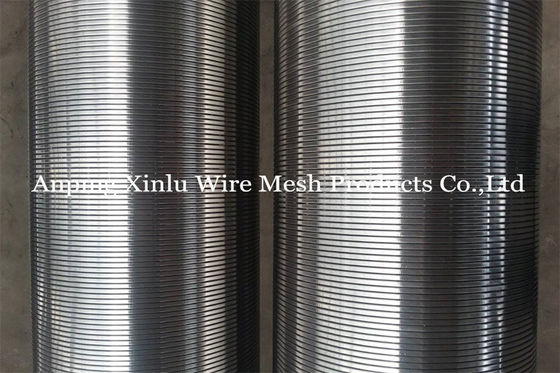

The welded stainless steel water well screen is made up of rods and warp .

The rod can be round wire , triangular wire or trapezoid wire .

The warp is triangular wire (V-shaped wire) .

Water well screens have a structure and high open area , as well as accurate slot dimension .

At the same time , water well screen have heat-resisting , anti-corrosive , good machine capability , last long , safety and reliability and so on characteristics .

It can be used in many kinds of medium filtering .



Uses :



The strainer is a kind of filtered water tubing with the perforation . it can use with the deep well pump , dive the water pump , also may use in the water-treating equipment , the environmental protection , the sea water transforms into the industrial water and life use water desalination treatment , running water treatment , water softening treatment , the petroleum industry : The petroleum product terminal filters and the chemical acid , the alkali liquid filters , the ethyl alcohol and so on the organic solution recycling filters.



Features of Product



1. Screens with high open area are more suitable for the construction of high-quality water wells , oil wells and gas wells.


2. Low cost operation
Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down , thus to save energy consumption.


3. Reduce the abrasion of the pump
Under the same condition , high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus , which will avoid sand’s entering into screen because of high pressure , thus reduce the abrasion of the pump .


4. Extend the life span of wells
Comparatively , groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen . The slow water flow shall extend the life span of wells .

Support and Services:

Xinlu company provides technical support and service for wedge wire johnson type screen products. Our technical support staff is available to help customers solve problems, answer questions, and provide guidance and troubleshooting. We also offer on-site installation and repair services for wedge wire Johnson type screen products.





If you have any enquires please feel free to contact us !



Our factory Xinlu Wire Mesh product co.,ltd located in Anping country , Hebei Province , China.

Our mainly products are:  stainless steel filter screens, wedge wire screens, johnson wire screeen, water well screen, rod based wire wrapped screen , johnson screen pipe, johnson screen tube, johnson filter screen, wire wrapped screen pipe, wire wrapped screen tube, wire wrapped screen panel, reverse wedge wire screen, Johnson screen nozzle, water and gas strainer, stainless steel filter nozzle, wedge wire filter nozzle, filter bottom nozzle, wedge wire grids, sieve bend screen, wedge wire panel, johnson screen plate, ARC screen, header and hub laterals & hub radial laterals, stainless steel filter candle, lateral arm pipes, v wire screens, v wire slot tube, continuous slot screens, oil well screen, changeable filter element, rotary drum screen, DSM cylinder, filter basket, wedge wire grating, double loop bar tie wire, twin wire loop wire tie, copper coated double loop wire tie, etc .
