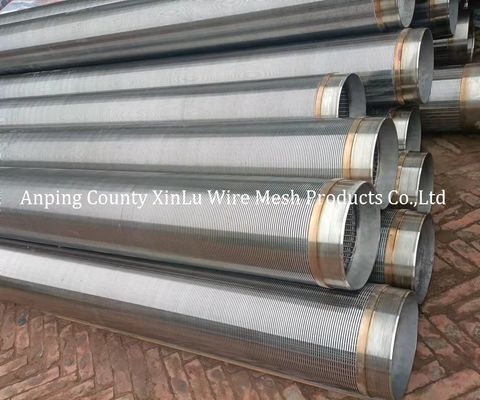

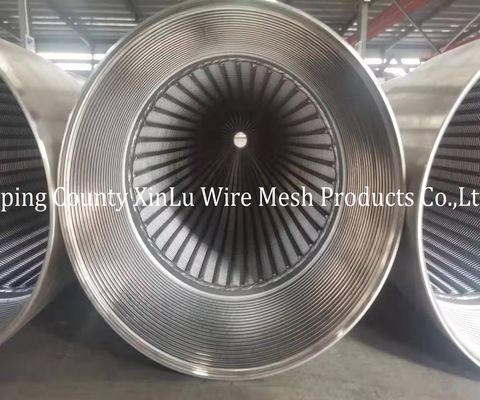

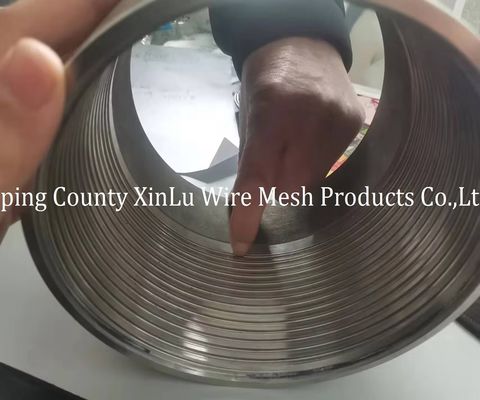

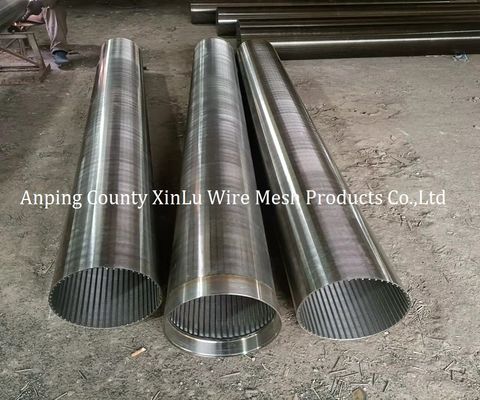

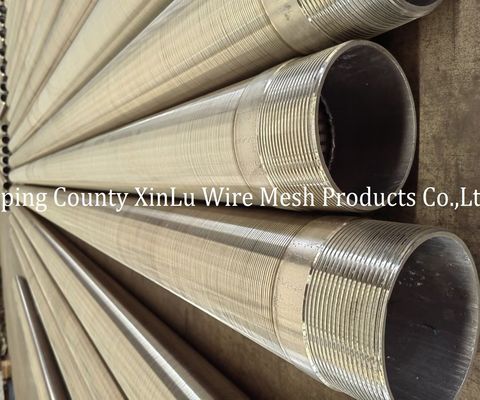

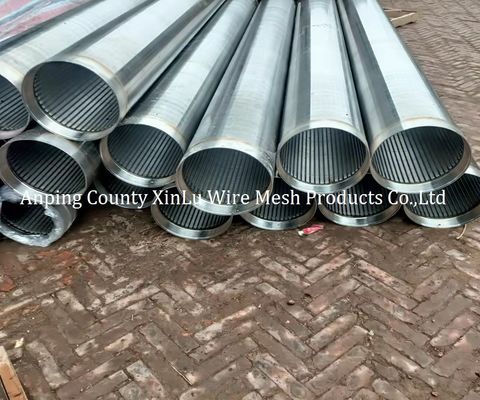

NPT Fitting Water Well Screen Pipe with 200 PSI Pressure and 0.05mm to 10mm Slot Size
Product Description:
Water Well Screen Pipe - Wire Wrapped Screen Pipe for Industrial Filtration
The Water Well Screen Pipe is a highly versatile and durable product used for industrial filtration in a variety of applications. Made from high-quality stainless steel, this wire wrapped screen pipe offers excellent pressure resistance and precision openings, making it suitable for a wide range of filtration needs.
Product Overview
The Water Well Screen Pipe is designed to meet the demands of various industrial filtration processes. Its unique construction, made of wedge wire filter tubes wrapped around support rods, ensures high strength and durability. The product is available in a variety of designs to meet specific application requirements, including:
- Filter Cartridges
- Diatom Candle Filters
- Header Laterals
- Rotating Drum Screens
- Water Filter Nozzles
- Resin Traps
- Ion Exchange
- Flat Screen
- Screw Press Screen
- Screen Basket
- Reverse Rolled Slot Tube
- Support Screen
- Conical Basket
- Distributor & Collector Laterals
- Nozzle Screen
- Slot Tube Screen
- V Slot Tubes/cylinders
- Flat Bed Panels
- Sieve Bends /DSM Screens
- Centrifuge Baskets
- Cylindrical Panels
- Trommel Screens
- Static Screens
- Intertank Screens
- Conical Units
Product Features
The Water Well Screen Pipe offers a number of key features that make it an ideal choice for industrial filtration:
- Pressure (PSI): 200
- Products: Filter Cartridges, Diatom Candle Filters, Header Laterals, Rotating Drum Screens, Water Filter Nozzles, Resin Traps, Ion Exchange, Flat Screen, Screw Press Screen, Screen Basket, Reverse Rolled Slot Tube, Support Screen, Conical Basket, Distributor & Collector Laterals, Nozzle Screen, Slot Tube Screen, V Slot Tubes/cylinders, Flat Bed Panels, Sieve Bends /DSM Screens, Centrifuge Baskets, Cylindrical Panels, Trommel Screens, Static Screens, Intertank Screens, Conical Units
- Certificate: ISO/API/CE/SGS
- Pressure: Low/Medium/High
- Benefits: Economical, Suitable For Most Applications, Precision Openings
Applications
The Water Well Screen Pipe is suitable for a wide range of industrial filtration applications, including:
- Oil & Gas Industry
- Water Treatment
- Chemical Processing
- Food & Beverage
- Mining & Mineral Processing
- Petrochemical Industry
- Power Generation
- Pharmaceutical Industry
- And more
Why Choose Water Well Screen Pipe?
There are several reasons why the Water Well Screen Pipe is the preferred choice for industrial filtration:
- Wire wrapped screen pipe construction ensures high strength and durability
- High-quality stainless steel material offers excellent pressure resistance
- Precision openings provide efficient filtration and separation
- Available in a wide range of designs to meet specific application requirements
- Certified by ISO/API/CE/SGS for quality assurance
- Suitable for low, medium, and high pressure applications
- Economical and suitable for most industrial filtration needs
Order Your Water Well Screen Pipe Today
With its pressure resistance, precision openings, and durability, the Water Well Screen Pipe is the ideal choice for industrial filtration. Order yours today and experience its high performance and versatility for yourself!
Features:
- Product Name: Water Well Screen Pipe
- Slot mesh: 12-400
- Material: Stainless Steel304, 321, 316L, 205,201/Carbon Steel Q235,Q195/Duplex Steel 2205/Alloy Steel
- Support rods: Φ2.5-6mm
- Pressure: Low/Medium/High
- Benefits:
- Economical
- Suitable For Most Applications
- Precision Openings
- Key Features:
- Johnson Screen Tube
- Water Pump Screen Tube
- Wedge Wire Screen Pipe
- Well Point Screen Pipe
Technical Parameters:
| Product Name |
Water Well Screen Pipe |
| Type |
Perforated, Wedge Wire, Johnson Screen, Slotted Liner, Wound Screen, Wire Wrapped |
| Material |
Stainless Steel304, 321, 316L, 205, 201/Carbon Steel Q235, Q195/Duplex Steel 2205/Alloy Steel |
| Slot Size |
0.05mm to 10mm |
| Length |
2.95m, 10ft, 5.85m, up to 20foot or Customized |
| Support Wire |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Support Rods |
Φ2.5-6mm |
| Fitting Type |
NPT, BSP, G, M, API, STC |
| Package |
Transparent Plastic Bags Inside, Woven Bags Outside/ Bubble Bags/Wooden Case/Pallet/Carton |
| Benefits |
Economical, Suitable for Most Applications, Precision Openings |
| Collaspe Pressure (PSI) |
300 |
Applications:
Water Well Screen Pipe
Product Overview
The Water Well Screen Pipe, also known as wedge wire screen pipe, johnson well screen pipe, or oil well screen pipe, is a type of filter used in water well and oil well applications. It is designed to allow the passage of water or oil while preventing the entry of unwanted particles, ensuring the efficiency and longevity of the well.
Place of Origin
Anping County Xinlu Wire Mesh Products Co.,Ltd
Minimum Order Quantity
10pcs
Price
The price of Water Well Screen Pipe ranges from 30-120USD/m, depending on the specification.
Packaging Details
Our Water Well Screen Pipe is carefully packed in various ways to ensure its safety during transportation:
- Transparent plastic bags
- Woven bags
- Cartons
- Wooden boxes
- Pallets
Delivery Time
7-10 days after receiving the payment
Payment Terms
We accept payment through T/T (Telegraphic Transfer).
Supply Ability
We have the capacity to produce 500pcs of Water Well Screen Pipe per month.
Type
We offer a wide range of Water Well Screen Pipe types to suit different applications:
- Perforated
- Wedge Wire
- Johnson Screen
- Slotted Liner
- Wound Screen
- Wire Wrapped
Product Specifications
| Type |
Weight |
Support rods |
Support wire |
| Perforated |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Wedge Wire |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Johnson Screen |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Slotted Liner |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Wound Screen |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
| Wire Wrapped |
8-40kg/m2 |
Φ2.5-6mm |
1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
Certificate
Our Water Well Screen Pipe is certified by various organizations, including:
- ISO (International Organization for Standardization)
- API (American Petroleum Institute)
- CE (Conformité Européenne)
- SGS (Société Générale de Surveillance)
Get a Quote
Customization:
Customized Service for Water Well Screen Pipe
Brand Name: Xinlu Company
Model Number: 6-5/8"
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 10pcs
Price: 30-120USD/m, according to the specification
Packaging Details: Transparent plastic bags, woven bags, cartons, wooden boxes, pallets
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 500pcs/month
Type: Perforated/Wedge Wire/Johnson Screen/Slotted Liner/Wound Screen/Wire Wrapped
Pressure (PSI): 200
Support wire: 1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm
Size: 1 Inch To 20inch
Weight: 8-40kg/m2
This customized service is for our Water Well Screen Pipe, also known as Johnson Screen Tube or Wire Wrapped Screen Pipe. Our company, Xinlu Company, located in Anping County, specializes in manufacturing high-quality water well filter tubes.
Our Water Well Screen Pipe comes in different types, including perforated, wedge wire, Johnson Screen, slotted liner, wound screen, and wire wrapped. It can withstand a pressure of 200 PSI and has a support wire size of 1.8x2.5mm, 2x3mm (Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, and 3x6mm. The size ranges from 1 inch to 20 inches and has a weight of 8-40kg/m2.
To ensure the best quality and protection, our Water Well Screen Pipe is certified with FORM E and CO. The minimum order quantity is 10 pieces and the price ranges from 30-120USD/m, depending on the specifications. We also offer various packaging options such as transparent plastic bags, woven bags, cartons, wooden boxes, and pallets. Our delivery time is 7-10 days and we accept payments through T/T. Our supply ability is 500 pieces per month.
Choose Xinlu Company for your water well screen pipe needs and experience our top-notch customized service. Contact us now!
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Xinlu Company.
- Q: What is the model number of this product?
A: The model number of this product is 6-5/8".
- Q: Where is this product manufactured?
A: This product is manufactured in Anping County Xinlu Wire Mesh Products Co.,Ltd.
- Q: What certifications does this product have?
A: This product has FORM E and CO certifications.
- Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 10pcs.
- Q: What is the price range for this product?
A: The price for this product ranges from 30-120USD/m, according to the specification.
- Q: What type of packaging is used for this product?
A: This product is packaged in transparent plastic bags, woven bags, cartons, wooden boxes, or pallets.
- Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 7-10 days.
- Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T.
- Q: What is the supply ability for this product?
A: The supply ability for this product is 500pcs/month.
