Product Details:
|
| Name: | Wire Wrapped Screens, Johnson Wedge Wire Screen,water Well Screen, Wire Wrapped Screen Pipe, Stainless Steel Filter Tube, Johnson Screen Pipe | Length: | 4m |
|---|---|---|---|
| Filter Rate: | 80% | Material: | No Magnetic Ss 304 |

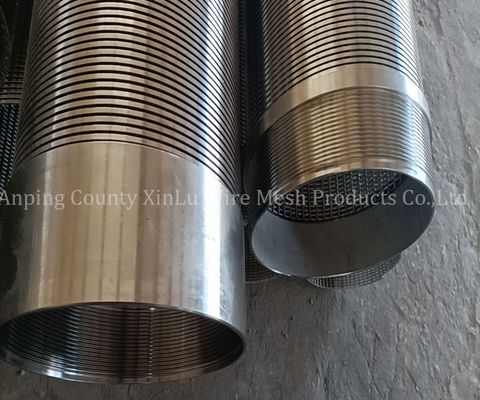

| Slot: | 1.0mm | End Connection: | Welded Rings, Threaded |
| Usage: | Filter Treatment, Water Pump Drilling. Oil Well Drilling, Sand Control | Well Deep: | 200-350m |
| High Light: | 4m Wire Wrapped Screens,1.0mm Slot Wire Wrapped Screens,Wedge Water Well Pipe |
||

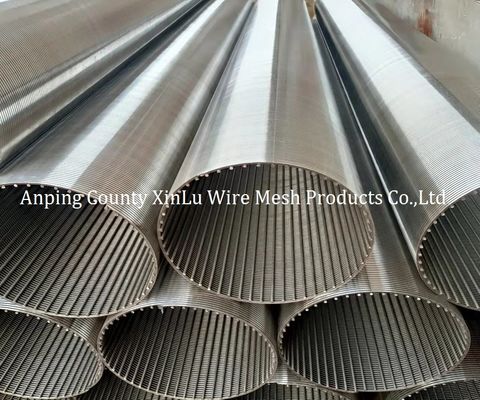

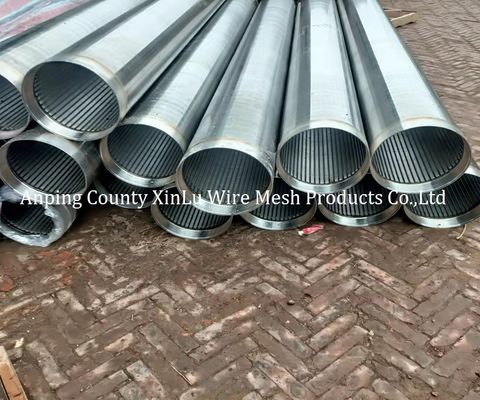

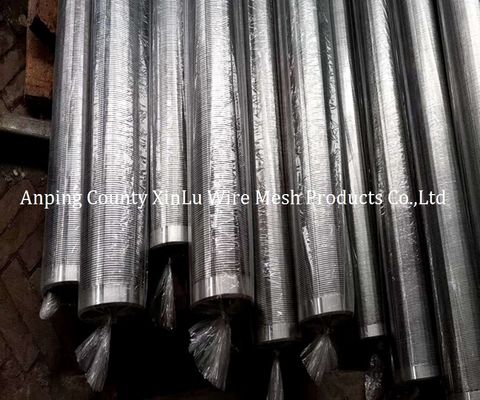

Johnson Type Wire Wrapped Wedge Wire screen Energy Saving 10-4000mm Length Filter Rating 80% For Filter Treatment

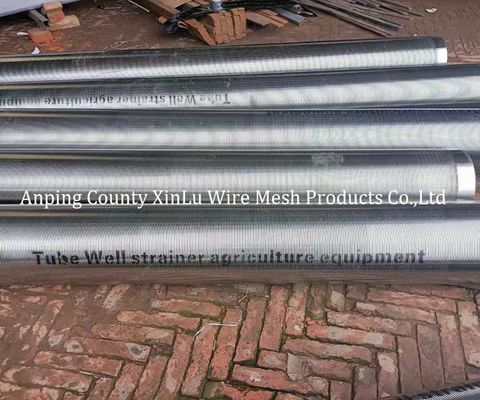

Johnson Type Wedge Wire Wrapped Screen mostly refers to V - Wire Water Well Screen.

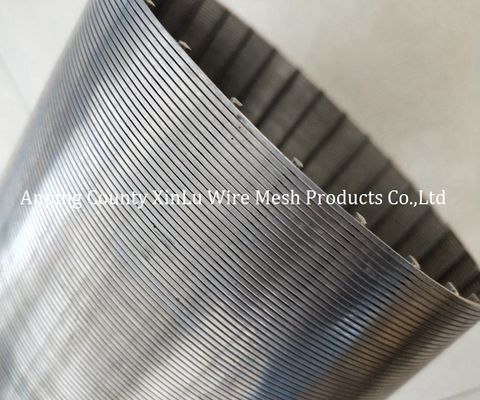

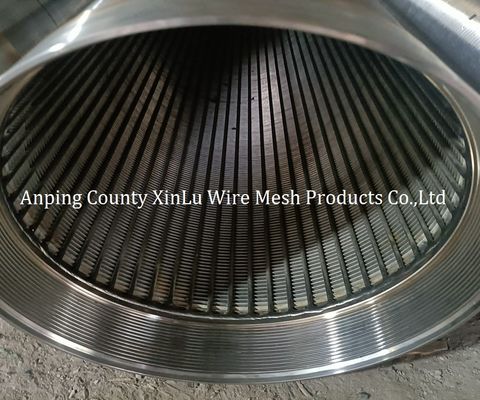

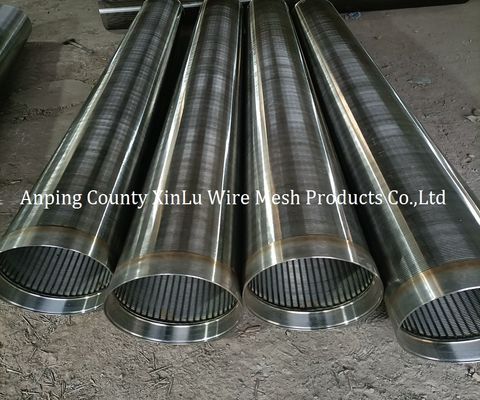

Johnson Type Wedge Wire Wrapped screen is manufactured with V-shaped profile wire which is spirally wound
around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter.

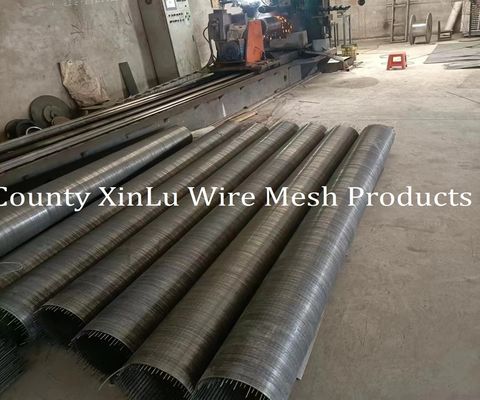

The entire process is completed on fully computerized machines.
Typical Specifications of Johnson Type Wedge Wire Wrapped Screens:
Diameter Available:
1.5", 2", 3", 4", 6", 8", 10", 12", 14"

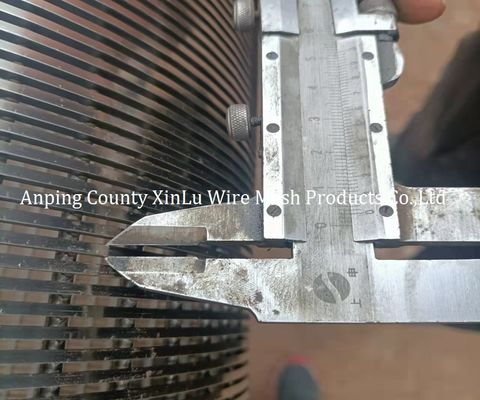

Slot (mm):
0.05, 0.1, 0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00
Lengths
6 Mts. & 3 Mts.
Material
Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 2.5*4.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.0*4.6 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 2.5*4.0 |
4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.0*4.6 | 4.0MM/60 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
A Cylindrical Wedge Wire Wrapped Screen For Practically Any Application
We offer these welded wedge wire screens in one single piece construction.
One of the important features of wedge wire screen for filtering and separation is the continuous aperture or “slot”, which automatically provides a large open area and low tendency to blind or clog.
The continuous aperture and triangular wire section ensures there are only two particle contact points, which minimizes the risk of blinding and clogging.
There are numerous wedge wire profiles available to suit to various applications in mining, food processing, beverage industry, waste water treatment etc.
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND |
|||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
