Anti-Corrosion Johnson V Wire Water Well Pipe High Strength For Deep Well
water well screen pipe, johnson well screeen, rod based wire wrapped screen, wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
The welded water well screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Product Quick Details:
1. Anti-Corrosion Johnson V Wire Water Well Pipe High Strength For Deep Well
2. Selling point: High Strength, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust resistant
3. Surface treatment: Pickling and polishing
4. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,
v / wedge wire: 3x4.6mm Well deep: 350-450m
v / wedge wire: 3.0x6mm Well deep: 500-650m
5. Package:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

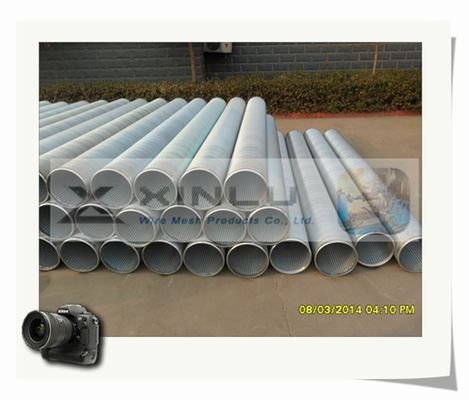

Johnson V Wire Water Well Screen Pipe Features
1. A built-in based pipe provides rigid support to the outer screen, allowing the screen layer to yield partially to high water pressure without the risk of the slot opening widening. It is highly recommended for severe water well requirements.
2. The outer wrap layer features continuous slots with a precise tolerance of 0.05mm, small slots limit the sand access.
3. Densely arranged slots provide a reduced flow resistance, allowing more water to enter the well pipe
4. The slot openings widen inwardly, allow water to flow at a reduced speed, which alleviates pressure felt on the pipe assembly.
5. Small diameter pipe negate the need for large diameter wells
Technological Parameters of Johnson V Wire Water Well Screen Pipe
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(INCH)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(PSI)
|
TENSILE
WEIGHT
(TON)
|
WRAP
(thick x deep)
(MM)
|
RODS
(MM)
|
| 4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8MM/22 |
| 4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.5 |
3.8MM/22 |
| 6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8MM/32 |
| 8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
2.5*4.0 |
3.8MM/48 |
| 8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*4.6 |
3.8MM/48 |
| 8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8MM/48 |
| 10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.2*6.0
|
5.0MM/50
|
| 10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*4.6 |
3.8MM/50 |
| 10 |
273.1 |
0.040 |
3 |
167 |
11 |
2.5*4.0 |
3.5MM/50 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
Quality assurance
1. Every production process has a special person to test to ensure quality
2. Have professional engineers to check the quality
Johnson V Wire Water Well Screen Pipe Manufacturing Steps
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
