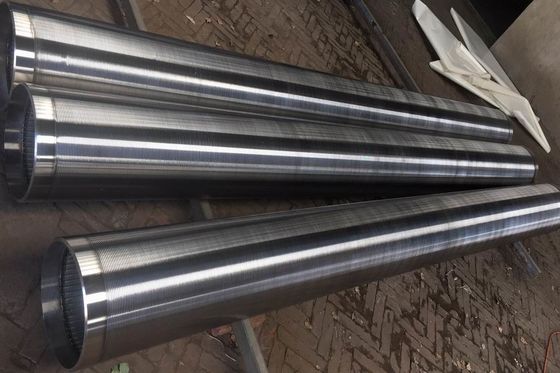

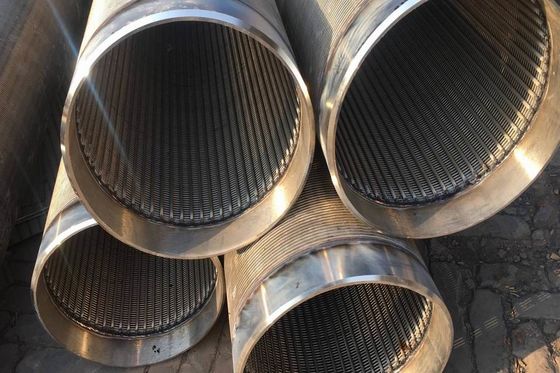

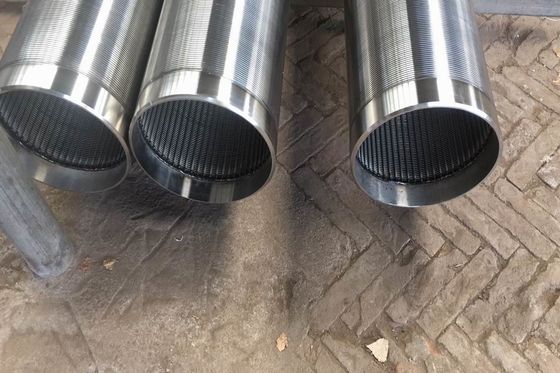

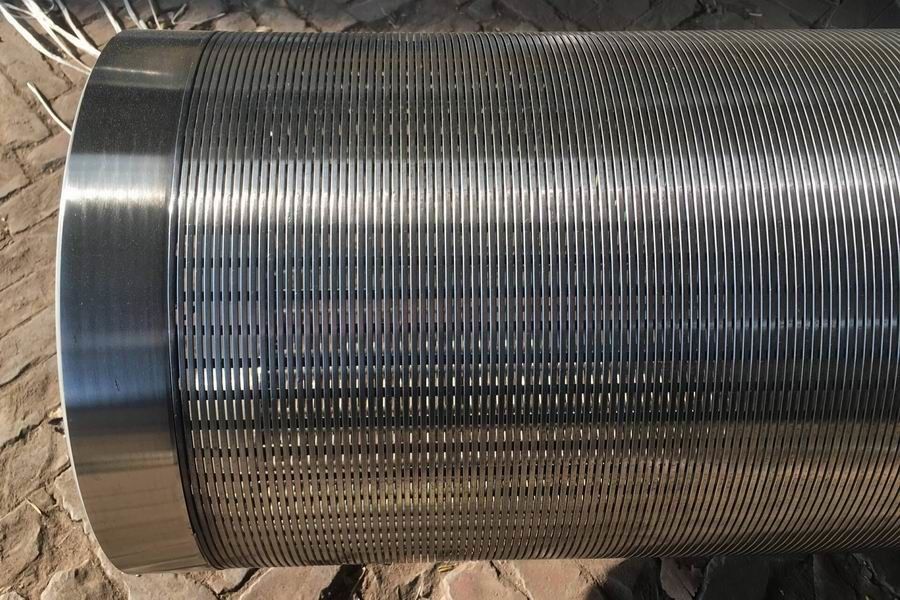

Pickling Polishing Stainless Steel Pipe Galvanized Rust Resistant With Welded Rings

Pickling And Polishing Johnson Wedge Wire Wrapped Water Well Pipe With Welded Rings

water well screen pipe, johnson well screeen, rod based wire wrapped screen, wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.

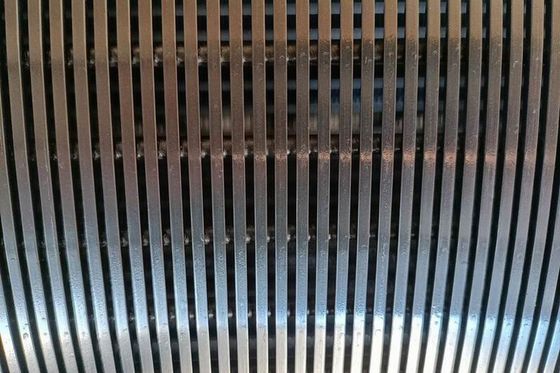

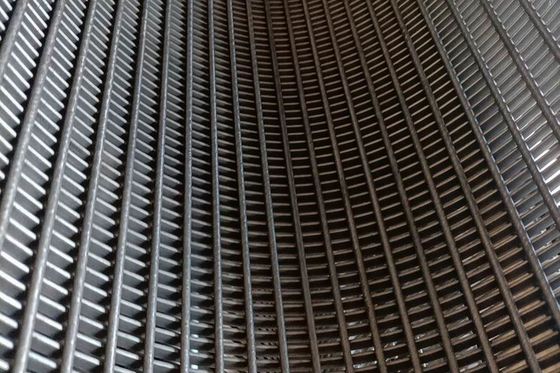

The welded water well screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Johnson Wedge Wire Wrapped Water Well Screen Pipe Description:

1. Well Screen Pipe material: stainless steel 304, 316, 316L, 321, 201, Duplex stainless steel, galvanized low-carbon steel, or custom materials

2. Slot opening size: 0.1mm-15mm

3. Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm

4. Length: 2.9m, 5.85m. (10ft, 20ft))

5. Connection method: beveled, circumferential welded, threaded connection, flange, end cap

6. Flow type: FOTI, FITO

7. Usage: This screen pipe is applicable in vertical wells, deviated wells, directional wells, and others that require sand control.

Features of products

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2. Low cost operation

Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.

3. Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.

4. Extend the life span of wells

Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Quality assurance

1.Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality

Package:

1. Plastic bubble bag packaging

2. Transparent plastic bag inside, woven bag outside

3. Wooden box

4. Pallet

Used:

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Technological Parameters of  Johnson Wedge Wire Wrapped Water Well Screen Pipe

Johnson Wedge Wire Wrapped Water Well Screen Pipe Manufacturing Steps
