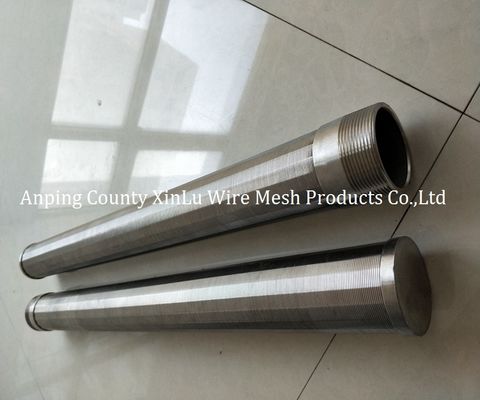

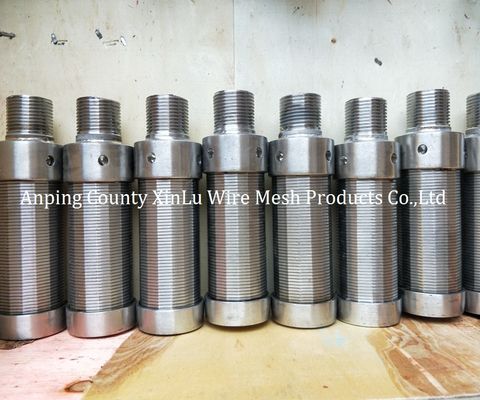

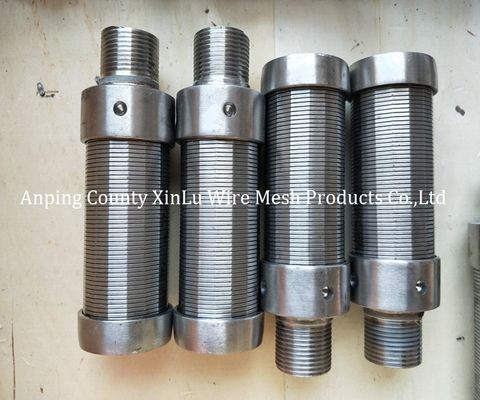

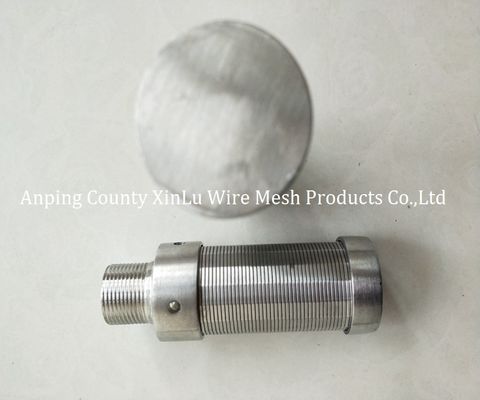

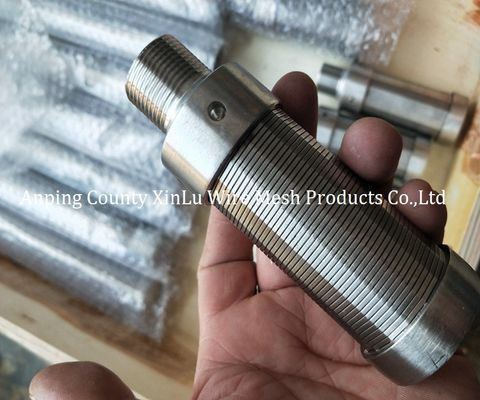

Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia

Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia
Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia

Large Image :  Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO, FORM E
Model Number: XL - Wire Wrapped Screens - 06
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia

Description
Name: Stainless Steel V Wire-Wrapped Screen Candle ,Filter Cartridge, Wedge Wire Wrapped Screen Filter Cartridge Use: Water Wells, Geothermal Well, Oil Well, Motor Filter, Pump Filter, Filter Lement,
Material: Stainless Steel 300 Series:304, 304L, 205, 201, 316L Feature: Heat Resisting, Corrosion Resistance, Smooth Surface, Easy Installation, No Angle And No Burrs
Diameter: 25-108mm End Connection: One End Threaded,the Other End Closed,
Surface: Electrolytic Polishing, Pickling And Polishing, Bright ,galvanized Other Connection: Welded Rings/Plain Beveled Ends;Male/female Threaded: API STC, PT NPT, BSP, G;Flange Etc.
High Light:

Candle Stainless Steel Filter Cartridge

,

Electropolished Stainless Steel Filter Cartridge

,

108mm V Wire Screen



Stainless Steel V Wire-Wrapped Screen Candle Filter Cartridge High Tensile strength



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen.





V / Wedge Wire Wrapped Screen Candle Filter Cartridge Description:


The stainless steel wire wrapped screen filter is a kind of metal mesh structure element used for screening and filtering.



V / Wedge Wire Wrapped Screen Candle Filter Cartridge Process:


Made of stainless steel wire by special equipment forming and welding. Wire wrap screen in stainless steel is made up of support rods and profile wire. The rod can be round wire, wedge wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire).





V / Wedge Wire Wrapped Screen Candle Filter Cartridge features:


1. Not jam: wire wrap screen face cross section is a triangle, screen two root surface cracks on wire on the adjacent two acute form, solid content through the sieve tube, and two sides of the gap form point contact, therefore, in theory, on the screen of the solid particles or trapped on the screen, either through the sieve tube aperture, impossible to form a third congestion state. To reduce the operational resistance equipment, maintain good water distribution characteristics, resin backwashing are very important.


2. The intensity is high, because of this component is made form the stainless steel wire around the welding structure, so it is of high intensity, the screen can be cut on the grinding wheel cutter, can also be on a lathe processing loose end face and does not cause deformationT


3. Large flow: the screen has a smaller resistance, compared with the similar size shape of the plastic filter, greatly increased the flow area of it, so under the same resistance, flux flow rate increased. In other words, under the condition of the same output, the use of filtering cartridge number can be reduced accordingly.


4. Good temperature adaptability: obviously compared with the ordinary plastic filter, the temperature of the stainless steel wire wrapped screen has a much wider scope than plastic filter.


5. Clearance adjustable: different users, using different filtration equipment and filter medium, the internal wire wrapped screen wire spacing requirements are different. Because this is a screen on the device continuously around the weld, and so the trapezoidal stainless steel wire between the clearance can be adjusted. In this way, without any increase in costs under the premise of suitable for the needs of different users, and the plastic filter to adjust the gap to make mould, so it's not easy to apply the user's needs. Small gaps can reach 20 microns.


6. The corrosion resistance: for neutral water, acid water and alkaline water, hydrochloric acid, sulfuric acid, salt, etc., appropriate chooses the material, can economic and security operation of filtering equipment.

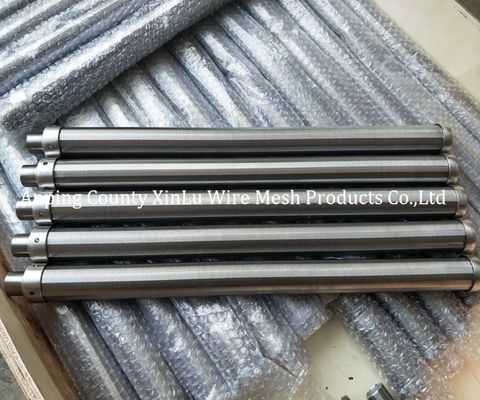

7. Package of wedge wire wrapped screens:


Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside

Plastic file
Wooden box
Pallet


Connection mode: welding ring, threaded connection(API STC, PT NPT, BSP, G), flange connection, or end closed
Material: 304304 L, 321316 L, 2205,904 L, hartz alloy, etc.
Strengthening way: punching pipe, cross, flange ring.



V / Wedge Wire Wrapped Screen Candle Filter Cartridge Regular Specification:



No. Model Diameter (mm) Lateral Outside Diameter (mm) Number of Laterals Hub Diameter
1 FY-XL-125 1250 25-57 6-8 DN80
2 FY-XL-160 1600 28-57 6-8 DN80
3 FY-XL-180 1800 32-65 8-12 DN80-DN100
4 FY-XL-200 2000 42-89 8-12 DN80-DN125
5 FY-XL-220 2200 42-89 8-12 DN100-DN125
6 FY-XL-250 2500 57-89 8-16 DN100-DN125
7 FY-XL-280 2800 57-89 8-20 DN100-DN150
8 FY-XL-300 3000 57-89 8-20 DN125-DN200
9 FY-XL-320 3200 57-89 8-22 DN125-DN200



Custom well screens

Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance


1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality



Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 0Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 1Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 2Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 3

Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 4Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 5Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 6Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 7Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 8Candle Stainless Steel Filter Cartridge Electropolished V Wire Screen 25 - 108mm Dia 9

Why choose us ?

1. We are the professional manufacturer.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.
