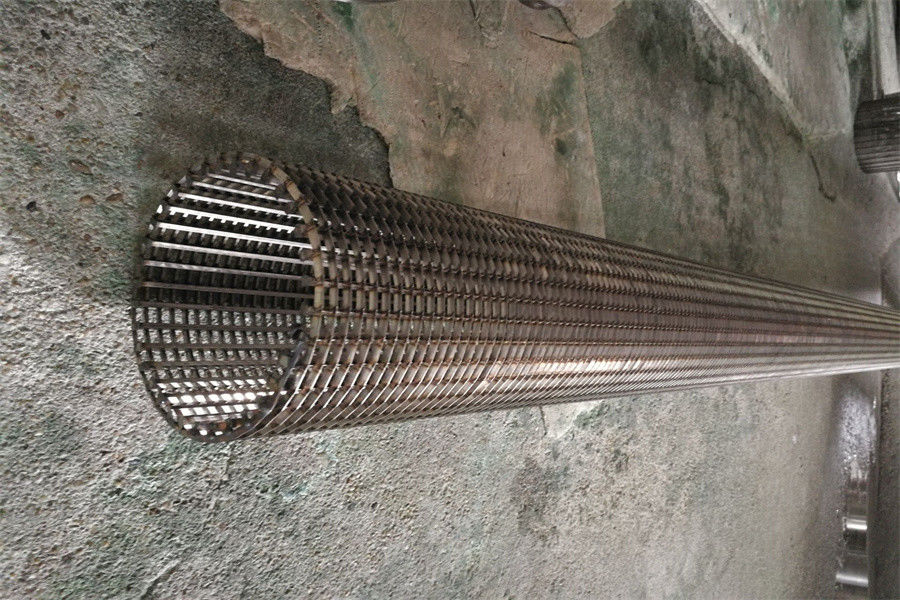

FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length

FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length
FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length

Large Image :  FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 012
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length

Description
Name: Wedge Wire Wrapped Johnson Type Filter Screen Tube Material: Duplex Steel 2205
Flow Type: From Inside To Outside: Inverted Wire Construction OD: 135mm
Wedge Wire: 2x3.8mm Support Size: 3x6mm / Center Distance: 15mm
Length: 2.5m Connection: Welded Rings/Plain Beveled Ends;Male/female Threaded: API STC, PT NPT, BSP, G;Flange Etc.
High Light:

FITO Stainless Steel Duplex Pipe

,

2.5m Stainless Steel Duplex Pipe

,

Duplex 2205 Tube



Duplex Steel 2205 Wedge Wire Wrapped Johnson Type Filter Screen Tube FITO



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen.



Product Quick Detail:



1. Wedge Wire Wrapped Filter Screen Tube / Cylindrical screen for inside to outside filtration



2. Reversed construction (FITO)



Reversed Profile
Normal construction of wire wrapped filter tubes allows for flow out to in filtration. However, flow-in-to-out constructions are also possible.



This construction can also be used when the wire wrapped filter tubes is used as support tube for another filter medium, so that only the wedge is in contact with the medium to increse the open area.



3. Inverted

Wire Construction presents the wire face to the cylinder interior and uses internal support rods.



4. Inverted


External circumferential inverted wire and axial internal support rods.



5. Benefits: Economical



6. Applications: Inside-out flow



7. Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,Duplex steel etc.



8. Diameter: From 29-800mm (Normal diameter is in the below table)


9. Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table)


10. Length: From 100-3000mm (Normal length is 2.9m to ft container)

11. Ends:Welded rings/Plain beveled ends;Male/female threaded: API STC, PT NPT, BSP, G;Flange etc.

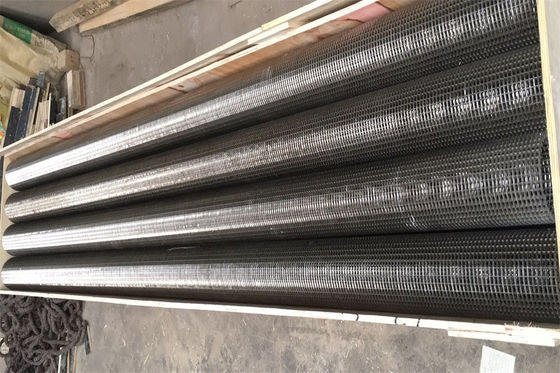

12. Package of wedge wire wrapped screens:


Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet



Johnson Water Well Screen Regular Specifications:

Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized, Duplex, Hastelloy, etc.
Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire: 1.5x2mm, 2x3mm,2.2x3.5mm,3x4.6mm,3x5mm,3x6mm,3x6.5mm,3.2x6mm,4x7mm etc.
Support rod:ø2.3mm-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.



Type of profile wire and support wire





 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 0
ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Custom well screens

Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality

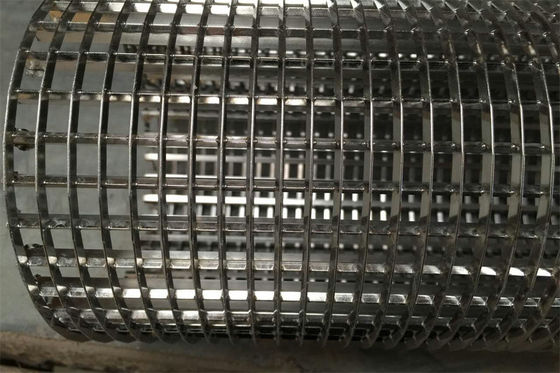

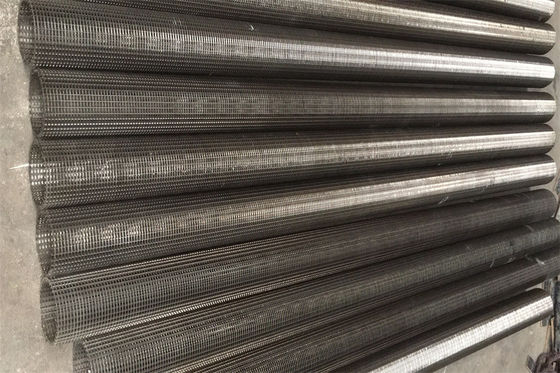

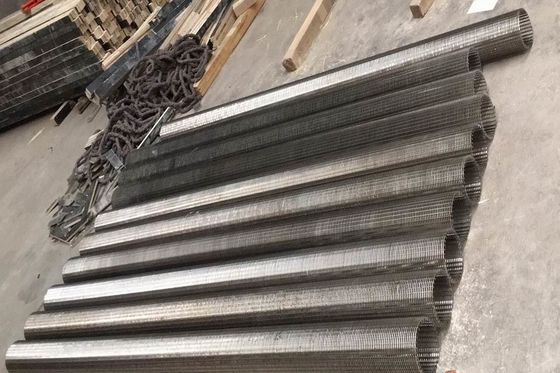

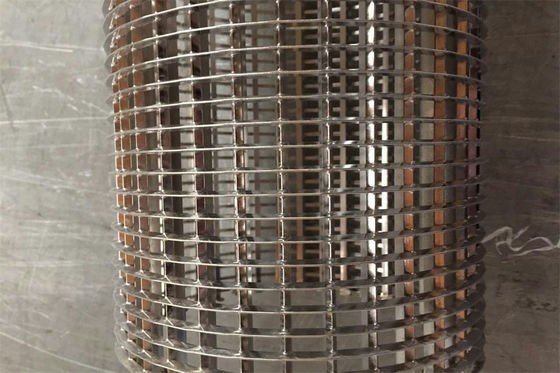

Duplex Steel 2205 Wedge Wire Wrapped Johnson Type Filter Screen Tube FITO Photos and production process:



FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 1

FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 2FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 3FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 4FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 5FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 6FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 7FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 8FITO Stainless Steel Duplex Pipe 2205 Tube Wedge Wire Wrapped 2.5m Length 9



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
