Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length

Certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
I'm Online Chat Now

Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length

Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length
Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length

Large Image :  Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: FORM E
Model Number: XL - Wire Wrapped Screens - 010
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length

Description
Name: Stainless Steel 304 14-3/4" Diameter Johnson Wire Wrapped Water Well Screens Material: SS304
OD: 375mm (14-3/4") Wedge Wire: 3x4.6mm
Support Size: 4.5mm Length: 2.95m
Surface TreatmentElectrolytic Polishing Pickling And Polishing: Electrolytic Polishing, Pickling And Polishing Connection: Welded Rings/Plain Beveled Ends;Male/female Threaded: API STC, PT NPT, BSP, G;Flange Etc.
High Light:

SS304 Johnson Well Screens

,

375mm Johnson Well Screens

,

2.95m Wire Wrapped Well Screen



Stainless Steel 304 14-3/4" Diameter Johnson Wire Wrapped Water Well Screens



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen.



Product Quick Detail:



1. Stainless Steel  Johnson Wire Wrapped Water Well Screens



2. Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,Duplex steel etc.



3. Diameter: From 29-800mm (Normal diameter is in the below table)


4. Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table)


5. Length: From 100-6000mm (Normal length is 2.95m or 5.85m, to ft container)

6. Ends:Welded rings/Plain beveled ends;Male/female threaded: API STC, PT NPT, BSP, G;Flange etc.



7. Package of wedge wire wrapped screens:


Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet



Advantage of wire wrapped water well screens:

Reduce energy consumption and increase water flow.

Reduce erosion of entry surfaces and increase well life.

Allow a uniform and efficient well development.

Reduce significantly potential pump damage and subsequent maintenance costs.



Johnson Wire Wrapped water well screens Advantages:

The wedge tapered opening becomes progressively wider increasing dewatering efficiency
Non plugging, unlike mesh there are only two contact points to retain particles
Slot sizes ranging from 25um to 1000um
Durable and capable of carrying heavier loads without support structures
One piece construction
Flexibility in forming fabricating and shaping
Wide range of materials
Low maintenance easy to clean



Johnson Water Well Screen Regular Specifications:

Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized, Duplex, Hastelloy, etc.
Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire: 1.5x2mm, 2x3mm,2.2x3.5mm,3x4.6mm,3x5mm,3x6mm,3x6.5mm,3.2x6mm,4x7mm etc.
Support rod:ø2.3mm-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.



Type of profile wire and support wire





 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 0
ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Custom well screens

Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality

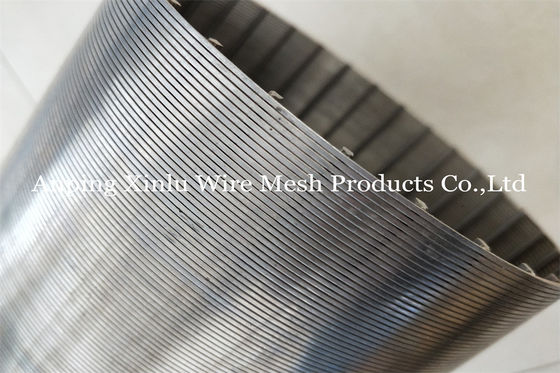

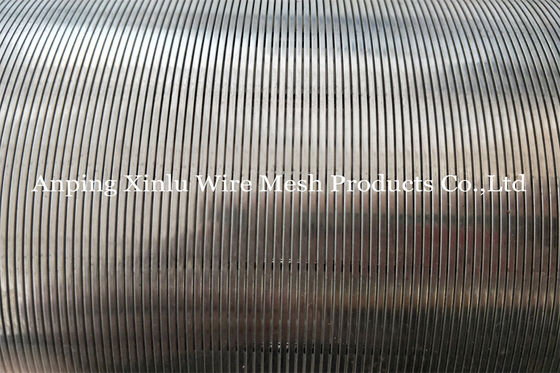

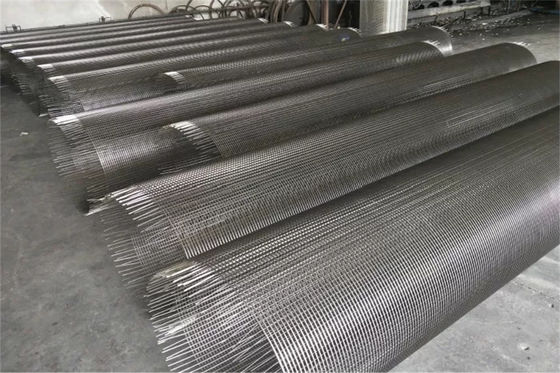

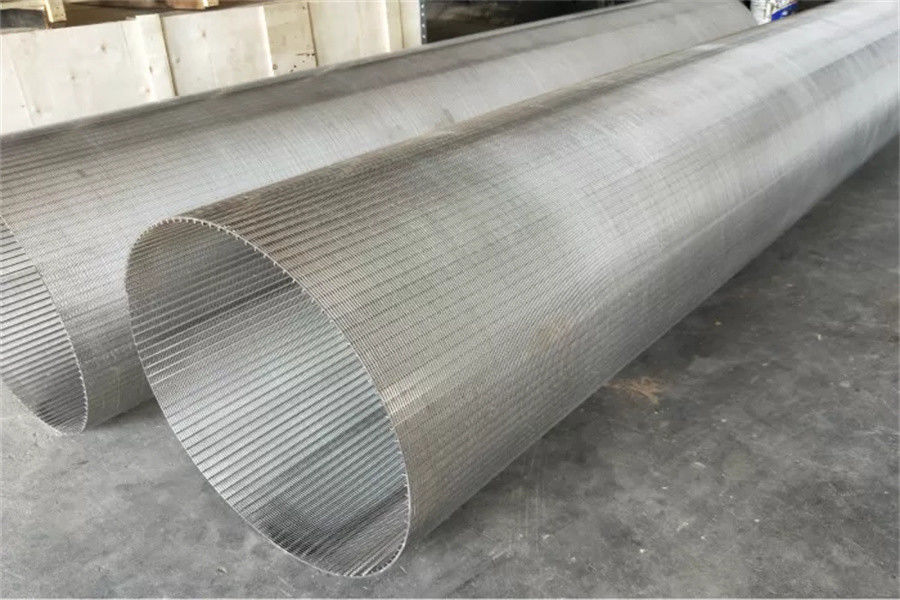

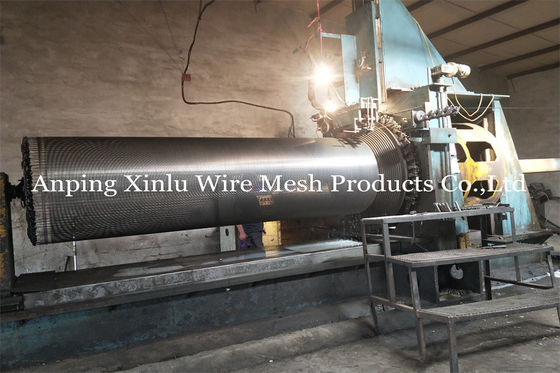

Johnson Wedge Wire Wrapped Water Well Screens Photos and production process:



Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 1



Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 2Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 3Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 4Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 5Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 6Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 7Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 8Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 9Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 10Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 11Wire Wrapped Johnson Well Screens SS304 375mm Diameter 2.95m Length 12

FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
