SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen

SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen
SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen

Large Image :  SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: FORM E
Model Number: XL - Wire Wrapped Screens - 016
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen

Description
Name: Johnson Wedge Wire Wrapped Screen For Water Filtering Industry Application: Water Filtering Industry, Dewatering Screen, Waste Treatment, Motor Filter, Pump Filter
Flow Type: FITO, FOTI Weave Style: V Wire Or Wedge Wire Wrapped
Advantage: Heat Resisting, Corrosion Resistance, Smooth Surface, Easy Installation, No Angle And No Burrs Open Arear: 71.5%
Surface: Electrolytic Polishing, Pickling And Polishing, Bright Connection: Welded Rings/Plain Beveled Ends; Male/female Threaded Coupling: API STC, PT NPT, BSP, G; Flange ; Closed Up, Open Ends Etc.
High Light:

SS304 Wire Wrapped Screens

,

FITO Wire Wrapped Screens

,

FOTI Water Filtering Screen

Brightly Stainless Steel 316L Inverted Shallow Wire WrapWell Screen With Smooth Slot



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen. water wire screen,wound screen.



Johnson Stainless Steel Wire Wrapped Screen For Water Filtering Industry

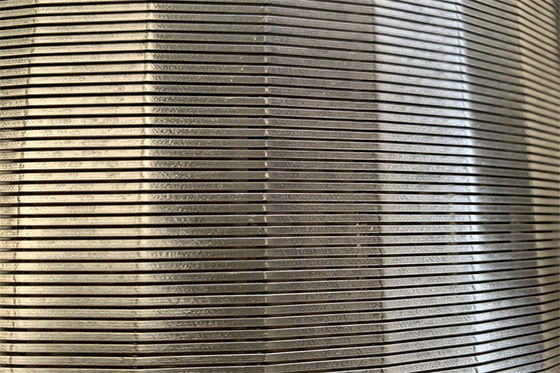

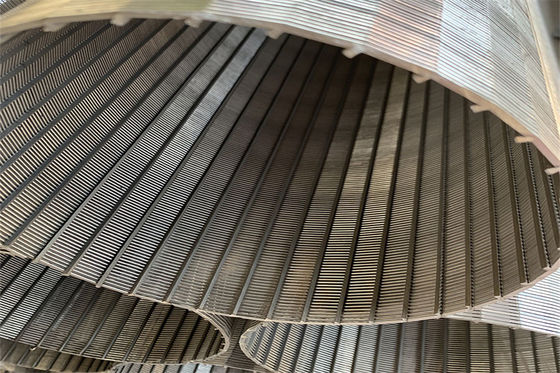

The Continuous slot wire wrapped screen is made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each joint point of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.



Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.



High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.



High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.



Product Description:

Wire Wrapped Johnson Screen is welded by V wire and support rod.

There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.





Advantages:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.



Slot even

The numerical control machine tools strictly control the gap between the wire, so that the gap is even.



Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Use:

The wire wrap Johnson screen pipe can be widely used in petroleum gasoline industry and the prevention of sand in water well, chemical industry and environment protect industry. Especially in water filtering industry, it has the prominent position.The Johnson screen pipe can be widely used in petroleum gasoline industry and the prevention of sand in water well, chemical industry and environment protect industry. Especially in water filtering industry, it has the prominent position.



Johnson Water Well Screen Regular Specifications:

Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized, Duplex, Hastelloy, etc.
Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire: 1.5x2mm, 2x3mm,2.2x3.5mm,3x4.6mm,3x5mm,3x6mm,3x6.5mm,3.2x6mm,4x7mm etc.
Support rod:ø2.3mm-ø6.0mm round wire, Also can be Vee-shaped wire.

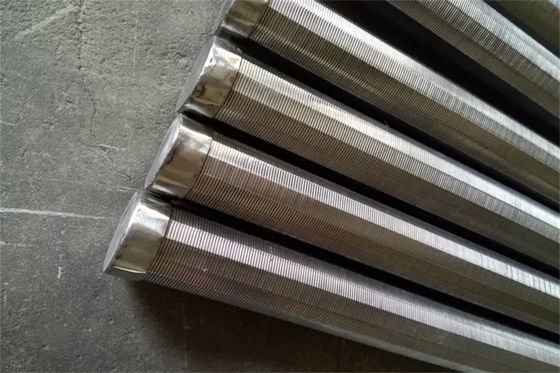

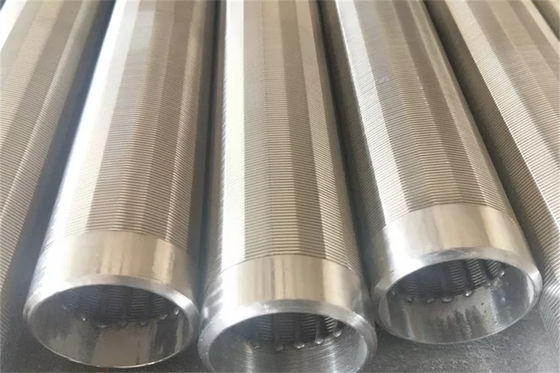

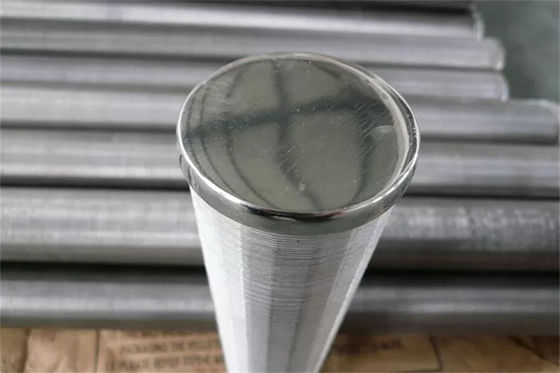

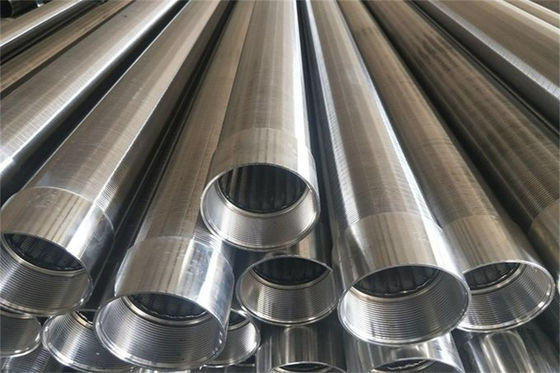

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.





V-Wire Wrapped Screen Pipe Wire Specification



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Custom well screens



Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality



SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 0SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 1

SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 2

SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 3SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 4SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 5SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 6SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 7SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 8SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 9



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 10SS304 Wedge Wire Wrapped Screens FITO FOTI Water Filtering Screen 11
