Home ProductsWire Wrapped Screens

Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube

Certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
I'm Online Chat Now

Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube

Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube
Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube

Large Image :  Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 020
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube

Description
Name: Triangular Wire Wrap Screen Filter Diameter: 4-1/2", 6-5/8", 8-5/8"
Application: For Sand Control In Water Well, Water Filtering Industry, Dewatering Screen, Waste Treatment, Motor Filter, Pump Filter Technique: V Wire Or Wedge Wire Wrapped
Length: 2.95m, 5.85m Advantage: Heat Resisting, Corrosion Resistance, Smooth Surface, Easy Installation, No Angle And No Burrs
Surface: Electrolytic Polishing, Pickling And Polishing, Bright Connection: Welded Rings/Plain Beveled Ends; Male/female Threaded Coupling: API STC, PT NPT, BSP, G; Flange ; Closed Up, Open Ends Etc.
High Light:

Triangular Wire Wrap Screens

,

Electropolishing Wire Wrap Screens

,

Electropolishing Filter Screen Tube

4-1/2" 6-5/8" 8-5/8" Diameter Triangular Wire Wrap Screen Filter



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen. water wire screen,wound screen.



Wire Wrapped Screen Features & Benefits:

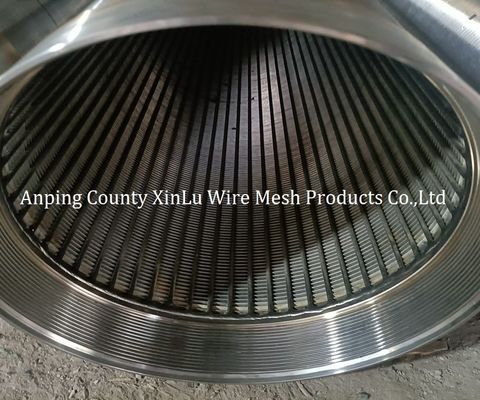

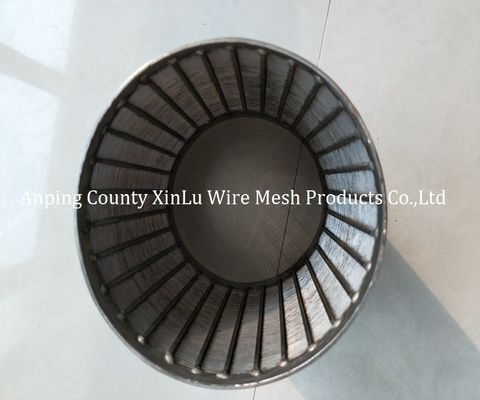

Continuous slot: Its support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.



High open area: It can reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.



High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.





Johnson Water Well Screen Regular Specifications:

Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized, Duplex, Hastelloy, etc.
Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire: 1.5x2mm, 2x3mm,2.2x3.5mm,3x4.6mm,3x5mm,3x6mm,3x6.5mm,3.2x6mm,4x7mm etc.
Support rod:ø2.3mm-ø6.0mm round wire, Also can be Vee-shaped wire.

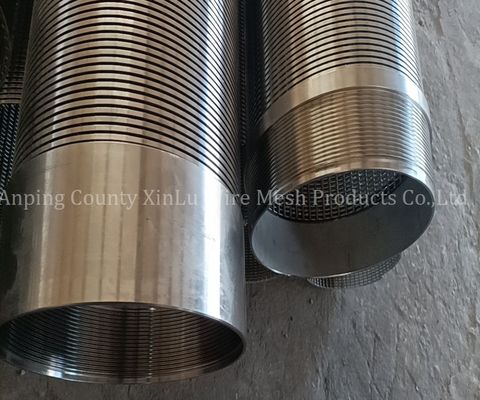

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.



V-Wire Wrapped Screen Pipe Wire Specification



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----




Custom well screens



Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 0Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 1Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 2Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 3Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 4



Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 5Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 6Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 7Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 8Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 9Triangular Wire Wrap Screens 6-5/8" 8-5/8" Dia Electropolishing Filter Screen Tube 10
