Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch

Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch
Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch

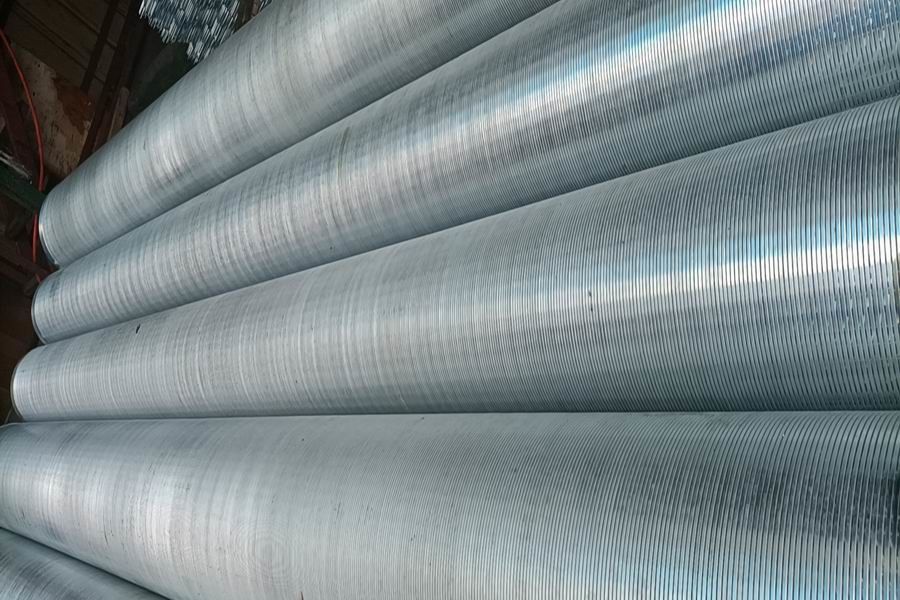

Large Image :  Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: FORM E
Model Number: XL - Wire Wrapped Screens - 017
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch

Description
Name: Low Cost Q195 Or Q235 Wire Wrapped Screen For Sand Control In Deep Wells Diameter: 4-1/2", 6-5/8", 8-5/8"
Application: Deep Wells, For Sand Control In Water Well, Water Filtering Industry, Dewatering Screen, Waste Treatment, Motor Filter, Pump Filter Technique: V Wire Or Wedge Wire Wrapped
Length: 2.95m, 5.85m Advantage: Rust Resistant, Smooth Surface, Easy Installation,
Surface: Galvanized Connection: Welded Rings/Plain Beveled Ends; Male/female Threaded Coupling: API STC, PT NPT, BSP, G; Flange ; Closed Up, Open Ends Etc.
High Light:

Q195 Wire Wrapped Screens

,

Sand Control Wire Wrapped Screens

,

Q235 Deep Well Pipes

 Low Cost Q195 or Q235 Wire Wrapped Screen For Sand Control In Deep Wells



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen. water wire screen,wound screen.



Low Cost Wire Wrapped Screen For Sand Control In Deep Wells



Regular Specifications:



Material: Low carbon galvanized: Q195/ Q235, Also can be stainless steel 205, 304, 316, 304L, 316L,321 etc.

O.D.: 3-1/2",4-1/2", 6-5/8", 8-5/8", 9-5/8",10-3/4", 12-3/4" inch and as request.

Slot: 0.1mm, 0.25mm, 0.3mm,0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be other sizes.

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm, 2950,5850mm in usual, to fit container.

End Connection: Welded rings/Plain beveled ends; Male/female threaded coupling: API STC, PT NPT, BSP, G; Flange ; Closed up, Open ends etc.

Flow Type: FOTI: External circumferential wire and axial internal support rods; FITO: external circumferential inverted wire and aixal internal support rods, or Internal axial wire with external circumferential support rods.





Special specification can be made according to your need.





Advantages:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.



Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.



Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Application:



Wre wrapped screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large- and small-diameter deep wells



V-Wire Wrapped Screen Pipe Wire Specification






SIZE

(INCH)



O.D

(MM)



SLOT

(MM)



LENGTH

(M)



COLLAPSE

STRENGTH

(BAR)



TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.2x3.0 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3x3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.5x4.0 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.05x6.0 6.0MM/32
8-5/8 219.1 1.0 5.8 >34 21.9 2.5x4.0 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x4.6 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.05x6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.5x4.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.05x6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x4.6 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0x4.6 4.0MM/59



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           Q195 Q235 Wire Wrapped Screens Sand Control Deep Well Pipes 10Inch 0
ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----




Custom well screens



Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1.Every production process has a special person to test to ensure quality

2.Have professional engineers to check the quality



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
