Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing

Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing
Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing

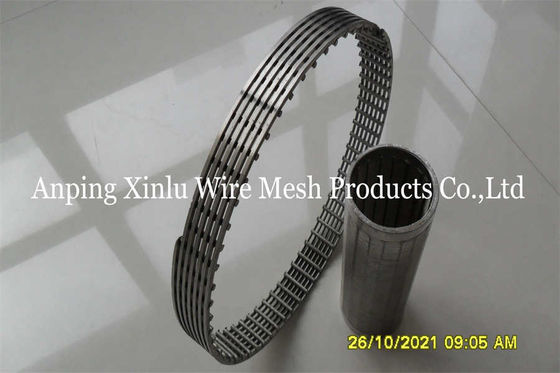

Large Image :  Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Water Well Screen - 023
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing

Description
Another Name: Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction Material: Low Carbon Steel, Ss 304, Ss316, Ss316L, Ss321,etc
Surface Treatment: Electrolytic Polishing End Connection: Welded Rings, Threaded, Flange, Blind End Cap
Collapse: ≥80 Bars Tensile Strength: ≥45 Tonnes
Legnth: 0.5-6m Well Deep: 50-600m
High Light:

Wedge Wire Water Well Screen Pipe

,

Electrolytic Polishing Water Well Screen Pipe

,

0.5m Legnth Water Well Screen Pipe

Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,



Product Advantages: Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction



1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.



2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.



3. Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.



4. Extend the life span of wells

Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.



Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry



Customer Service: Custom well screens

Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Main specs for Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction

Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials

Slot opening size: 0.1mm-15mm

Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm

Length: 2.9m, 5.85m. The maximum length is 6.05m

Connection method: beveled, circumferential welded, threaded connection



Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction Specification




SIZE

(INCH)



O.D

(MM)



SLOT

(MM)



LENGTH

(M)



COLLAPSE

STRENGTH

(BAR)



TENSILE

WEIGHT

(TON)

WRAP WIRE

(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3x3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3x3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0 6.0MM/32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3x3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0x5.0 4.0MM/59



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Benefits of Wedge Wire Wound Johnson Tube Well Screen In Water Well Construction



1. Maximum Flow Rate

The slots are arranged in a uniform pattern, allowing water to enter the screen directly from all directions of the water bearing area.



2. Excellent Sand Control Performance

Traditional perforated tubes have holes large than 1 cm, which do not keep sand out. Scratches and corrosion on the outer wrap layers leads to more sand, gravel and clay entering the well pipe, which in turn leads to clogging. However, the wedge wire screen has slot openings between 0.5mm and 1.5mm, keeping most sand and abrasive particles out.



3. Long Well Life

Each wedge wire screen undergoes anti-corrosion treatments, rendering it less prone to rust or encrustation.



4. Easy Installation

Wedge wire screens are lighter than cast iron pipes or perforated tubes, making them easier to install.



5. Standard Length

The standard length of each wedge wire screen is 3.2m. Pup joints can be added upon request.



6. Connection Method

Welded, threaded, and flanged connections are available.



Applications for the Wedge Wire Screen

This screen is applicable in vertical wells, deviated wells, directional wells, and others that require sand control.







FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 0Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 1







Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 2Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 3Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 4Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 5

Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 6Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 7Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 8Wedge Wire Wound Johnson Continuous Slot Water Well Screen Pipe Electrolytic Polishing 9
