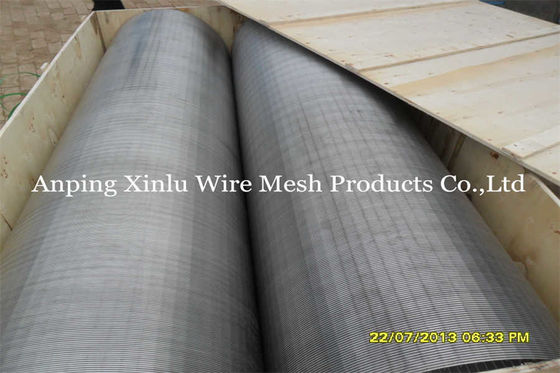

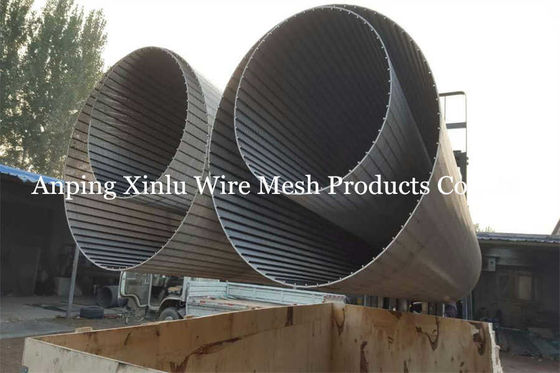

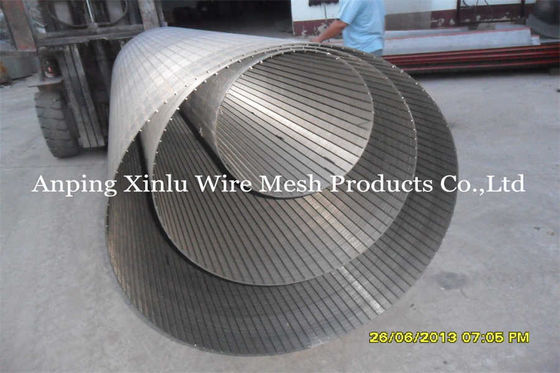

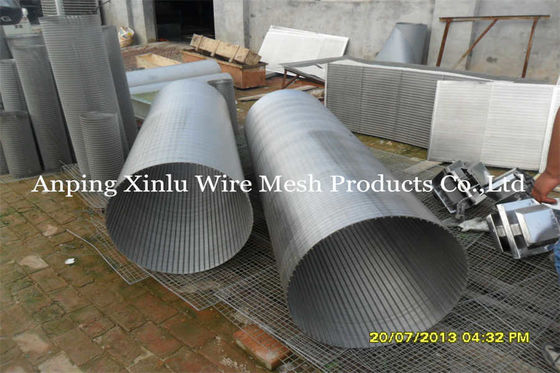

450mm Diameter Johnson Wedge Wire Screen Pipe Smooth Surface And Edge Type

450mm Diameter Johnson Wedge Wire Screen Tube - Smooth Surface and Edge Type

wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,

Wedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

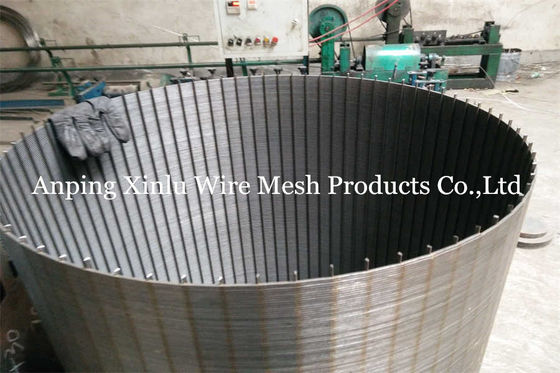

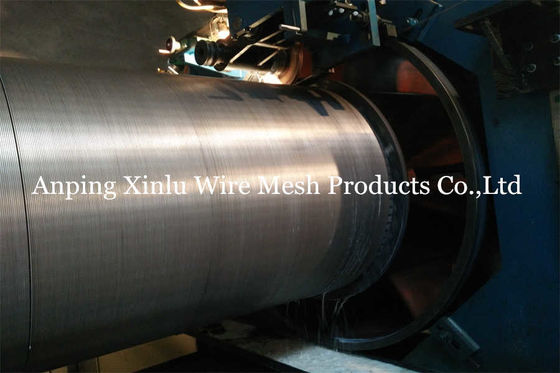

The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Types of wedge wire screen tube

Wedge wire screen tube has various different types, according to the different standard, here are the detailed introduction of the wedge wire screen tube, just refer to them and know more about the round slot tube and get a reference for choice.

According to the surface of wedge wire screen tube

There are two types of wedge wire screen tube seen from the surface. One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suit the applications where the accuracy is not very strict. The other type is perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.

According to the position and direction of surface profiles and support profiles

According to the position and direction of surface profiles and support profiles, the wedge wire screen tube can be divided into four types.

Radial internal type. The filtering principle is flowing in to out. And the support profile is radial.
Radial external type. The filtering principle is flowing out to in. It is the standard type. The support profile is also radial.
Axial internal type. The filtering principle is flowing in to out. And the support profile is axial.
Axial external type. The filtering principle is flowing out to in. And the support profile is axial.

Wire types of wedge wire screen tube

As we all know, the wedge wire screen tube is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire.

The support wire can be flat bar, triangle bar, round bar and trapezoid bar.

End types of wedge wire screen tube

Wedge wire screen tube has different edge types to suit different applications and machines, the main types are as follows, just refer to them and choose the best one.

Common type.
End ring type.
Threaded fitting type.
Flange type.

Specifications of wedge wire screen tube

Material: stainless steel 304, 304L, 316, 316L, 321, etc.
Tube diameter: 25 mm - 1500 mm.
Tube length: 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized.
Slot size: 0.05 mm - 2.5 mm.
Surface profile type: triangle wire.
Support profile: triangle wire, round wire, flat bar or wedge wire.

Features of wedge wire screen tube

Accurate filtering performance.
High efficiency.
Narrow slot openings.
Normal or high grade type for choice.
Various edge types.
Wide range of diameters for choice.
Special sizes can be customized.
Economical but high grade.
Corrosion resistance.
Rust resistance.
Long service life and durable.

Applications of wedge wire screen tube

Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.
Catalytic reformer.

Specifications for your reference:

Stainless Steel Water Well Screen Pipe Specifications

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
