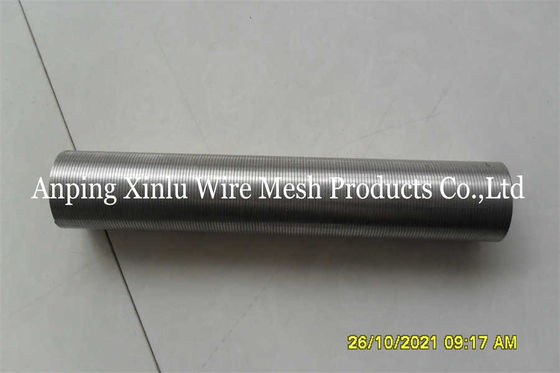

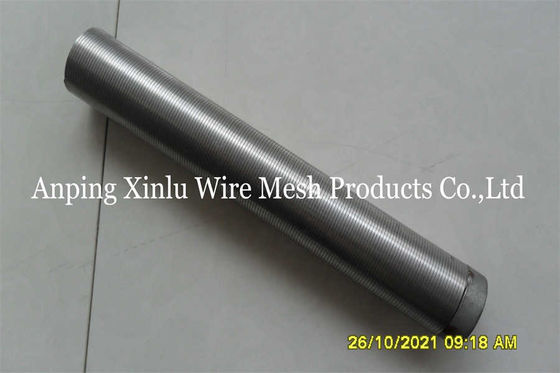

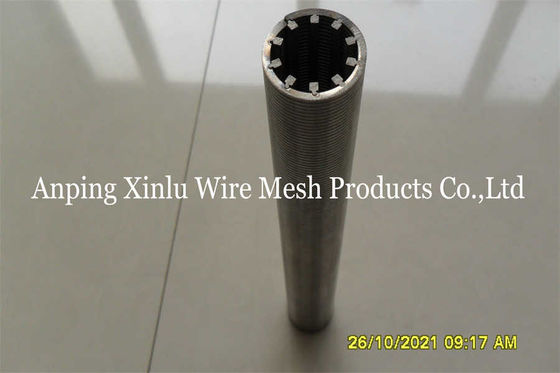

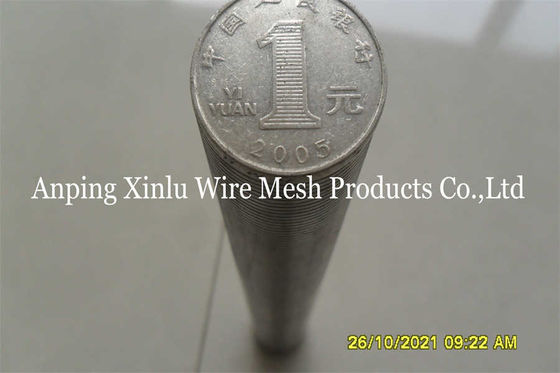

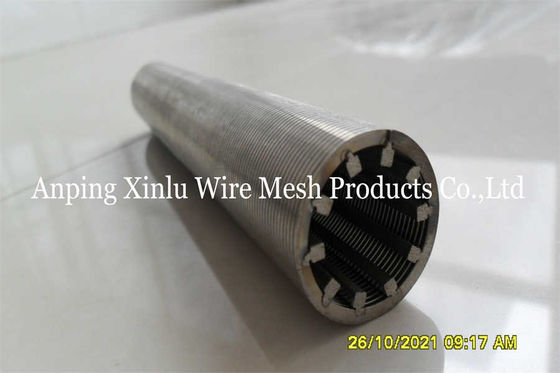

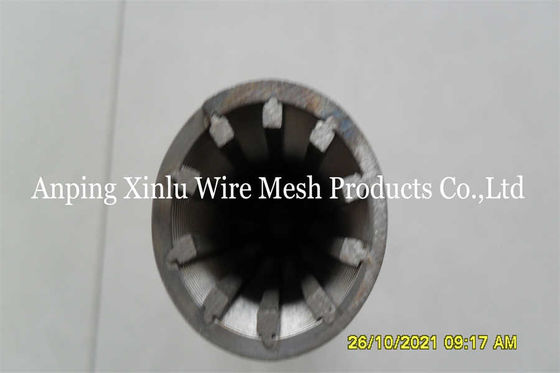

DN 25mm WELDED WEDGE WIRE CANDLE FILTER FOR Ion Exchange /
Internal Pipe For Lateral
Our range of welded wedge wire candle filters are ideal for removing particles of very small size up to 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.
welded wedge wire candle filters Specification
| No. |
Model Type |
N,D--mm
D
|
Branch Pipe Dia
d (Φmm)
|
Branch Pipe Number |
PN0.6/DN
Dimension of main pipe
|
| 1 |
FY-XL-125 |
1250 |
25-57 |
6-8 |
DN80 |
| 2 |
FY-XL-160 |
1600 |
28-57 |
6-8 |
DN80 |
| 3 |
FY-XL-180 |
1800 |
32-65 |
8-12 |
DN80-DN100 |
| 4 |
FY-XL-200 |
2000 |
42-89 |
8-12 |
DN80-DN125 |
| 5 |
FY-XL-220 |
2200 |
42-89 |
8-12 |
DN100-DN125 |
| 6 |
FY-XL-250 |
2500 |
57-89 |
8-16 |
DN100-DN125 |
| 7 |
FY-XL-280 |
2800 |
57-89 |
8-20 |
DN100-DN150 |
| 8 |
FY-XL-300 |
3000 |
57-89 |
8-20 |
DN125-DN200 |
| 9 |
FY-XL-320 |
3200 |
57-89 |
8-22 |
DN125-DN200 |
Note: Center distribution deainage device has many types: crossing type, fishbone type and straight type, etc
Material: 304,321,316,316L,904L ,HastalloyB and C, ets
Alll main pipes are adopted with flexible flange.
| Slot size |
Screen lateral diameter (mm) |
Vertical hub diameter (mm) |
Screen lateral flange diameter (mm) |
Vertical hub flange diameter (mm) |
Numbers of screen lateral |
0.05
0.1
0.2
0.3
0.5
1 |
32
40
57
76
89 |
76
89
108
133
159
219 |
25
32
40
50
65
80 |
50
65
80
100
125
150 |
6
8
10
12 |
welded wedge wire candle filters FEATURES:
- Backwashable welded wedge wire FOTI tubes
- Low heel volume
- Easy to clean smooth filtration surface
- Outside to inside flow
- No moving parts
- Permanent Filter element
- Fine Filtration down to particles (10 Microns and above)
ADVANTAGES: welded wedge wire candle filters
- Clean and hygienic operation
- Highest level safety for operator and process
- Eco-friendly operation
- Stand alone equipment
- Backwashing facility
- Permanent candles
- Steam back-washable
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
