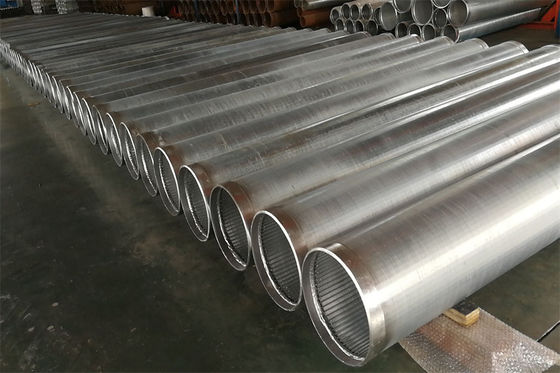

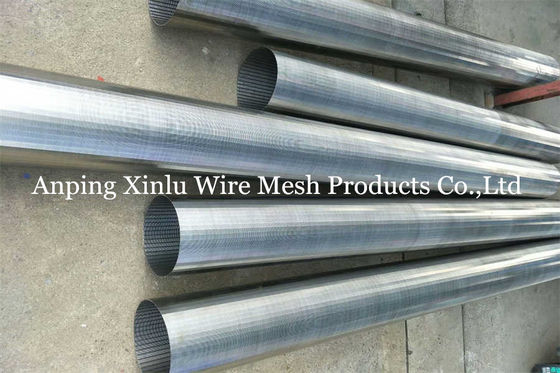

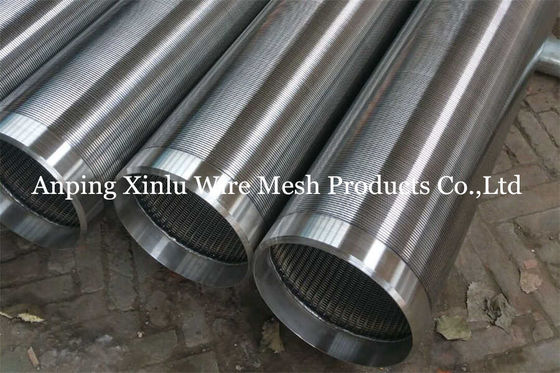

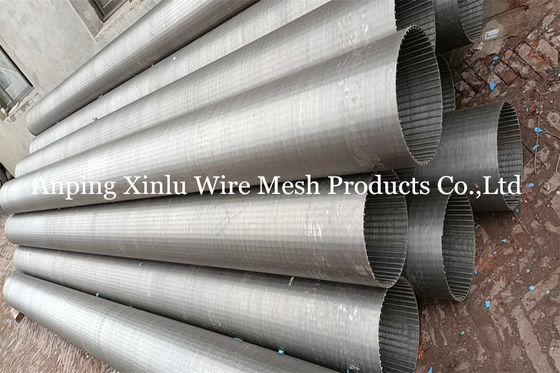

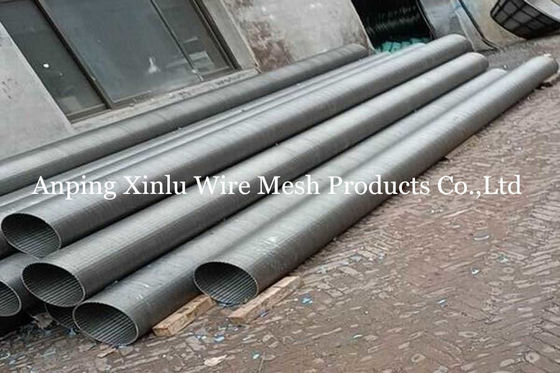

6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well

6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well
6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well

Large Image :  6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 022
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well

Description
Another Name: 6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well Material: SS304
Surface Treatment: Electrolytic Polishing End Connection: API STC
Collapse: ≥80 Bars Tensile Strength: ≥45 Tonnes
Weight: 92kg/pcs Legnth: 5.8m
High Light:

304 Vee Wire Screen Pipe

,

6m Length Wire Screen Pipe

,

Electrolytic Polishing Wire Wrapped Screens

6m Length SS Grade 304 Vee Wire Screen Pipe Infiltration Gallery At Intake Well



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,



SS V-Wire Wrapped Screen Pipe For Infilteration Gallery At Intake Well



V-Wire Wrapped Screen Pipe Description:



The stainless steel V-wire Wrapped Screen Pipe is a kind of metal mesh structure element used for screening and filtering.It is composed of wrapped wire and support rods, the slot size is accurate, high filtration accuracy; Strong structure, high temperature and corrosion resistance; It can be used for a variety of media filtration.



The stainless steel V-Wire Wrapped Screen Pipe independently developed and produced by Hengyuan company has reached the standard of the Ministry of Petroleum Industry of the People's Republic of China. It is used in various coarse and fine filtration in power plant, mixing bed, chemical industry, oil well, water well, natural gas well, sand control, filtration, metallurgy, papermaking, environmental protection, seawater desalination and other industries. Excellent production is our basic requirements, different technology, of course, different quality, and the general production of rough, cheap products are different.

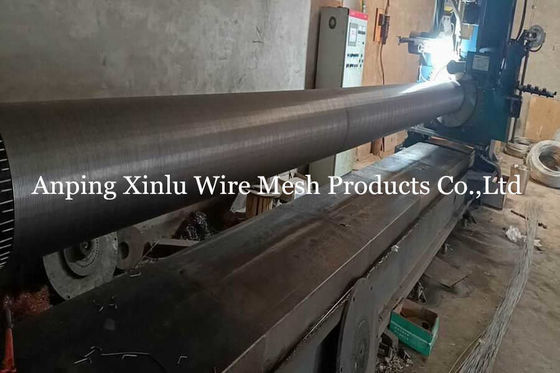

The stainless steel V-Wire Wrapped Screen Pipe produced by our company is made of stainless steel wire with special section and welded by advanced technology on special equipment. It has the characteristics of simple structure, easy to use, high strength, light weight, strong corrosion resistance, large filtration area and good seepage performance.



Welcome customers to send drawings customized.



V-Wire Wrapped Screen Pipe Regular Specification:



Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen fiter,Sand control screen, Wedge wire screen pipe, Rotary fiter drum,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,904L,Duplex steel elc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to ft container)
Wrap wire: 2x3.5mm, 2.2x3.5mm, 2.2x4.5mm, 3x4.6mm, 3x5mm, 3x6mm, 3x6.5mm, 3.2x6mm, 4x7mm, etc;
Support rod: 3.0- 6.0mm round wire;Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water WelI,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens, Environmental protection, Refining & Petrochemical, Architecture & Construction etc.
sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength
wrap wire
vee-shaped wire (mm)
support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2

2.2x3.5

(Width x height)

3.8MMx22
4-1/2 114.3 1 2.9 >28 11.5

2.2x3.5

(Width x height)

3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8

2.2x3.5

(Width x height)

3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8

2.2x3.5

(Width x height)

3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45

3.2x6.0

(Width x height)

6.OMM×32
8-5/8 219.1 1 5.8 >34 21.9

2.3x3.5

(Width x height)

3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2

3.0x5.0

(Width x height)

4.0MMx48
8-5/8 219.1 1 5.8 >60 46

3.2x6.0

 (Width x height)

5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9

2.2x3.5

(Width x height)

4.0MM×55
10-3/4 273.1 1 5.8 >60 39.5

3.0x4.6

 (Width x height)

4.8MMx55
10-3/4 273.1 1 5.8 >100 48

3.2x6.0

(Width x height)

5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2

3.0x5.0

(Width x height)

4.0MMx56
14 355.6 1 2.9 >80 37.8

3.0x5.0

(Width x height)

4.0MMx59
16 426 1 2.9 >80 37.5

3.0x5,0

(Width x height)

4.0MM×64
 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Johnson Wrapped Wire Water Well Screen Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
