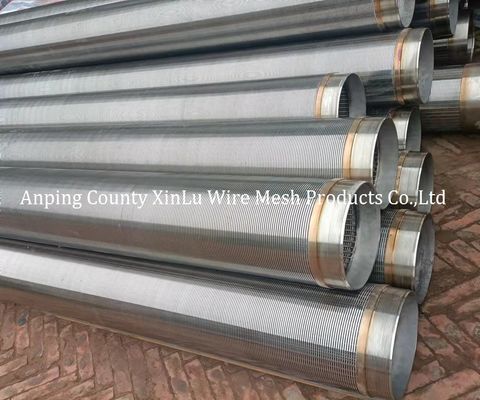

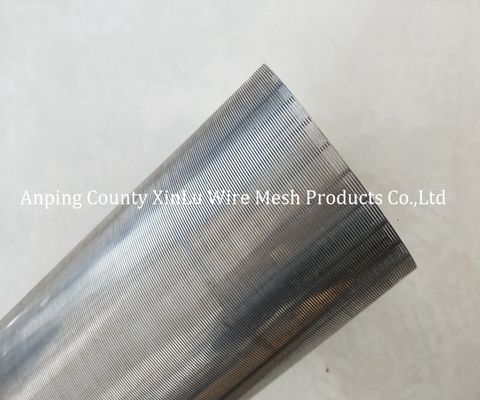

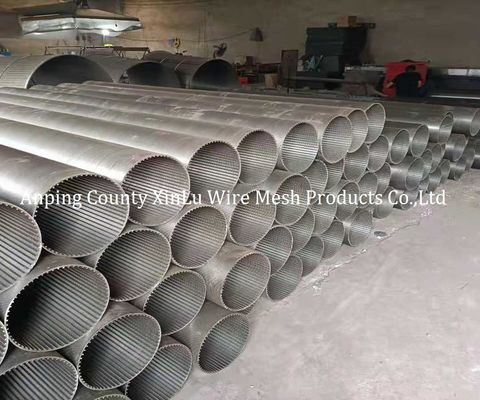

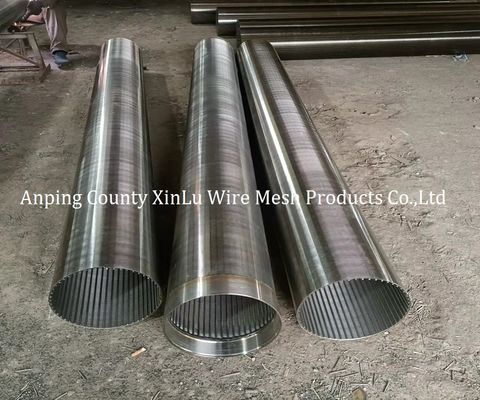

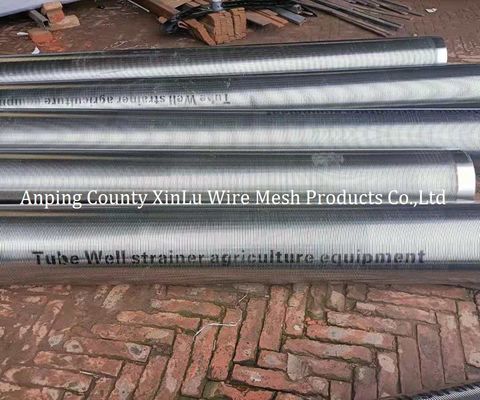

Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge

Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge
Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge

Large Image :  Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 024
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

Stainless Steel Wedge Wire Wrap Screen Pipe 9-5/8" Filter Cartridge

Description
Another Name: 9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe Filter Type: Wire Wrapped Screen Tube, Wire Wrapped Screen Pipe, Wire Wrapped Filter Tube
Material: SS304, 316L, 321, Duplex Stainless Steel, Hastelloy Surface Treatment: Electrolytic Polishing
End Connection: Welded Rings, Threaded, Flange, Blind End Cap Collapse: ≥80 Bars
Tensile Strength: ≥45 Tonnes Tag: Cartridge Stainless Steel Wedge Wire Screen, Filter Stainless Steel Wedge Wire Screen, Cartridge Wedge Wire Filter Screen
High Light:

Stainless Steel Wedge Wire Wrap Screen

,

9-5/8" Wire Wrap Screen

,

Filter Cartridge Wire Wrap Screen

9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,



9-5/8" Filter Cartridge Stainless Steel Wedge Wire Wrap Screen Pipe



Filter Cartridge Wedge Wire Wrapped Screen Filter Pipe Description:

The stainless steel wire wrapped screen filter is a kind of metal mesh structure element used for screening and filtering.



Filter Cartridge Wedge Wire Wrapped Screen Filter Pipe Process:

Made of stainless steel wire by special equipment forming and welding.



Filter Cartridge Wedge Wire Wrapped Screen Filter Pipe features:



1, Not jam: silk screen face cross section is a triangle, screen two root surface cracks on wire on the adjacent two acute form, solid content through the sieve tube, and two sides of the gap form point contact, therefore, in theory, on the screen of the solid particles or trapped on the screen, either through the sieve tube aperture, impossible to form a third congestion state. To reduce the operational resistance equipment, maintain good water distribution characteristics, resin backwashing are very important.


2, The intensity is high, because of this component is made form the stainless steel wire around the welding structure, so it is of high intensity, the screen can be cut on the grinding wheel cutter, can also be on a lathe processing loose end face and does not cause deformationT


3, Large flow: the screen has a smaller resistance, compared with the similar size shape of the plastic filter, greatly increased the flow area of it, so under the same resistance, flux flow rate increased. In other words, under the condition of the same output, the use of filtering cartridge number can be reduced accordingly.


4, Good temperature adaptability: obviously compared with the ordinary plastic filter, the temperature of the stainless steel wire wrapped screen has a much wider scope than plastic filter.


5, Clearance adjustable: different users, using different filtration equipment and filter medium, the internal wire wrapped screen wire spacing requirements are different. Because this is a screen on the device continuously around the weld, and so the trapezoidal stainless steel wire between the clearance can be adjusted. In this way, without any increase in costs under the premise of suitable for the needs of different users, and the plastic filter to adjust the gap to make mould, so it's not easy to apply the user's needs. Small gaps can reach 20 microns.


6, The corrosion resistance: for neutral water, acid water and alkaline water, hydrochloric acid, sulfuric acid, salt, etc., appropriate chooses the material, can economic and security operation of filtering equipment.

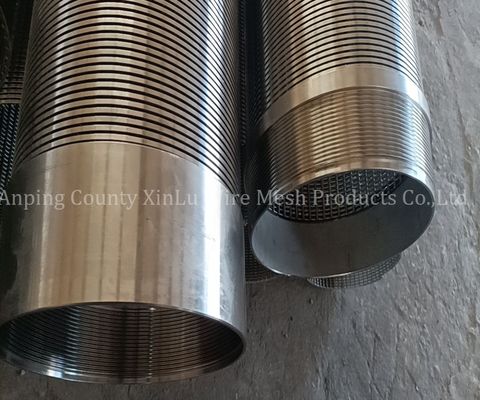

Connection mode: welding ring, threaded connection, flange connection
Material: 304304 L, 321316 L, 2205904 L, hartz alloy, etc.
Strengthening way: punching pipe, cross, flange ring.



Filter Cartridge Wedge Wire Wrapped Screen Filter Pipe Regular Specification:



Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen fiter,Sand control screen, Wedge wire screen pipe, Rotary fiter drum,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,904L,Duplex steel elc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to ft container)
Wrap wire: 2x3.5mm, 2.2x3.5mm, 2.2x4.5mm, 3x4.6mm, 3x5mm, 3x6mm, 3x6.5mm, 3.2x6mm, 4x7mm, etc;
Support rod: 3.0- 6.0mm round wire;Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water WelI,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens, Environmental protection, Refining & Petrochemical, Architecture & Construction etc.
sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength
wrap wire
vee-shaped wire (mm)
support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2

2.2x3.5

(Width x height)

3.8MMx22
4-1/2 114.3 1 2.9 >28 11.5

2.2x3.5

(Width x height)

3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8

2.2x3.5

(Width x height)

3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8

2.2x3.5

(Width x height)

3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45

3.2x6.0

(Width x height)

6.OMM×32
8-5/8 219.1 1 5.8 >34 21.9

2.3x3.5

(Width x height)

3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2

3.0x5.0

(Width x height)

4.0MMx48
8-5/8 219.1 1 5.8 >60 46

3.2x6.0

 (Width x height)

5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9

2.2x3.5

(Width x height)

4.0MM×55
10-3/4 273.1 1 5.8 >60 39.5

3.0x4.6

 (Width x height)

4.8MMx55
10-3/4 273.1 1 5.8 >100 48

3.2x6.0

(Width x height)

5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2

3.0x5.0

(Width x height)

4.0MMx56
14 355.6 1 2.9 >80 37.8

3.0x5.0

(Width x height)

4.0MMx59
16 426 1 2.9 >80 37.5

3.0x5,0

(Width x height)

4.0MM×64
 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Filter Cartridge Wedge Wire Wrapped Screen Filter Pipe Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
