0.5m Legnth Water Well Screen Pipe SS AISI304 304L 302 316 316L Wedge Wire

SS AISI304, 304L, 302, 316 or 316L Wedge Wire Well Screen Filter Pipe

wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,

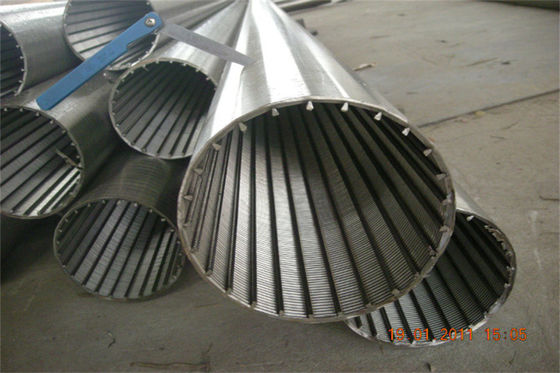

Oil & gas well and water well screen of wedge wire structure, fitted with slotted tubes / liners for well screen casing protection and support. Also known as V Slot Well Screen, Water Well Sand Filter or Well Screen Strainer.

Xinlu factory also supplies Stainless Steel couplings, flange and other fittings for the complete SS well screens. The screen is connected by welding or threaded male /female couplings. It can be used in many kinds of medium filtering.

Wedge Wire Well Screen Filter Pipe Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry

Customer Service: Custom well screens

Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.

Main specs for Wedge Wire Well Screen Filter Pipe

Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials

Slot opening size: 0.1mm-15mm

Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm

Length: 2.9m, 5.85m. The maximum length is 6.05m

Connection method: beveled, circumferential welded, threaded connection

Wedge Wire Well Screen Filter Pipe Specification

General Technical Information Wedge Wire Well Screen Filter Pipe

Profile wire or wedge wire material:
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.70,5.5

Support rods:
Width(mm): 2.0,2.3,2.5,3.0,3.3,3.7,4.0,4.5.
Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.5,4.7,5.5.
Round rods : diameter from 2.50mm to 6.0mm. 1.8,2.3,3.0,3.3,3.7,4.0,4.5.
Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.70,5.5.
End Connection: By welding or by threaded male/female coupling.
Slot Size: 0.05,0.08,0.10,0.15,0.20,0.25,0.30,1.0,2.0,5.0... 45mm also achieved upon request.

Product Features: Wedge Wire Well Screen Filter Pipe

1. Continuous opening and high porosity of the SS well screen have greatly increased the water flow area.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pores.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Benefits of Using: Wedge Wire Well Screen Filter Pipe

1. Low cost operation: SS water well screens with high openning area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.

2. Reduction of the abrasion of the pump:
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much more slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.

3. Extend the life span of water wells:
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area metal wire screen.The slow water flow shall extend the life span of the water wells.

4. Reduced consumption of treated water for backwashing
5. Savings in filter height and volume
6. No maintenance, repair or shutdown
7. No need for suspended filter floor

Uses: Stainless steel well screen can be used with the deep well pump for the deep well operation, also used in the water-treating equipments and the environmental protection.

Detail applications listed as below:
1.The sea water transforming into the industrial water and life use water via desalination treatment, running water treatment, water softening treatment.
2. The petroleum industry: Terminal filters and filter screen for the chemical acid, the alkali liquid, the ethyl alcohol and other organic solution recycling filters.
