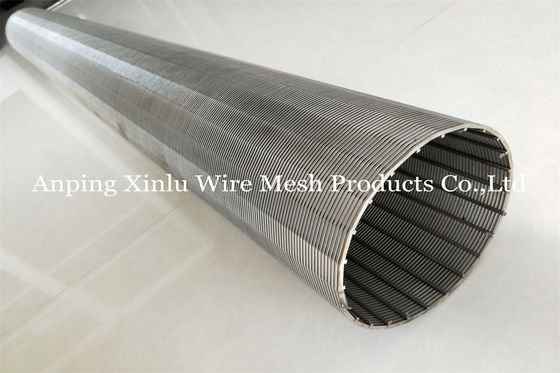

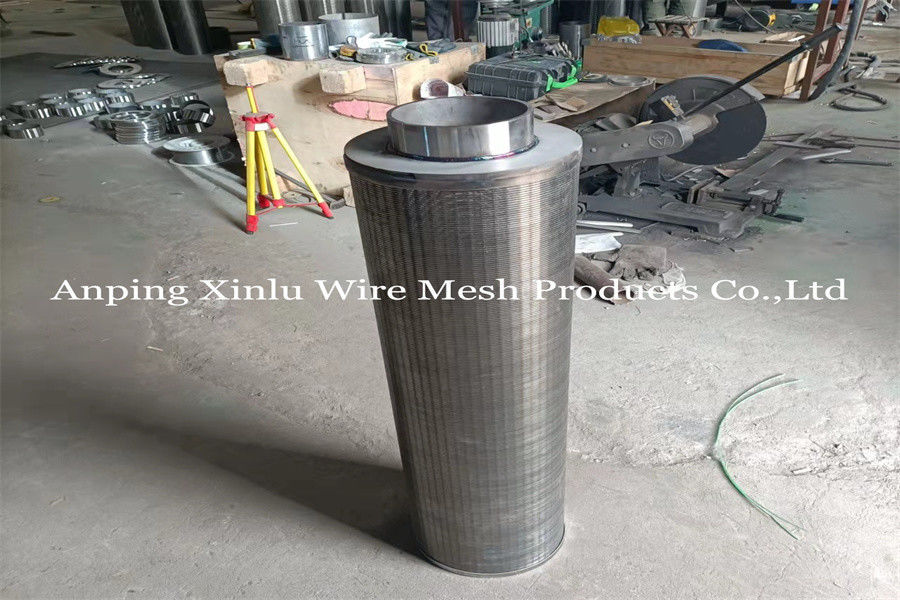

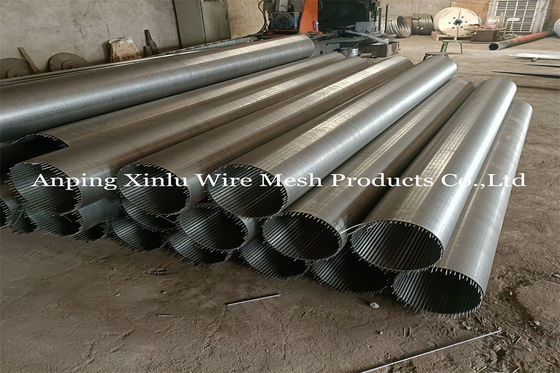

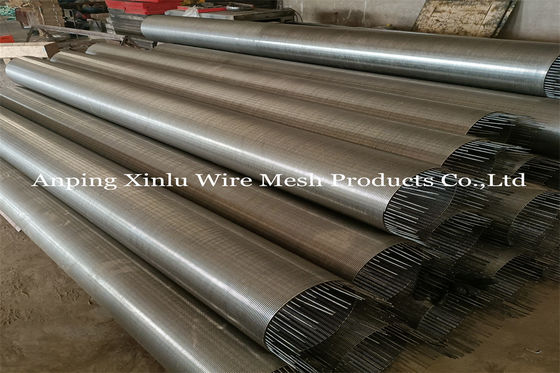

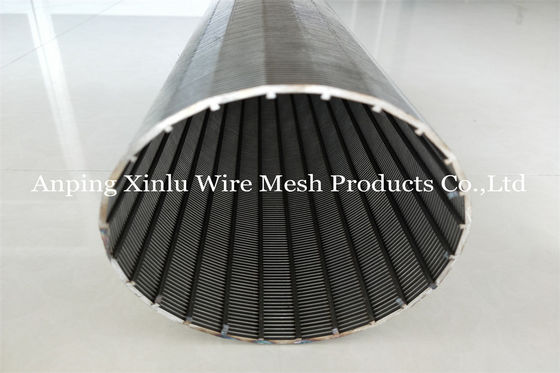

250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange

250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange
250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange 250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange 250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange 250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange 250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange 250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange

Large Image :  250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 027
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange

Description
Another Name: 250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange Welded Type: V Wire Wrapped Johnson Type Strainer Tube
Filter Joints: Flange And Welded Rings Surface: Polishing
Steel Pipe: 150mm X 50mm Profile Wire: 2.3x3.5mm
Support Wire: 2.5x4mm Legnth: 1m
High Light:

Johnson Wire Wrap Strainer Pipe

,

250mm Wire Wrap Strainer Pipe Screen

250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,



Product Quick Details:

1. 250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange
2. Filter joints welded rings and flange
3. Out diameter 250mm (10")
4. In length of 1meters
5. Steel pipe:
Φ150mm x 50mm
6. Flange:
Φ250mm x 15mm
7. V-wire - Openings 1.3mm (15Mesh)
8. Dimensions of the wire: L = 2.3 mm, H = 3.5mm minimum
9. Dimension of support rods: 2.5x4mm



250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Details



TECHNICAL SPECIFICATION : NB 1.5", 2", 3", 4", 6", 8", 10", 12", 14"

Slot(mm) 0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00

Lengths 6 Mts. & 3 Mts.

Grades Different grades suitable for tube well depths upto300 ft., 600 ft., 900 ft. and 1500 ft.

Material Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )

End Connection Plain beveled ends for butt welding or threaded.





Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Specification




SIZE

(INCH)



O.D

(MM)



SLOT

(MM)



LENGTH

(M)



COLLAPSE

STRENGTH

(BAR)



TENSILE

WEIGHT

(TON)

WRAP WIRE

(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3x3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3x3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0 6.0MM/32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3x3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0x5.0 4.0MM/59



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Johnson Wrapped Wire Water Well Screen Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
