10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well
10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well

Large Image :  10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wire Wrapped Screens - 030
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well

Description
Name: 10”Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For The Bore-Well Diameter: 10" (254mm Or 273mm)
Application: Bore Well, For Sand Control In Deep Tube Water Well, Water Filtering Industry, Dewatering Screen, Motor Filter, Pump Filter Technique: Wire-wound Continuous-slot Screens
Length: 2.95m, 5.85m Advantage: Heat Resisting, Corrosion Resistance, Smooth Surface, Easy Installation, No Angle And No Burrs
Surface: Electrolytic Polishing, Pickling And Polishing, Bright Connection: Welded Rings/Plain Beveled Ends; Male/female Threaded Coupling: API STC, PT NPT, BSP, G; Flange ; Closed Up, Open Ends Etc.
High Light:

10'' Wire Wrapped Screen Tube

,

SS304 Steel Wire Wrapped Screen Tube

,

Bore Well Wire Wrapped Screen Tube

10”Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch or 0.508mm Slot For The Bore-Well



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen. water wire screen,wound screen.



10”Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch or 0.508mm Slot For The Bore-Well

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 0

V Wire Wrap Screen Tube for wide range of well completion and work over operations.

These screens are known in variety of names like : water well screens , wedge wire well screens, v wire screens, continuous slot well screens, wire wrapped screens etc.

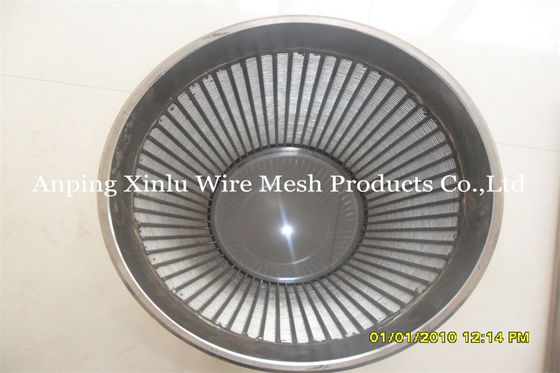

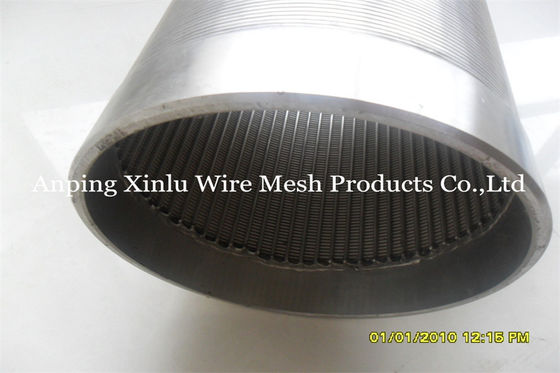

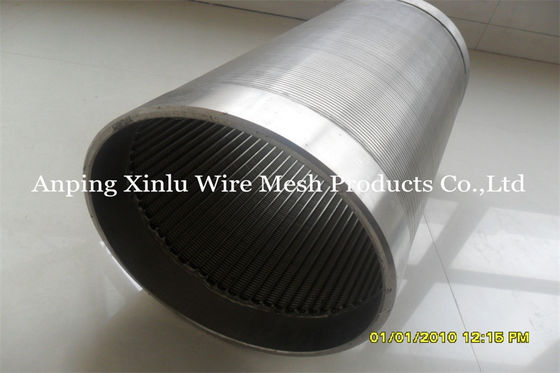

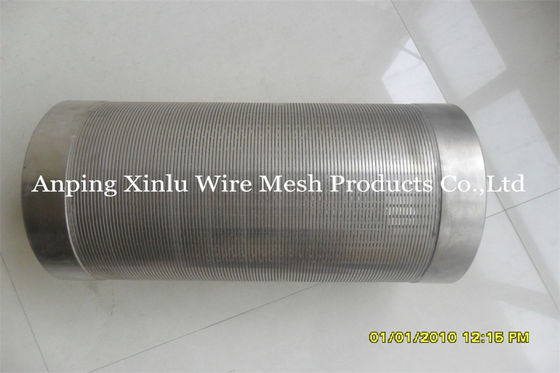

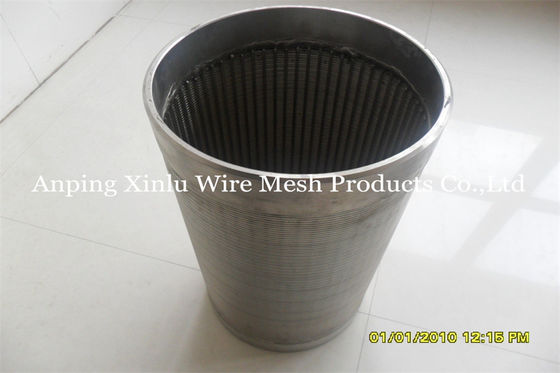

A wedge shaped wire is wrapped / spirally wound on internal array of support rods. Each and every intersection is welded automatically. This creates a continuous non clogging slot.

Sizes : Right from 1” dia to 36” dia & above

Slot : From 0.1 to 1.5mm & above

Lengths : 10 ft, 20 ft up to 40 ft in single piece construction

Material of Construction : Stainless Steel—300 Series, mild steel, Galvanized Low carbon



Uses: The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.



Wire Wrapped Screen Tube specification:



SIZE

(INCH)

O.D

(MM)

SLOT

(INCH)

LENGTH

(M)

COLLAPSE

STRENGTH

(PSI)

TENSILE

WEIGHT

(TON)

WRAP(thick*deep)

(MM)

RODS

(MM)

4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50



V-Wire Wrapped Screen Pipe Wire Specification

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 1



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----




Custom well screens



Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 2

10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 310'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 410'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 510'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 6



10'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 710'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 810'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 910'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 1010'' Diameter SS304 Steel Wire Wrapped Screen Tube 0.02 Inch Slot For Bore Well 11
