Johnon Type Wedge Wire Filter Tube for Water/Oil/Gas/Mining/Motor/Pump/Sewage Treatment/Groundwater Treatment/Waste
Product Description:

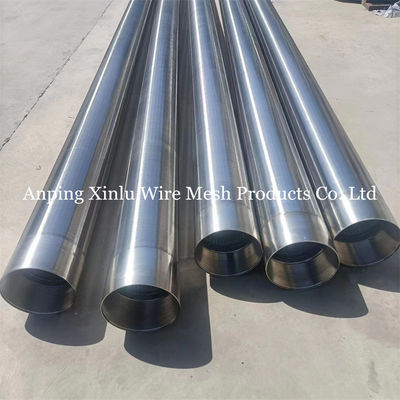

Water Well Screen Pipe
Water well screen pipe is a kind of well filter tube for water treatment, oil and gas exploration, mining and motor, pump and sewage treatment, groundwater treatment, waste water treatment, water ion exchange, sand filter, activated carbon filter, sugar industry, and paper industry. It is made of stainless steel304, 321, 316L, 205, 201, carbon steel Q235, Q195, duplex steel 2205, and alloy steel, and its support wire is 1.8x2.5mm, 2x3mm (Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm. The type of water well screen pipe can be perforated, wedge wire, Johnson screen, slotted liner, wound screen, and wire wrapped. The collapse pressure of the water well screen pipe can be up to 300 PSI.
Features:
- Product Name: Water Well Screen Pipe
- Benefits: Economaical, Suitable For Most Applications, Precision Openings
- Weight: 8-40kg/m2
- Material: Stainless Steel304, 321, 316L, 205,201/Carbon Steel Q235,Q195/Duplex Steel 2205/Alloy Steel
- Slot Size: 0.03mm To 10mm
- Surface Treatment: Electrolytic Polishing/ Pickling/Polished/Sand Blasting/Paint Coating
- Keywords: Water Well Filter Tube, Wire Wrapped Screen Tube, Groundwater Filtration Pipe
Technical Parameters:
| Parameter |
Details |
| Application |
Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry |
| Package |
Transparent Plastic Bags Inside, Woven Bags Outside/ Bubble Bags/Wooden Case/Pallet/Carton |
| Certificate |
ISO/API/CE/SGS |
| Weight |
8-40kg/m2 |
| Length |
2.95m, 10ft, 5.85m, Up To 20foot Or Customized |
| Screen type |
Standard Screen, Pipe-based Screen, Small Diameter Free-flow Well Screens.low Carbon Steel Well Screen,304 Stainless Steel Screen, Low Carbon Steel Galvanized Screens, Wire Wrapped Rod Base All Welded Screen |
| End Connection |
Threaded NPT, BSP, NPS/Flange/Welded Rings/Plain/Plain Beveled Ends For Butt Welding |
| Thickness |
5mm To 12mm |
| Supprot rods |
Φ2.5-6mm |
| Special features |
Reversed Construction: External Circumferential Inverted Wire And Axial Internal Support Rods (FITO), Normal Construction : External Circumferential Wire And Axial Internal Support Rods(FOTI) |
| Keywords |
Johnson Well Screen Pipe, Wire Wrapped Screen Tube, Stainless Steel Strainer Tube, Stainless Steel Sand Filter, Perforated Base Pipe |
Applications:
Xinlu Company Water Well Screen Pipe
Xinlu Company is a professional manufacturer of water well screen and strainer pipes. Our brand name is Xinlu Company and our Model Number includes 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", etc. Our pipes are certified by FORM E, CO and have Pressure (PSI) of 200 and Collaspe pressure (PSI) of 300. The Support wire is 1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm and the Support rods is Φ2.5-6mm. The Length of the pipes is 2.95m, 10ft, 5.85m, Up To 20foot Or Customized.
Our Water Well Screen Pipe is widely used for deep water well drilling, water filter, oil and gas well drilling, environmental protection, water treatment and other applications. It can be used in many places such as homes, companies, factories, farms, parks, etc. The advantages of our Water Well Screen Pipe include: high strength and wear-resistance, excellent anti-corrosion performance, long service life and low cost.
The Minimum Order Quantity is 10pcs and the Price is 30-120USD/m, according to the specification. The Packaging Details include Transparent plastic bags, woven bags, cartons, wooden boxes, pallets. We guarantee the Delivery Time to be 7-10days and the Payment Terms to be T/T. The Supply Ability is 500pcs/month.
If you need any Water Well Screen Pipe, please contact us at Xinlu Company. We guarantee the best quality at the most competitive price.
Customization:
Xinlu Company offers customised water well screen pipes with brand name, model number, place of origin, certification, minimum order quantity, price, packaging details, delivery time, payment terms, supply ability, special features, certificate, slot size, application, support rods and other specifications.
Brand Name: Xinlu Company
Model Number: 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", etc
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 10pcs
Price: 30-120USD/m, according to the specification
Packaging Details: Transparent plastic bags, woven bags, cartons, wooden boxes, pallets
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 500pcs/month
Special Features: Reversed Construction: External Circumferential Inverted Wire And Axial Internal Support Rods (FITO), Normal Construction : External Circumferential Wire And Axial Internal Support Rods(FOTI)
Certificate: ISO/API/CE/SGS
Slot Size: 0.03mm To 10mm
Application: Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry
Support rods: Φ2.5-6mm
Xinlu Company's water well screen pipes are specifically designed for filtration and separation applications in water wells, and are made of high quality wedge wire screen pipe. These wedge wire screen pipes are highly efficient and are available in various sizes and shapes, as well as a variety of slot sizes.
Support and Services:
We provide technical support and service for Water Well Screen Pipe. We are committed to providing our customers with the highest quality products and services available.
We offer professional technical advice and support to ensure that products are correctly selected and installed, and that the most cost-effective solutions are found. We have a team of experienced engineers who are available to assist with any technical queries or provide advice on installation and maintenance.
We also offer after-sales support, including advice on repairs and replacement parts, and a range of maintenance and inspection services. We provide a range of training courses to ensure that customers are confident and competent in the use of our products.
Our technical support and service team are available 24/7 and can be contacted by telephone, email or online chat. We are committed to providing our customers with the highest quality products and services available.
Packing and Shipping:
Packaging & Shipping of Water Well Screen Pipe
Our Water Well Screen Pipes are packaged in sturdy wooden crates, cardboard boxes, and other types of packaging materials that are designed to protect the product during transit. We also use a variety of shipping methods such as express delivery, ground shipping, and air freight, depending on the customer's needs.
To ensure the safe delivery of our Water Well Screen Pipes, we always use the latest technologies for tracking and tracing shipments, and we provide detailed instructions for the unloading and installation of the pipes.
FAQ:
- Q1: What is the brand name of this Water Well Screen Pipe?
- A1: The brand name of this Water Well Screen Pipe is Xinlu Company.
- Q2: What is the model number of this Water Well Screen Pipe?
- A2: The model number of this Water Well Screen Pipe is 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", etc.
- Q3: Where is this Water Well Screen Pipe made?
- A3: This Water Well Screen Pipe is made in Anping County Xinlu Wire Mesh Products Co.,Ltd.
- Q4: What is the minimum order quantity of this Water Well Screen Pipe?
- A4: The minimum order quantity of this Water Well Screen Pipe is 10pcs.
- Q5: What is the price range of this Water Well Screen Pipe?
- A5: The price range of this Water Well Screen Pipe is 30-120USD/m, according to the specification.
