304 Stainless Steel Threaded Coupling 114mm Wedge Wire Screen Pipe All Welded
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.

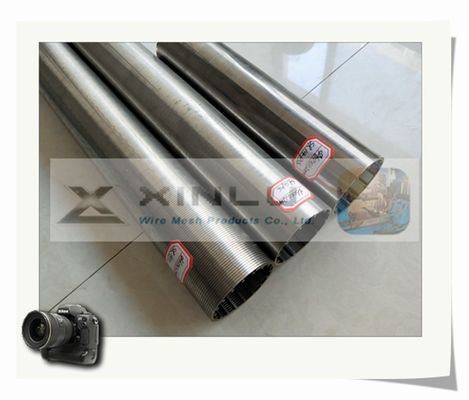

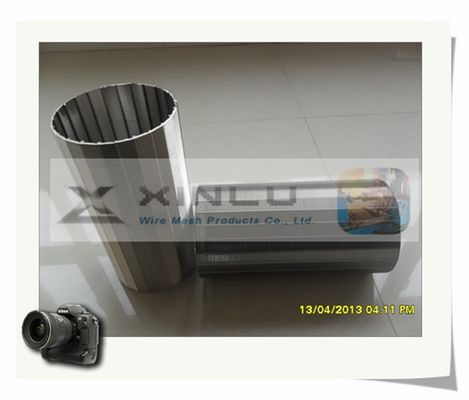

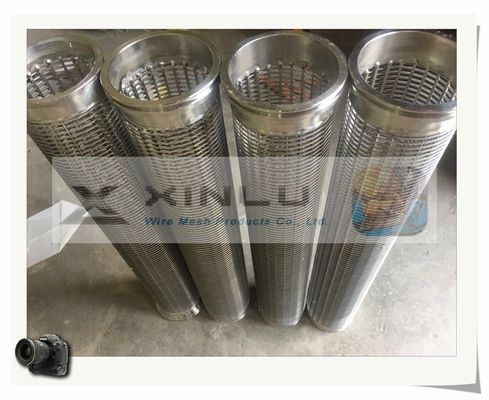

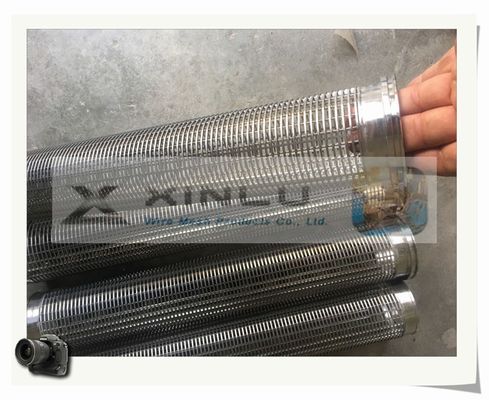

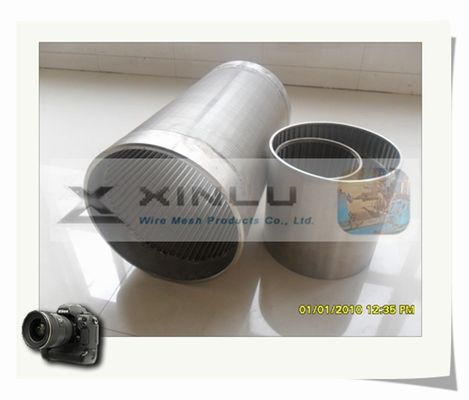

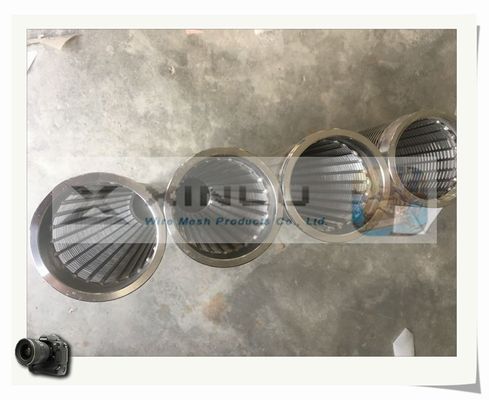

All-welded wedge wire-wound screen pipe
All-welded wedge wire-wound screen pipe is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Regular Specification:
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3*3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3*3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3*3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3*3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2*6.0 |
6.0MM*32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3*3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0*5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2*6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3*3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2*6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0*5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0*5.0 |
4.0MM/59 |
| Wedge Wire Johnson type Filter Screen Mesh |
| Specification (Profile wire): |
Width(mm): 1.0 1.5 1.8 2.0 2.2 2.5 3.0 3.2 etc.
Height(mm): 2.0 2.5 3.0 3.5 4.6 5.0 6.0 etc. |
| Specification (support rods) |
Width(mm): 1.8 2.0 2.3 2.5 3.0
Height(mm): 2.5 3.0 3.5 4.0 4.6 5.0 6.0
Round: From ø2.5mm to 6.0mm round wire |
| Note: other wires and rods available upon request |
| Slot size (mm) |
0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. |
| Material |
Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.) |
| Length |
Upto 6 meters |
| Diameter |
24-1300mm |
| Screen ends |
Plain beveled ends, male/female threaded, flange, close up. |
| Other sizes available on request. |
|
Advantage
|
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
|
Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Characteristic:
1. Easy to leak, wear and corrosion resistance.
2. The cross section of the mesh is trapezoidal. The gap is narrow at the top and wide at the bottom.
3. It is a screen bar made of cold-rolled stainless steel wire. The support bar is welded by automatic mine screen production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength is high. Rigidity and bearing capacity can be made into rigid screening and filtering devices of various shapes.
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
