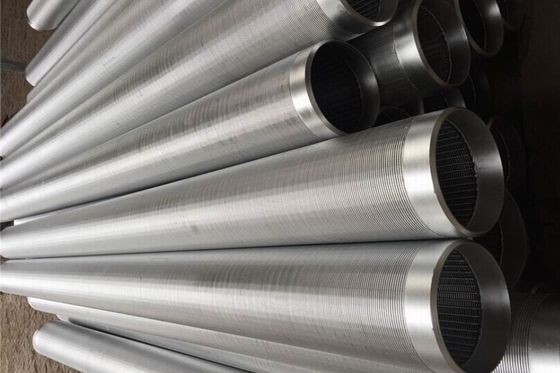

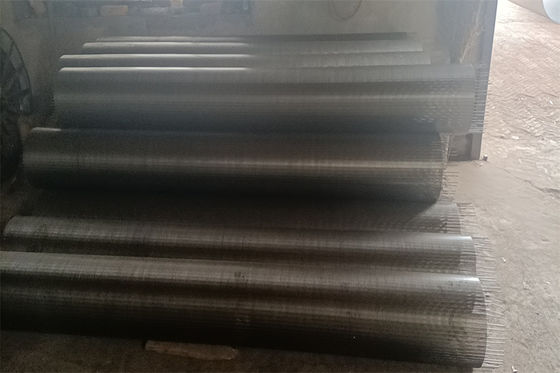

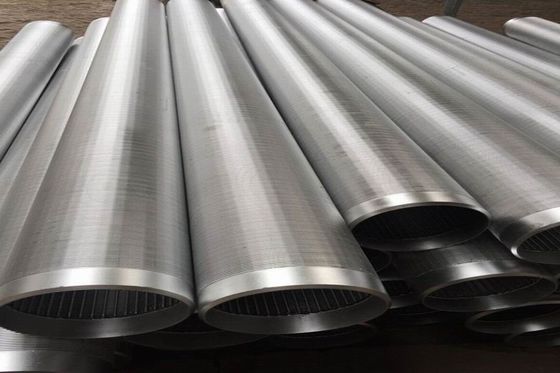

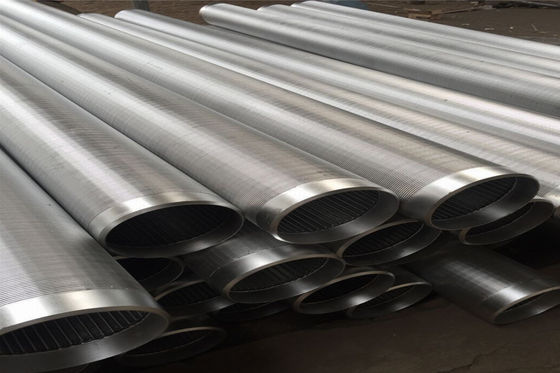

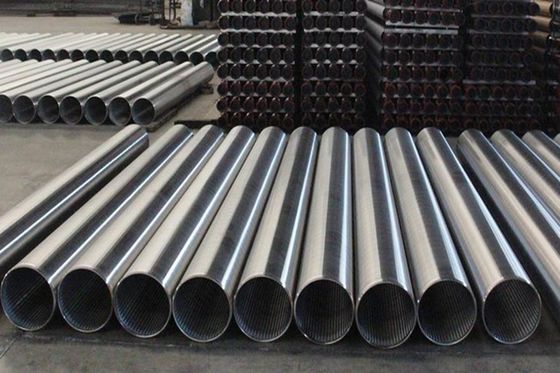

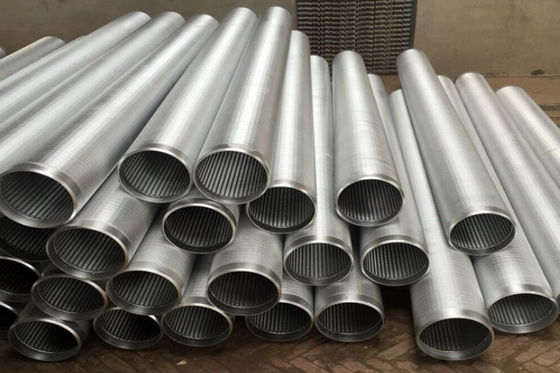

Grade 304 Stainless Steel V Shaped 219mm Wedge Wire Screen Pipe All Welded
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
Water removal on construction sites is often required before excavation can begin. This process is carried out to diver water away from the soil where the building foundation will be placed, keeping the area dry and solid. Xinlu’s wedge wire screen pipe are widely used on drainage pipes in construction sites to filter out sand from the water, and improve the water removal efficiency.
Features of wedge wire screen pipe
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Pressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
5. The wedge mesh filter(Johnson pipe) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The back-washing energy can be gathered when flushing, and the back washing effect is good.
Package of the water well steel slotted screen pipe:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Each case is clearly marked with:
Material: LCG Water Well Screen
Slot: 1.0mm, or customized
Diameter: 2", 3", 4" , 6", 8", 10", 12",
Or customized
Regular Specification:
| Wedge Wire Johnson Well Screen Pipe |
| Specification (Profile wire): |
Width(mm): 1.0 1.5 1.8 2.0 2.2 2.5 3.0 3.2 etc.
Height(mm): 2.0 2.5 3.0 3.5 4.6 5.0 6.0 etc. |
| Specification (support rods) |
Width(mm): 1.8 2.0 2.3 2.5 3.0
Height(mm): 2.5 3.0 3.5 4.0 4.6 5.0 6.0
Round: From ø2.5mm to 6.0mm round wire |
| Note: other wires and rods available upon request |
| Slot size (mm) |
0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. |
| Material |
Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.) |
| Length |
Upto 6 meters |
| Diameter |
24-1300mm |
| Screen ends |
Plain beveled ends, male/female threaded, flange, close up. |
| Other sizes available on request. |
|
Advantage
|
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
|
Advantages of Wedge Wire Screen Pipe:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
Anping XinLu wire mesh products co.,ltd, it is a manufacturer and exporter of wedge wire screen products.
-----------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
