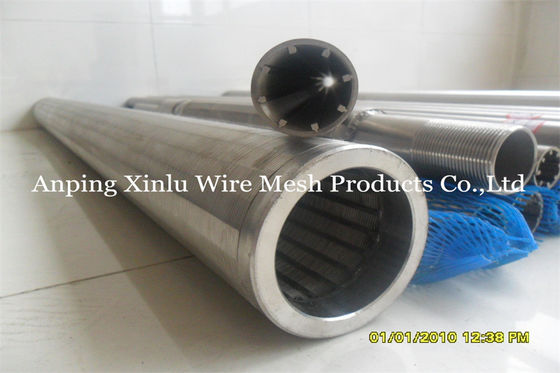

Welding Ring Johnson Wedge Wire Screens With Point Welding Technique
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.

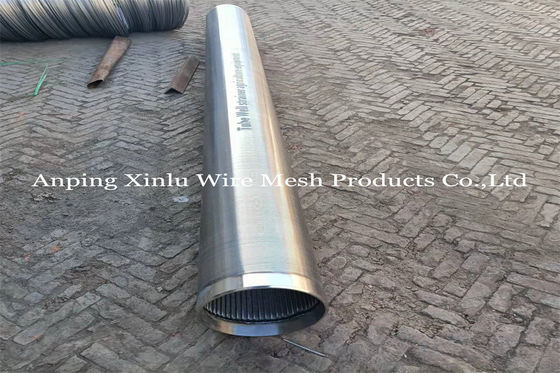

Welding Ring Johnson Wedge Wire Screens, Profile Wire Screens

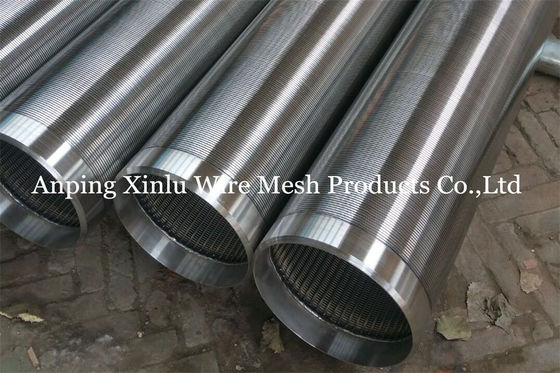

Welding Ring Johnson Wedge Wire Screens, Profile Wire Screens
| Features |
1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body
5. High corrosion resistant;
6. Long-use time;
7. Easy-cleaning;
8. Rust resistant;
9. Non-clogged
|
| Applications |
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Waste water-treatment
water well drilling
oil well drilling
mineral processing,
refining & petrochemical and other areas
|

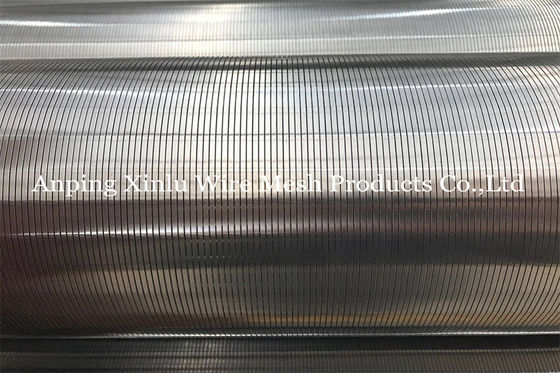

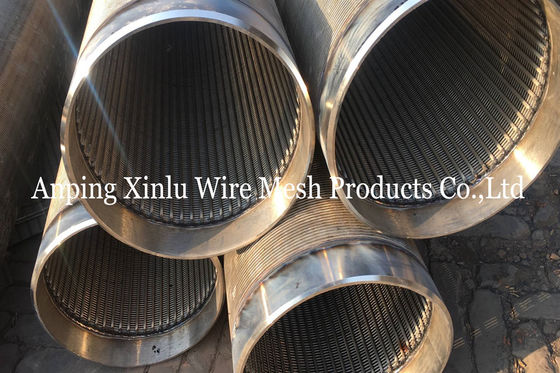

Welding Ring Johnson Wedge Wire Screens, Profile Wire Screens

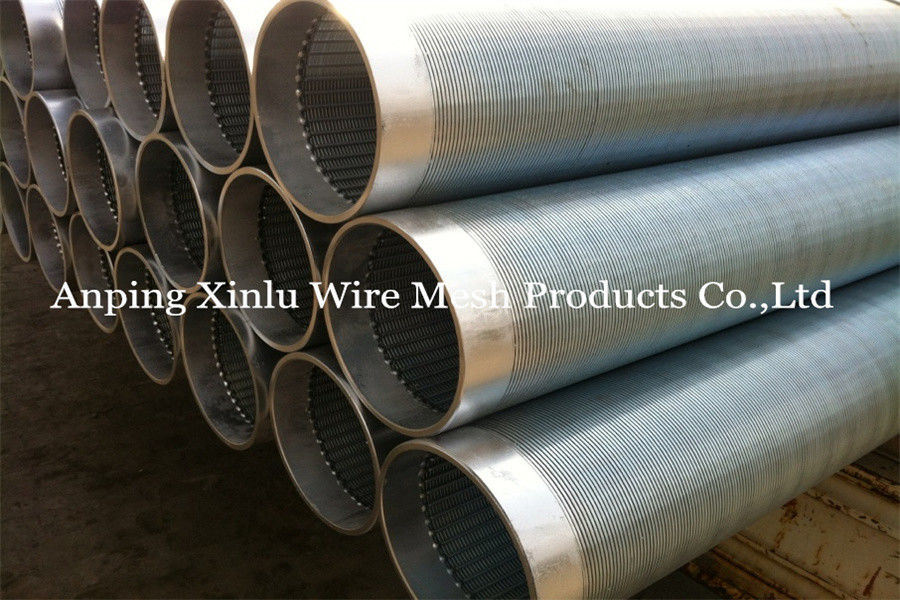

| Water Well Screen |
| Specification (Profile wire): |
Width (mm) : 1.50 1.80 2.30 3.00 3.30 3.70
Height (mm) : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rods): |
Width (mm) : 2.30 3.00 3.30 3.70
Height (mm) : 2.70 3.60 4.70 5.60 6.30
Round : From 2.50mm to 6.5mm |
| Note : other wires and rods available upon request |
| Slot size |
0.10 , 0.15 , 0.20 , 0.25 , 0.30 …… 6.00mm also achieved upon request . |
| Material: |
Mild steel wire, iron, Low Carbon Galvanized wire ( LCG ) ,Stainless Steel ( 205B,304, 316L, 321 etc .) |
| Length |
2.9 meters ,3 meters, 5.8 meters , 6 meters. |
| Diameter |
1-1/2 ″, 2 ″, 2-1/2 ″, 3 ″, 3-1/2 ″, 4 ″, 4-1/2", 6 -5/8″,7 ″, 8 -5/8″, 9- 5/8 ″, 10 ″, 10-3/4", 12-3/4 ″, 13 -3/8 ″, 14 ″, 16 ″ |
| Screen end |
Plain beveled ends for butt welding or threaded, Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
|
Other sizes available on request. Deep well construction specifications available on question.
Well depths :100 m, 200 m, 350 m & 600 m.
|
| Advantage
|
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
|
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
