Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen

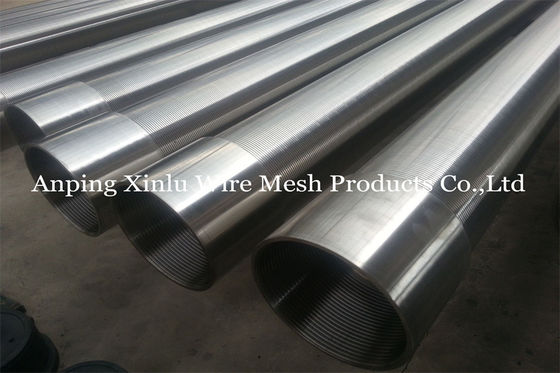

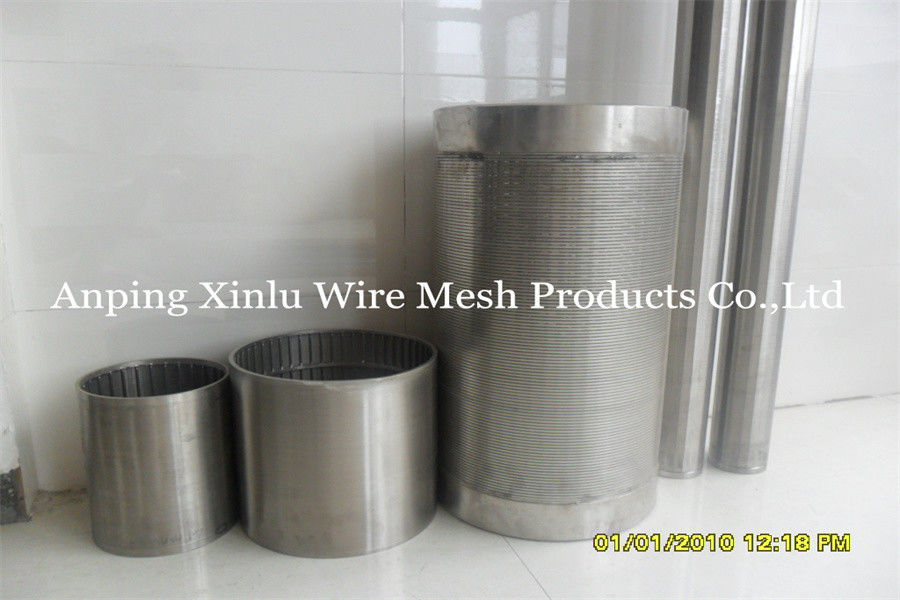

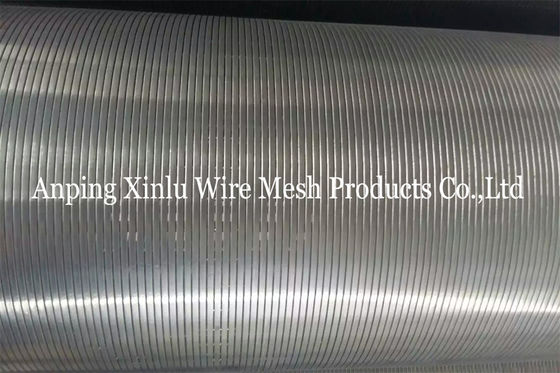

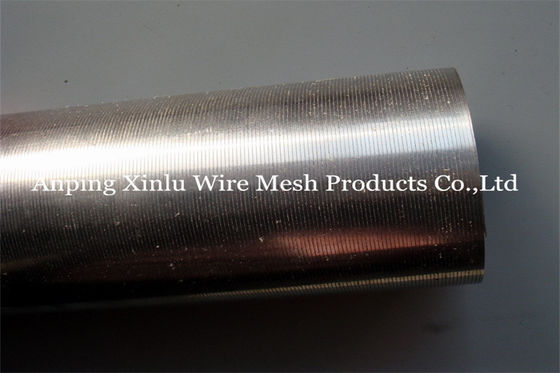

Wedge wire screen also be named Vee-wire screen pipe. Continuous slot vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .Accurate slot and high filtration precision .
1. Material: Stainless steel 201/304/304L/316/316L/321 etc
2. Opening / Slot: 0.05mm - 100mm
3. Max Length: 6m

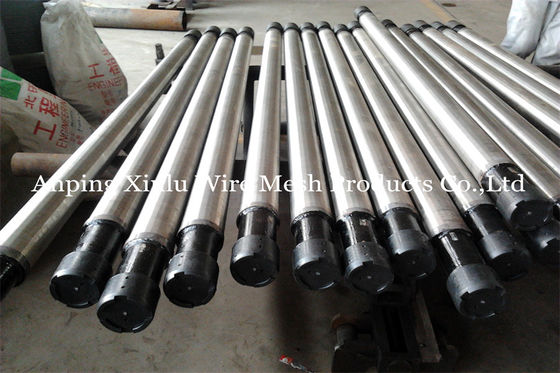

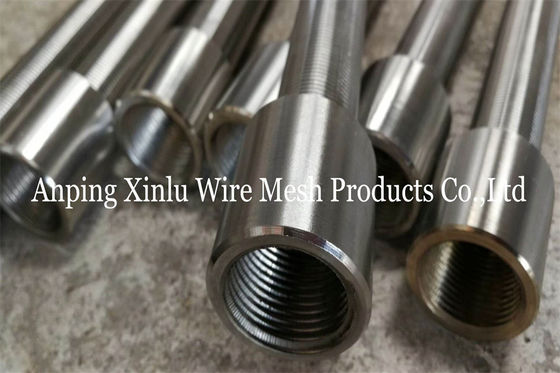

4. End connection: Welded rings; Male/female threaded; Closed up; Flange and so on.
5. Diameter:29-1500mm
6. Wire size: 1x2mm, 1.2x2mm, 1.5x2mm, 1.8x2.5mm, 2x3mm, 2.3x3.5mm, 3x4.6mm, 3x5mm
Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen Flow type
Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen
| Water Well Screen |
| Specification (Profile wire): |
Width (mm) : 1.50 1.80 2.30 3.00 3.30 3.70
Height (mm) : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rods): |
Width (mm) : 2.30 3.00 3.30 3.70
Height (mm) : 2.70 3.60 4.70 5.60 6.30
Round : From 2.50mm to 6.5mm |
| Note : other wires and rods available upon request |
| Slot size |
0.10 , 0.15 , 0.20 , 0.25 , 0.30 …… 6.00mm also achieved upon request . |
| Material: |
Mild steel wire, iron, Low Carbon Galvanized wire ( LCG ) ,Stainless Steel ( 205B,304, 316L, 321 etc .) |
| Length |
2.9 meters ,3 meters, 5.8 meters , 6 meters. |
| Diameter |
1-1/2 ″, 2 ″, 2-1/2 ″, 3 ″, 3-1/2 ″, 4 ″, 4-1/2", 6 -5/8″,7 ″, 8 -5/8″, 9- 5/8 ″, 10 ″, 10-3/4", 12-3/4 ″, 13 -3/8 ″, 14 ″, 16 ″ |
| Screen end |
Plain beveled ends for butt welding or threaded, Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
|
Other sizes available on request. Deep well construction specifications available on question.
Well depths :100 m, 200 m, 350 m & 600 m.
|
| Advantage
|
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
|
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
