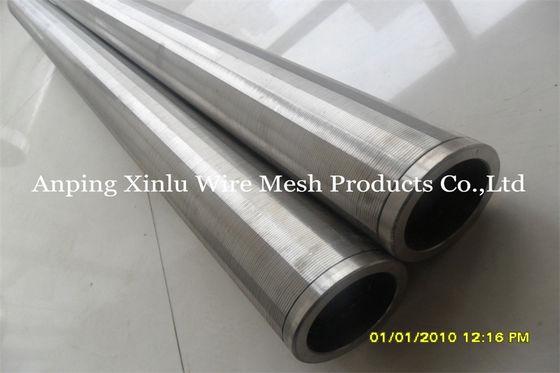

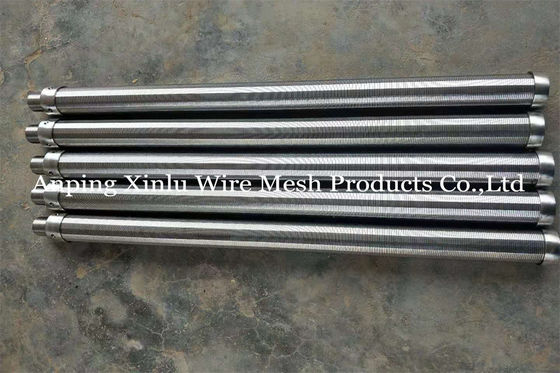

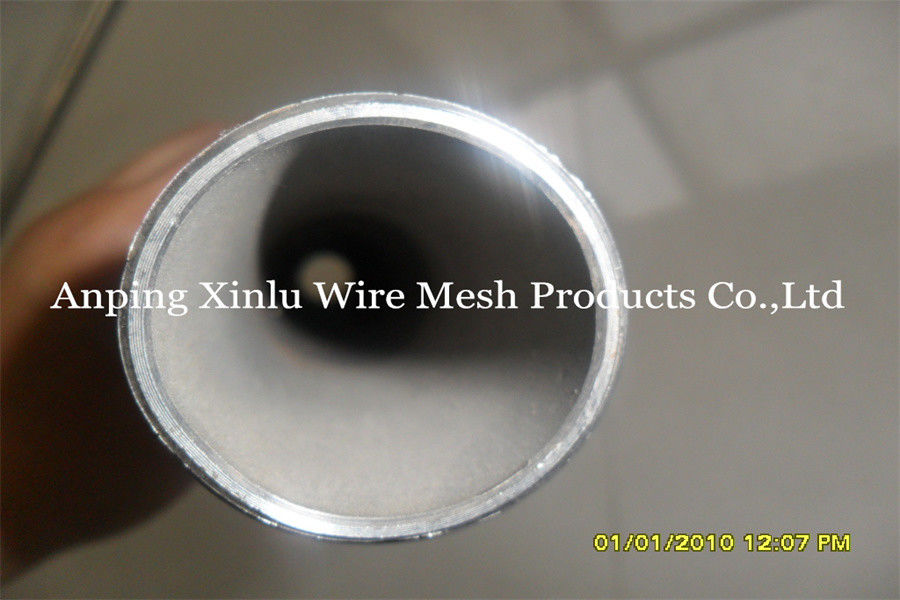

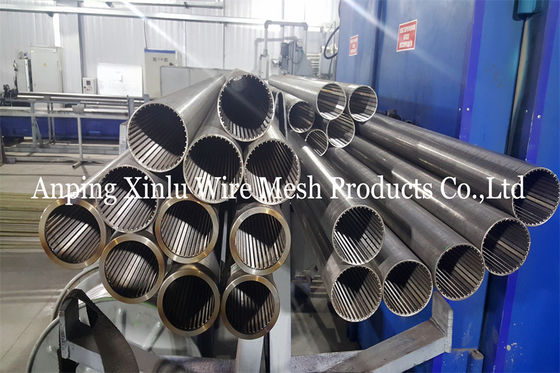

3-1/2" SS Dewatering Sand Control Johnson Wire Screen
Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Introduction of Dewatering Sand Control Johnson Wire Screen:
Dewatering Sand Control Johnson Wire Screen, also known as the water well screen, wire wrapped screen, wound screen, wedge wire screen, is widely used in oil, gas, water well sand control industry, especially in the water well industry prominent position, widely used in water resources filter screen pipe. Stainless steel dewatering sand control Johnson wire screen using full welding production process, the application of special trapezoidal wire winding in a circumferential arrangement of a group of supporting wire welding from.
Dewatering Sand Control Johnson Wire Screen Performance Characteristics:
The application of trapezoidal wire, so that the screen tube gap between the formation of V shaped opening.
The trapezoidal wire continuous winding forms continuous high-density uniform gaps on the supporting wires arranged in a circular manner.
The winding wire and all supporting wire are connected by electric welding, durable, long working life cycle.
According to the actual needs of the design of support wire longitudinal arrangement and the continuation of the screen gap form, the stainless steel screen high compressive performance
Dewatering Sand Control Johnson Wire Screen Parameters:
1. Filter Gap (mm) : 0.05mm, 0.1mm. 25mm, 0.5mm, 0.63mm, 0.75mm, 1.0mm in usual. (Min slot: 0.025mm)
2. The opening area is up to 80%.
3. Material: Non-magnetic Stainless steel, low carbon steel, low carbon steel galvanized, stainless steel (201, 304, 316L, 321, 904L.) ,Duplex steel etc.
4. The length is 5.8 meters or 2.9 meters to fit container. From 100-6000mm
5. Outside diameter From 29-1300mm (Normal diameter is in the below table)

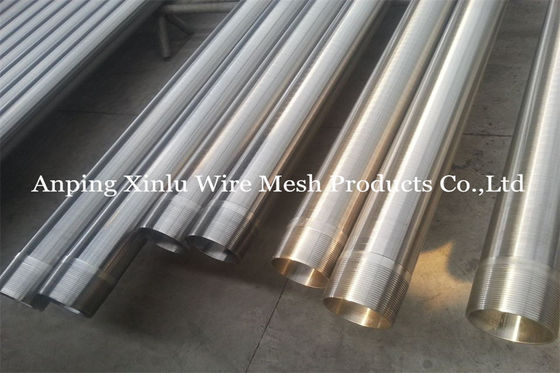

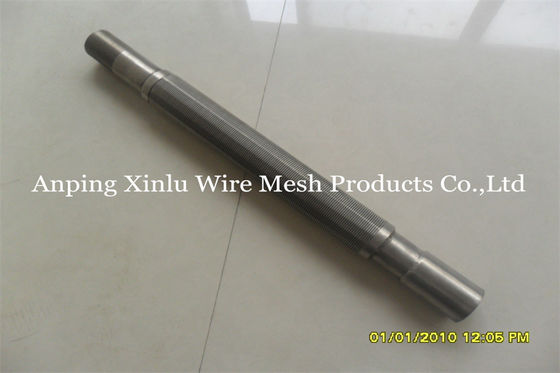

6. Connection type: Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
7. Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc.
8. Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
9. Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical, Architecture & Construction etc.
Dewatering Sand Control Johnson Wire Screen Information:
|
Sizes
(inch)
|
OD
(mm)
|
Slot
(mm)
|
Length
(m)
|
Tenslie
Strength
|
Collapse Strength |
Wrap wire
Vee-shaped wire(mm)
|
Support rod
Round wire(mm)
|
| 3-1/2 |
88.9 |
1.0 |
2.9 |
＞22 |
10.2 |
2.2x3.5 (Widthxheight) |
ø3.8MM×22 |
| 4-1/2 |
114.3 |
1.0 |
2.9 |
＞28 |
11.5 |
2.2x3.5
(WxH)
|
ø3.8MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.2x3.5
(W x H)
|
ø3.8MM×32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.2x3.5
(W x H)
|
ø3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0
(W x H)
|
ø6.0MM×32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5
(W x H)
|
ø3.8MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0
(W x H)
|
ø4.0MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0
(W x H)
|
ø5.0MM×48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.2x3.5
(W x H)
|
ø4.0MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0x4.6
(W x H)
|
ø4.8MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0
(W x H)
|
ø5.0MM×55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0
(W x H)
|
ø4.0MM×56 |
| 14 |
355.6 |
1.0 |
2.9 |
＞80 |
37.8 |
3.0x5.0
(W x H)
|
ø4.0MM×59 |
| 16 |
426 |
1.0 |
2.9 |
＞80 |
37.5 |
3.0x5.0
(W x H)
|
ø4.0MM×54 |
Product Tags: 3-1/2" johnson stainless steel well screen ; dewatering johnson stainless steel well screen ; sand control stainless steel well screen
