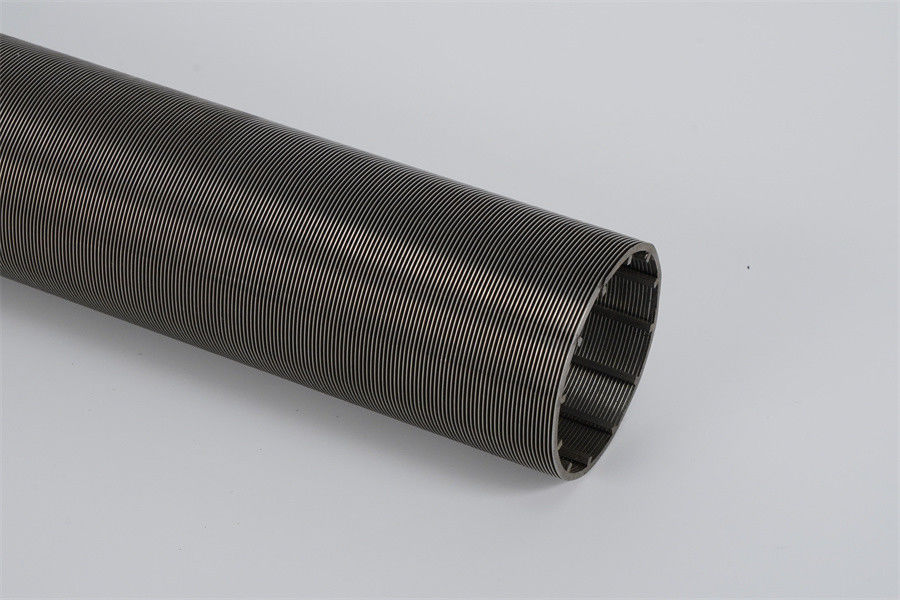

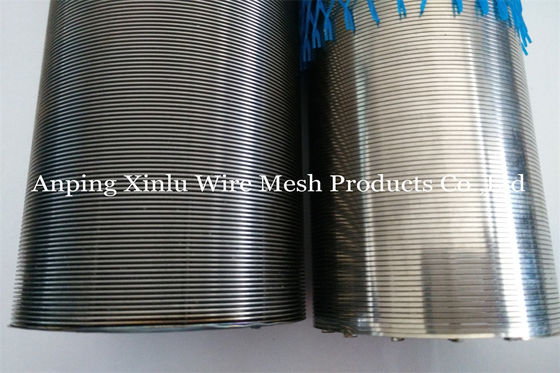

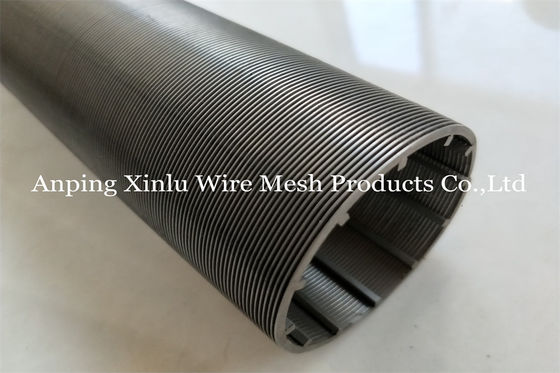

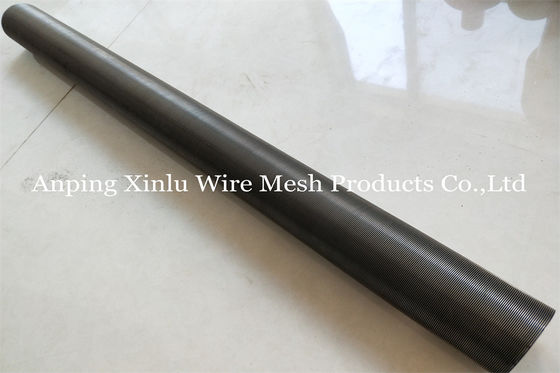

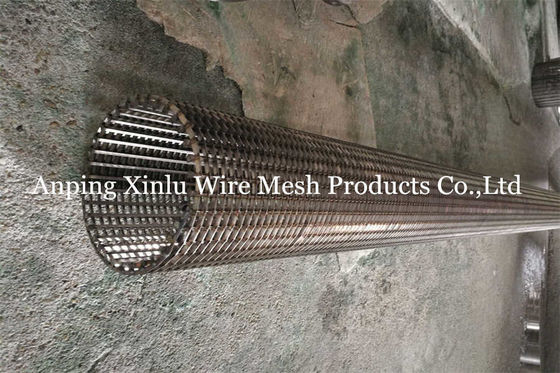

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside
Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside

Large Image :  Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wedge Wire Screen Pipe - 044
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside

Description
Another Name: Johnson Wedge Wire Wedge Wire Screen Pipe Material: Duplex2205
Surface Treatment: Electrolytic Polishing Diameter: 137mm
SLot: 0.5mm V Wire: 1.5x2.5mm
Support Wire: 2x3mm (Q25) Legnth: 0.7m
Flow Type: FITO (from Inside To Outside) Usage: Water Well Filter
Technology: Sprial Welded Products Tags: 137 Wedge Wire Screen Pipe, 500micron Wedge Wire Screen Tube, Johnson Wedge Wire Screen
Highlight:

Spiral Wire Mesh Filter Tube

,

Duplex 2205 Johnson Screen Mesh Pipe

,

Outside Wedge Wire Screen Tube

Duplex2205 Wedge Wire Spiral Screen Tube OD137mm With Profile Wire Point To The Outside



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe



Product Quick Details:

Wedge Wire Screen Tube

1. OD: 137mm

2. Flow gap: 0.5mm

3. Profile Wire: 1.5x2.5mm

4. Support wire: 2x3mm

5. End joints: without

6. Weight: 6.5kg/m



Advantages Wedge Wire Screen Pipe include:

1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency

2. Non plugging,to make sure the smooth circulation

3. Slot sizes ranging form0.05mm to 100mm

4. Durable and capable of carrying heavier loads without support structures

5. One piece construction

6. Wide range of materials

7. Easy to clean,long service life,safe and reliable,low comprehensive cost



Johnson Wedge Wire Screen Pipe (FITO)Range:

Name Wedge Wire Screen Tube (FITO) Material 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
Diameter 25-500mm (customized) Slot min 0.05mm
Length 100-3000mm Ends

Welded rings/Plain beveled ends;

Male/female threaded coupling: API STC, PT NPT, BSP, G;

Flange ;

Closed up,

Open ends etc.

Usage Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.







Package: Stainless Steel Wedge Wire Screen Tube

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet



Johnson Wire Water Well Screen Pipe Wire Specification



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Johnson Wedge Wire Screen Pipe Application

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside 0Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside 1

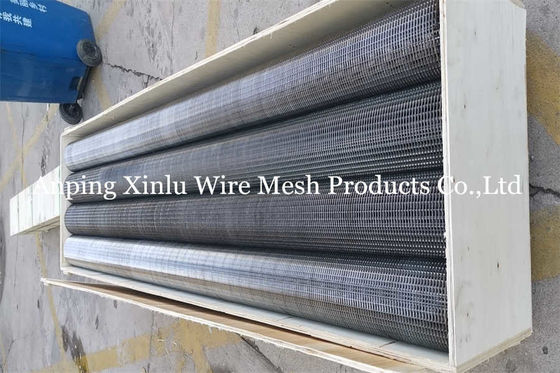

Xinlu Wedge Wire Screens Package



Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside 2

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside 3



Product Tags:  137 wedge wire screen pipe, 500micron wedge wire screen tube, Duplex 2205 johnson wedge wire screen
