Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket

Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket
Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket

Large Image :  Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wedge Wire Screen Pipe - 048
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

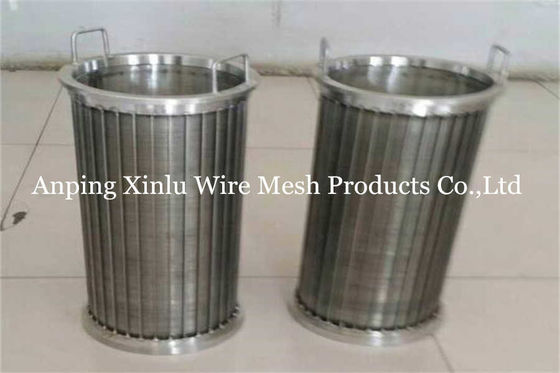

Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket

Description
Another Name: Johnson Continuous Slot Wedge Wire Screen Pipe Material: SS304, 316L, 321, Duplex Stainless Steel
Surface Treatment: Electrolytic Polishing Diameter: 50 To 2000mm
SLot: 0.05-25mm V Wire: 1.5x2mm, 2.3x3.5mm, 2.5x4mm Or 3x4.6mm
Support Wire: 1.8x2.5mm, 2x 3mm2.5x4, 3x4.6mm Legnth: Customized
Flow Type: From Inside To Outside End Joints: Flange/none/thread /coustomization
Usage: FIlter/back Wash Technology: V Wire Wrapped Welded
Feature: Anti-corrosion,strong Impact Resistance Products Tags: 300 Wedge Wire Screen Pipe, 304 Wedge Wire Screen Cylinder, Johnson Wedge Wire Screen Basket
High Light:

Cylindrical Wedge Wire Screen Filter

,

Ss304 Wedge Wire Screen Basket

,

Outside Wedge Wire Mesh Screen

Wedge wire screen filter mesh Johnsons screen filter pipe SS304 316L



wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe, rotary drum screen, wedge wire rolling screen, reversed constrction wedge wire screen, reversed profile wire screen,



cylindrical screen for inside to outside filtration

1. Axial wire construction: produces vertical slots which allow beds of media to move up and down without abrading the individual grains.

2. internal circumferential wire construction: uses external support rods to creat an unobstructed internal screen face.

3. internal axial wire construction: creates long, parallel slots, in vertical applications, media can move up and down with abrading. in horizontal rotating applications, flow moves across the wire edges for efficient dewatering.

4. inverted wire construction: external circumferential inverted wire and axial internal support rods



Description:

Wedge wire screen is widely used throughout the world for water, oil & gas wells, and is the dominant screen type used in the water well industry.
The welded stainless steel wire wrap screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of wire wrap screen has a structure and high open area, as well as accurate slot dimension. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. Slot opening for screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings. Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface.



parameter

Gap (mm): 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.08, 0.10, 0.15, 0.2, 0.25, 0.30-35, can also be made according to customer requirements
Material: low carbon steel, low carbon steel galvanized, plastic sprayed, stainless steel (304, 316L, Hastelloy, etc.)
Length: 50mm--6000mm
Outer diameter: 25mm--600mm
Connection form: groove connection or threaded connection, direct pipe head or threaded pipe head
Screen wire specifications: conventionally 0.75*1.5mm, 1*2mm, 2*3mm, 2.3*3mm, 3*5mm
Internal ribs: DN25mm/12, DN33mm/8, DN37mm/8, DN40mm/10, DN60mm/12, etc.



Winding characteristics:


1. The application of trapezoidal wire forms a V-shaped opening between the Schroder screen gaps. This design form works more efficiently than other forms of products, ensuring the smoothness of water filtration.
2. The continuous winding of the trapezoidal wire forms a continuous high-density uniform gap on the supporting wires arranged in a circular pattern, which ensures the opening area and non-blocking of the Schroeder screen, and avoids the high-density accumulation of sediments. Productivity and extended filter life are guaranteed.
3. The winding wire and all supporting wires are connected by electric welding, which is durable and has a longer working life cycle.
4. The longitudinal arrangement of the support wires and the continuous slot form of the screen are designed according to the actual needs, so that the product has higher compressive performance.



Features & Benefits

1. V-Shaped Slots —Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are justbarely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screenand clog it.
2. Very Large Open Area — This design gives continuous slot and hence the open area for water to enter is more than 2 timesthat of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictionalhead loss and the efficiency of tube well is improved appreciably.





Type:



From inside to outside. Wire, Inside; Support rod, Outside.

1. Wire is the length of the screen pipe;

2. Support rod is the length of the screen pipe.



The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.





The difference between different material of water well screen pipes

  Type of water well screen
Stainless steel Galvanized Silver Painted
weight Stainless steel>Galvanized>Silver Painted
Surface treatment

Electrolytic polishing

Pickling and polishing

Uniform Galvanized

surface

Uneven Silver Painted surface
Corrosion resistance powerful medium slightly weaker
Tensile Strength powerful medium slightly weaker
Collapse Strength powerful medium slightly weaker
Magnetic

SS201 SS205 SS205B no magnetic

Other micromagnetic

magnetic magnetic
service life Stainless steel>Galvanized>Silver Painted
price high low lower



Johnson Wedge Wire Screen Pipe Application

water well & Oil well

water supply systems
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Groundwater
Waste Water Treatment



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Xinlu Wedge Wire Screen Pipe Details

Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 0Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 1Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 2Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 3Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 4Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 5Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 6





Xinlu Wedge Wire Screens Package

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 7Cylindrical Ss304 Wedge Wire Screen Pipe Welded Inside Outside Basket 8



Product Tags:  wedge wire screen pipe ss 304 ; welded cylindrical wedge wire screen pipe ; wedge wire filter screen ss 304
