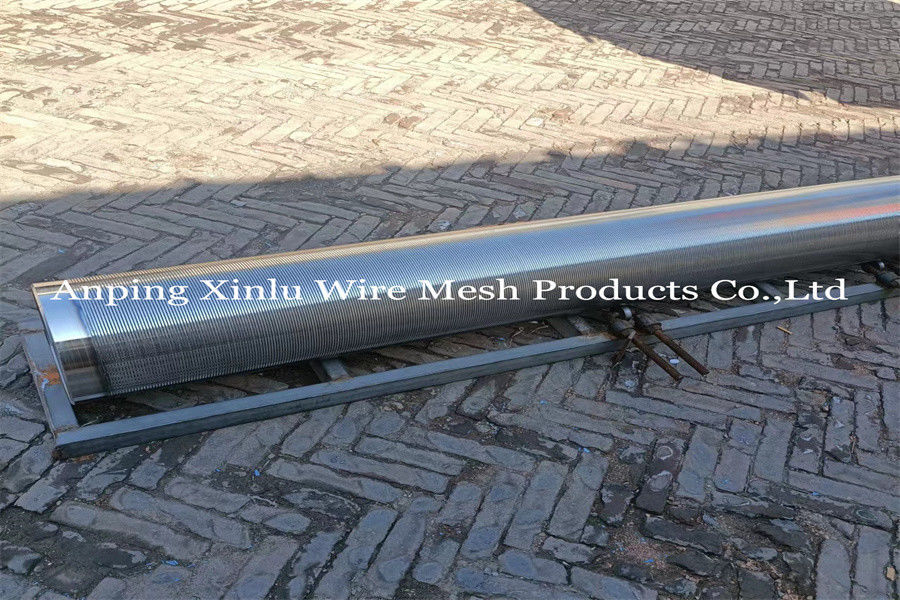

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft
Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft

Large Image :  Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Wedge Wire Screen Pipe - 049
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wood case, pallet,container
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs/20days

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft

Description
Another Name: Continuous Slot Wedge Wire Oil Well Screen Tube Material: Ss304, AISI304, SUS304
Surface Treatment: Electrolytic Polishing End Connection: API STC
Diameter: 254mm SLot: 1.0mm
V Wire: 2.5x4mm Support Wire: 3.8mm
Legnth: 3.048m (10ft) End Joints: Male Female Threaded
Usage: Water Well Filter Products Tags: 10"mm Wedge Wire Screen Pipe; Continuous Slot Wedge Wire Screen Pipe ; Slot 0.04 Wedge Wire Screen Tube
High Light:

Oil Drilling Wedge Wire Screen Pipe

,

Continuous Slot Wedge Wire Screen Pipe

,

Screen Filter Tube 10ft

Stainless Steel Wedge Wire Oil Drilling Screen Pipe Continuous Slot 0.04" With 10ft Long



Wedge Wire Screen Series Production Name:

wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe



Johnson Wire Continuous Slot Water Well Screen Pipe Produce Range:

1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
2. Diameter: 25-2000mm (customized)
3. Slot: min 0.05mm
4. Length: 100-6000mm
5. Flow Type: FITO, FOTI
6. Ends:

Welded rings/Plain beveled ends;

Male/female threaded coupling: API STC, PT NPT, BSP, G;

Flange ;

Closed up,

Open ends etc.

7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.



Quality assurance: Johnson Wire Water Well Screen Pipe

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality



Johnson Wire Water Well Screen Pipe Specification List



sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tensile
strength
collapse
Strength

wrap wire
vee-shaped wire

(Width x height:mm)

support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22
4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32
8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48
8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55
10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55
10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56
14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59
16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64



Water Well Screen Pipe Wire Size

 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 0Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 1Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 2Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 3

Johnson Wire Water Well Screen Pipe Application

Groundwater

Pump Filter

Motor Filter

Dewatering

Groundwater
Waste Water Treatment
Water Well & Oil well

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 4

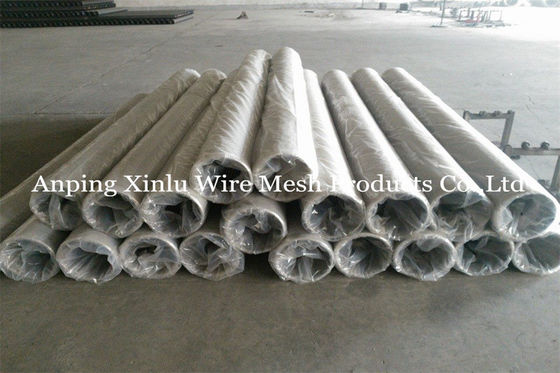

Package: Stainless Steel Wedge Wire Strainer Pipe

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 5Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 6

Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 7Oil Drilling Stainless Steel Wedge Wire Screen Pipe Continuous Slot 0.04" 10ft 8

Why choose us ?

1. We are the professional manufacturer.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.





Product Tags:  dia 254mm wedge wire screen pipe; 10ft continuous slot wedge wire screen pipe ; slot 0.040 wedge wire screen tube
