Product Details:
|
Application: | Water Treatment, Oil & Gas, Mining, Waterwell And Environmental | Wedge Wire Type: | V-Shape, Trapezoid-Shape, Wedge-Shape |
---|---|---|---|
Surface Treatment: | Electrolytic Polishing, Pickling, Galvanizing | Welding Method: | Full Welding, Spot Welding, Argon Arc Welding |
Benefits: | Economical, Suitable For Most Applications, Precison Openings | Support Wire: | 1.8x2.5mm, 2x3mm(Q25), 2.5x4mm, 3x5mm (Q35), 3x4.6mm, 3x6mm |
Profile Wire: | 0.75x1.8mm, 1x2mm(12S), 1.5x2mm, 1.5x2.5mm(18S)2x3mm, 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3.3x6.2mm | Standard Construction(E.C.W): | External Circumferential Wire And Axial Internal Support Rods |

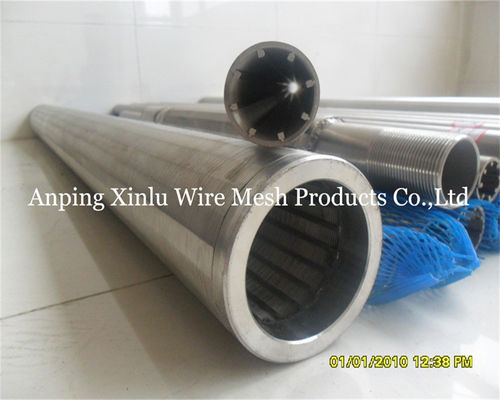

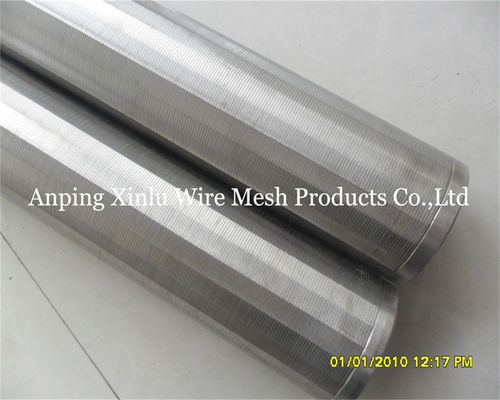

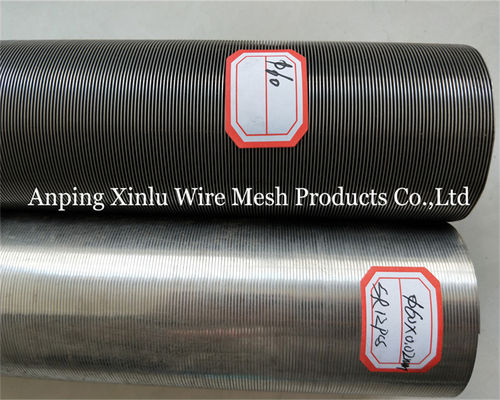

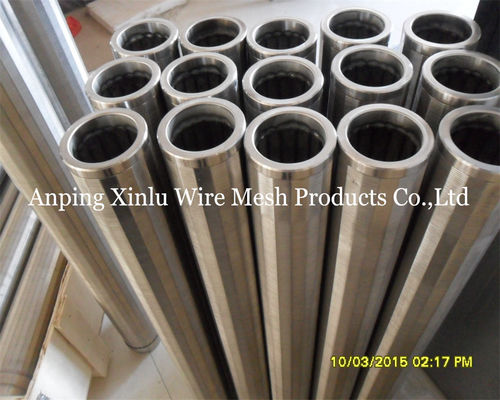

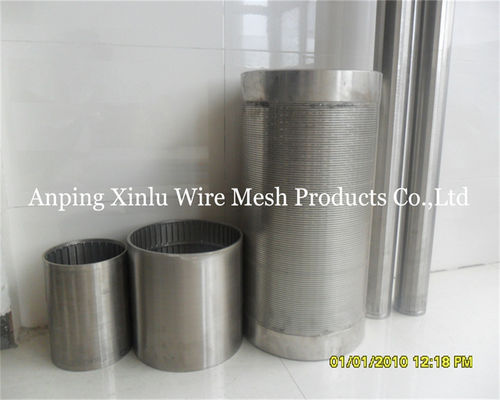

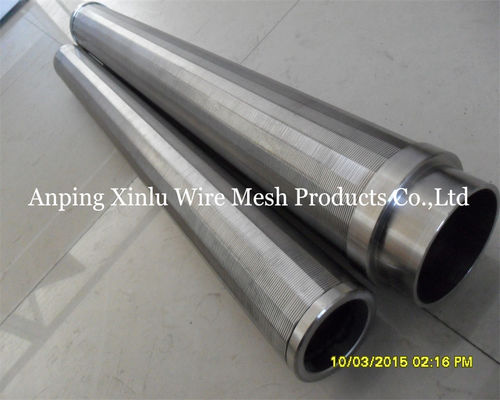

Wedge wire screen pipe is a kind of highly efficient filter element made of high-temperature and high-pressure resistant stainless steel. It is widely used in various industries such as water treatment, oil and gas exploration, petrochemical industry, pharmaceutical industry, paper making industry, etc. It is composed of stainless steel support rods and V-shaped stainless steel wire mesh. It has the characteristics of high temperature resistance, high pressure resistance, wear resistance, corrosion resistance and long service life. The slot size of wedge wire screen pipe can be customized between 0.05mm to 5mm. The length can be customized from 1000mm to 3000mm and 6000mm. It has various end connections, such as threaded, flange, and welded. Wedge wire filter candles, wedge wire inverted screens, and v-wire screen tubes are all great choices for wedge wire screen pipes.
Parameter | Value |
---|---|
Temperature | High Temperature |
Welding Method | Full Welding, Spot Welding, Argon Arc Welding |
Wedge Wire Type | V-Shape, Trapezoid-Shape, Wedge-Shape |
Material | Stainless Steel304, 316L, 321, Alloy C-276, Carbon Steel, Galvanized Q195 / Q235, Duplex Stainless Steel 2205 |
Application | Water Treatment, Oil & Gas, Mining, Waterwell And Environmental |
Standard construction(E.C.W) | External Circumferential Wire And Axial Internal Support Rods |
Support Rod Diameter | 2-6mm |
Pressure | High Pressure |
Benefits | Economical, Suitable For Most Applications, Precison Openings |
Diameter | 1-20 Inch |
Reverce Rolled Slot Tube | Yes |
Standard Screen Pipe | Yes |
Vee Wire Screen Pipe | Yes |
Wedge Wire Wrapped Screen Pipe | Yes |
Xinlu Wire Mesh's Wedge Wire Screen Pipe is a kind of water well screen which is made up of V-shaped profile wire and the longitudinal support rods. With features of high strength, anti-corrosion, non-clogging and great mechanical properties, it is widely used in the water treatment, water wells, mining, petroleum, chemical, food, medicine, and other industries.
The Model Number is DN1-20" and the profile wire is 0.75x1.8mm, 1x2mm(12S), 1.5x2mm, 1.5x2.5mm(18S)2x3mm, 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3.3x6.2mm. The length of the wedge wire screen pipe ranges from 1000-3000-6000mm and it is able to withstand high pressure. It also has a great surface treatment, including electrolytic polishing, pickling, and galvanizing. It is certified with FORM E and CO, and the minimum order quantity is 10pcs. The price is according to the specification and the packaging details include transparent plastic bags, wooden boxes, pallets, and container. It offers economical cost, suitable for most applications, and precison openings, and the delivery time is 7-10days. The supply ability is 500pcs/month and the payment terms are T/T.
Wedge Wire Screen Pipe
Brand Name: Xinlu Wire Mesh
Model Number: DN1-20"
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO
Minimum Order Quantity: 10pcs
Price: according to the specification
Packaging Details: Transparent plastic bags, wooden boxes, pallets, container
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 500pcs/month
Benefits: Economical, Suitable For Most Applications, Precison Openings
Length: 1000-3000-6000mm
Surface Treatment: Electrolytic Polishing, Pickling, Galvanizing
Wedge Wire Type: V-Shape, Trapezoid-Shape, Wedge-Shape
Application: Water Treatment, Oil & Gas, Mining, Waterwell And Environmental
Features: Profile wire screen pipe, vee wire screen pipe, reverce rolled slot tube, wedge wire screen.
We provide technical support and service for wedge wire screen pipe products. Our experienced staff are available to answer any questions you may have regarding installation, application, or maintenance of your wedge wire screen pipe products. We are committed to delivering outstanding customer service and ensuring our customers' satisfaction.
Our knowledgeable team is dedicated to helping you find the right product for your specific application. We will work with you to determine the best type of wedge wire screen pipe for your needs, as well as provide advice on how to properly install and maintain the product.
Our technical support and service includes:
We are committed to providing our customers with superior customer service and technical support. If you have any questions or need assistance with your wedge wire screen pipe products, please do not hesitate to contact us.
Wedge Wire Screen Pipe Packaging and Shipping:
Wedge Wire Screen Pipes are usually packaged in wooden crates. Each wooden crate contains one piece of the pipe. The crates are then packed in cardboard boxes to protect them during shipping. The cardboard boxes are then placed in pallets for easy transportation.
The shipping method depends on the size and the weight of the pipes. Smaller pipes can be shipped by air freight, while larger pipes must be shipped by sea freight. The freight cost will also depend on the destination.
