Product Details:
|
| Material: | SS304, 316L, 321, Duplex Stainless Steel, Hastelloy | Keyword: | Stainless Steel Filter Screen, Filter Lateral Pipe, Wedge Wire Filter Candle, Screen Pipe, Johnson Filter Tube, Wedge Wire Screen Pipe, Wire Wrapped Screen Pipe, V Wire Filter Candles |
|---|---|---|---|
| Diameter: | 53mm, Or Customized | End Connection: | Threaded G3/4" And Blind End Cap |
| Slot: | 0.1-1mm | Flow Type: | FITO, FOTI |
| Used: | Water Input Device, Water Distributor And Resin Trans | Application: | Filter, Filter, Mineral, Gas/oil/liquid Filtration, Industry |
| High Light: | Threaded Stainless Steel Filter Screen,53mm Stainless Steel Filter Screen |
||

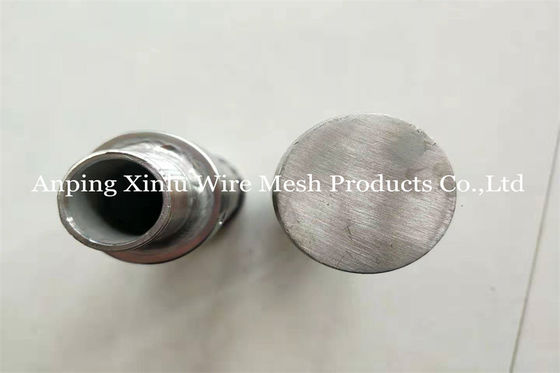

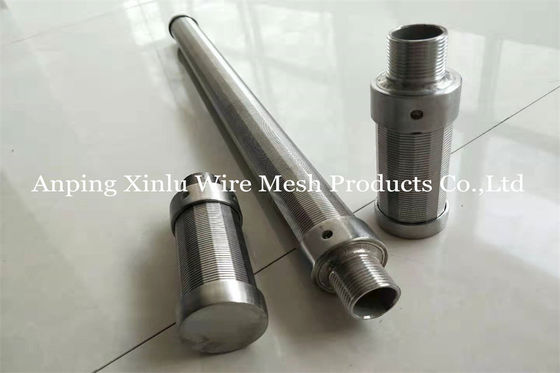

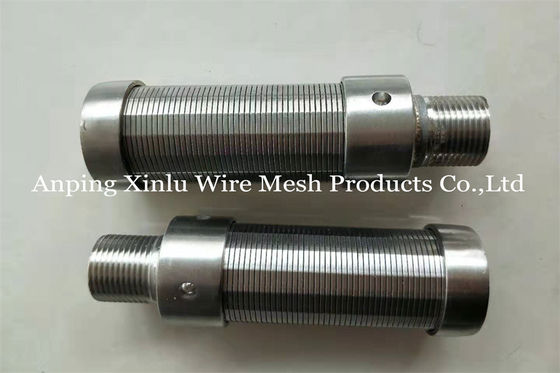

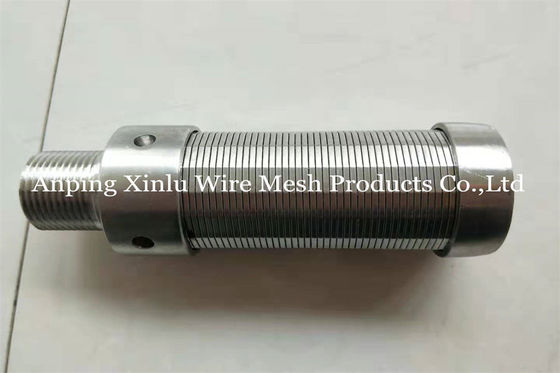

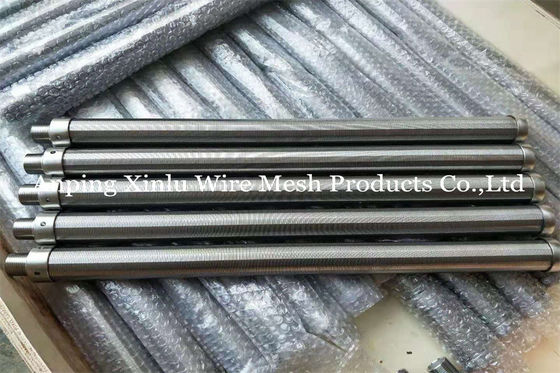

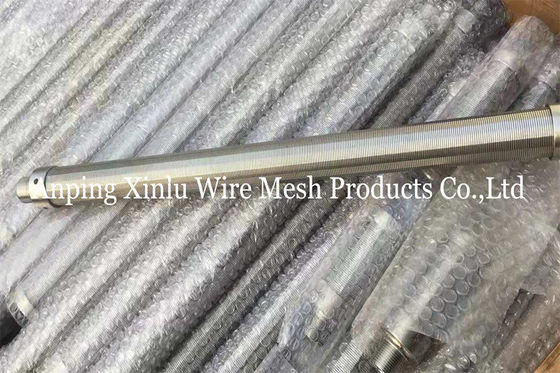

DN53mm x G 3/4" Threaded Stainless Steel Filter Laterals, Wedge Wire Filter Candle Pipe For Resin Trans
Stainless Steel Filter Screen, Lateral pipe, Filter candle, Stainless Steel Lateral Arm /pipe water input device / water distributor / resin trans
Stainless steel lateral arm, mainly used in water input device, resin sprayer fittings, water distributor, center distribution drainage device, screen lateral systems.
These assemblies consist of a series of screen laterals connected to either a
central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchanges, clay and sand filtration applications, and carbon towers.
Benefits of Stainless Steel Filter Screen, Lateral pipe, Filter candle
The design allows a uniform collection or distribution flow of a gas or liquid through treatment media without dead zones
The system can accommodate a wide variety of vessel sizes and shapes with side, center, top, or bottom inlet piping
The assemblies can be designed to accommodate flow in any direction
Features of Stainless Steel Filter Screen, Lateral pipe, Filter candle
Lateral spacing, length, diameter and slot opening sizes are based on individual system needs: slot size 0.002 in. (0.05 mm) and up in
increments of 0.0004 in. (0.01 mm) and diameter from 0.787 in. (20 mm) up
Assemblies are typically made with type 304SS, 316LSS, or other exotic alloys
Connections of the laterals can be threaded fittings, couplings or flanges
Using stainless steel, Hastelloy alloy, or carbon steel as the raw material, Feiya group branch factory-Xinlu can customize wedge wire filter cartridges based on the provided slot opening size, cartridge length, and connection method.
Features of Stainless Steel Filter Screen, Lateral pipe, Filter candle
1. A high strength, precise slot size, uniformly distributed slots, a smooth surface and extended service life.
2. Excellent resistance to wear, heat, pressure and corrosion.
3. A large flow capacity, and a high filtration efficiency.
4. The screen surface is burr free and has rounded corners. It is easy to backwash, take apart, set up, and use.
5. A stainless steel filter cartridge is suitable for various high and low temperature environments
Main Specifications of Stainless Steel Filter Screen, Lateral pipe, Filter candle
Material: 321, 304, 304L, 316, 316L, or 904L stainless steel, Hastelloy alloy, galvanized carbon steel
Diameter: 29mm, 32mm, 34mm, 42mm, 45mm, 54m, 58mm, 62mm, 70mm, 84mm, 94mm
Slot opening: 0.05mm to 15mm
Length: 100mm – 4000mm
| No. | Model | Diameter (mm) | Lateral Outside Diameter (mm) | Number of Laterals | Hub Diameter |
| 1 | FY-XL-125 | 1250 | 25-57 | 6-8 | DN80 |
| 2 | FY-XL-160 | 1600 | 28-57 | 6-8 | DN80 |
| 3 | FY-XL-180 | 1800 | 32-65 | 8-12 | DN80-DN100 |
| 4 | FY-XL-200 | 2000 | 42-89 | 8-12 | DN80-DN125 |
| 5 | FY-XL-220 | 2200 | 42-89 | 8-12 | DN100-DN125 |
| 6 | FY-XL-250 | 2500 | 57-89 | 8-16 | DN100-DN125 |
| 7 | FY-XL-280 | 2800 | 57-89 | 8-20 | DN100-DN150 |
| 8 | FY-XL-300 | 3000 | 57-89 | 8-20 | DN125-DN200 |
| 9 | FY-XL-320 | 3200 | 57-89 | 8-22 | DN125-DN200 |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
