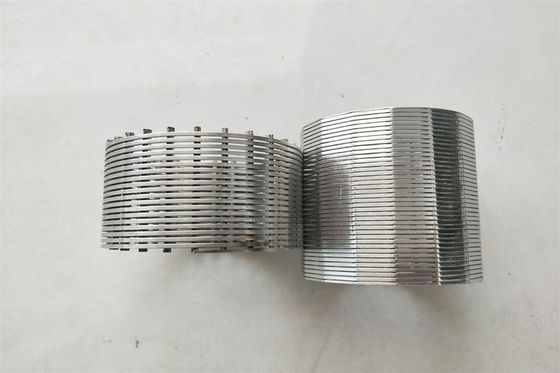

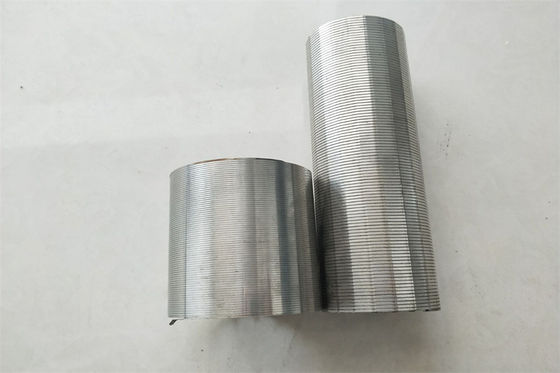

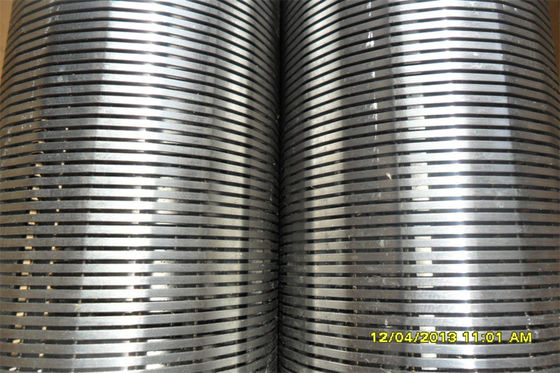

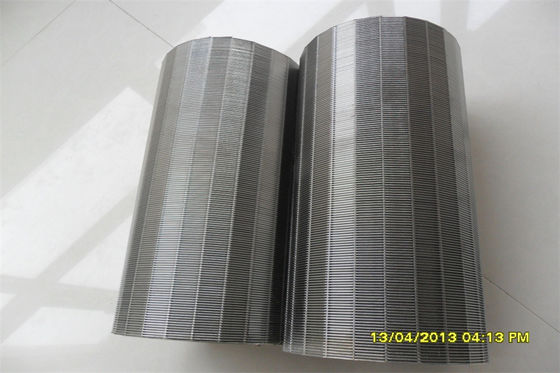

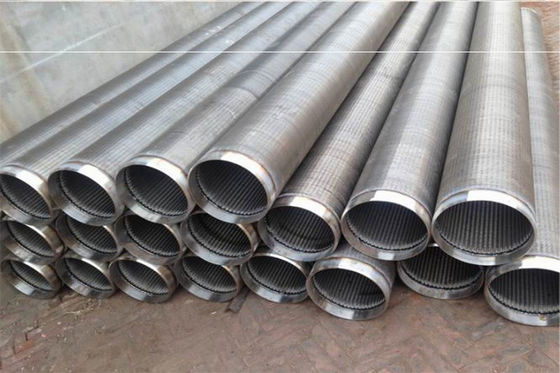

Stainless Steel Wedge Wire Filter Screen Tube OD 100mm For Wastewater Treatment
stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals etc.
Professional OD 100mm Welded Wedge Wire Screen Non Plugging And Easy Clean
Stainless Steel Wedge Wire Screen Drum For Wastewater Treatment
Xinlu Wedge Wire Filter Screen also be named Wedge wire screen, wedge wire screen pipe. wedge wire screen tube, wedge wire filter drum, Vee-Wire screen pipe, Continuous slot Vee-wire screen tube, Wire wrapped screen,Wire wound screen,water filter screen, water well screen, johnson well screen, johnson wire screen, johnson screen tube, johnson screen pipe, spiral screen tube, v wire strainer pipe, oil well screen, pump filter screen.
It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.Accurate slot and high filtration precision.
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.
Material: Stainless steel 304, 304L, 316L ,321 etc.)
Length Upto 4 meters
Diameter 29-1200mm
Screen end Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.
Stainless Steel Wedge Wire Filter Screen Tube Advantage
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
Regular Specification of Stainless Steel Wedge Wire Filter Screen Tube
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
The Advantage of Stainless Steel Wedge Wire Filter Screen Tube
1. Customized shape and slot: can meet the special needs
2. Precision filtration
3. Optimal performance with high flow rates
4. The stainless steel:be resistance to crosion and abrasion.
5. Ideal for high-temperature and high-pressure conditions
The Usage accasions:
The features of Wedge Wire screen tube make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

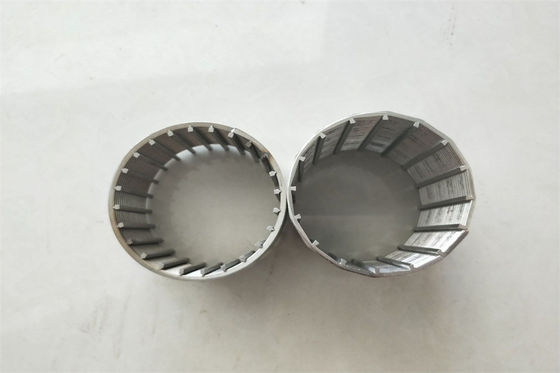

V Profile Wires and Support Rods Information
Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Application: Stainless Steel Wedge Wire Filter Screen Tube
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
Package of Stainless Steel Wedge Wire Filter Screen Tube:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
