Non-clogging Stainless Steel Wedge Wire Filter ScreenWater Division Strainer Pipe
stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals etc.
Main Products:

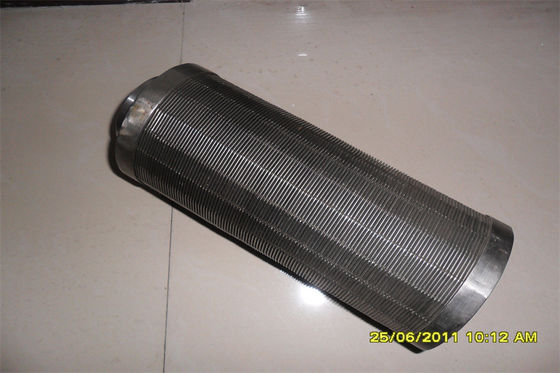

Stainless Steel Filter Screen also named Johnson wedge wire screen, wedge wire screen is made of V-shape profile wire and longitudinal support rods. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property. The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements. What’s more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.
Feature of Stainless Steel Filter Screen, Strainer pipe
1. Metal construction.
2. Excellent roundness.
3. Great flow area.
4. High mechanical load capacity.
5. High precision slot width.
6. Pressure and temperature resistance.
7. Anti-corrosion, anti-aging.
8. Safe, reliable.
9. Environment friendly.
10. Easy installation.
11. Long service time.
Stainless Steel Filter Screen, Strainer pipe Characteristic:
1. Safety for food and drinking water.
2. Chemical stability
3. Resistance to corrosion and abrasion
4. High strength and rigidity
5. Long work time
6. Easy to be washed and cleaned
7. Save time and money.
8. The number of branch is customized.
Regular Specification of Stainless Steel Filter Screen, Strainer pipe
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
The Advantage of Stainless Steel Filter Screen, Strainer pipe
1. Customized shape and slot: can meet the special needs
2. Precision filtration
3. Optimal performance with high flow rates
4.The stainless steel:be resistance to crosion and abrasion.
5. Ideal for high-temperature and high-pressure conditions
The Usage accasions:
The features of Wedge Wire screen tube make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.
V Profile Wires and Support Rods Information
Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Application: Stainless Steel Filter Screen, Strainer pipe
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range Anti - Corrosion Water Well Sand Filter Screen, Wedge wire screen tube :
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Package of Stainless Steel Filter Screen, Strainer pipe :
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
