53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer

53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer
53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer

Large Image :  53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number: XL- stainless steel filter screen -02
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: 26-60usd/pcs, Negotiable according to the specification

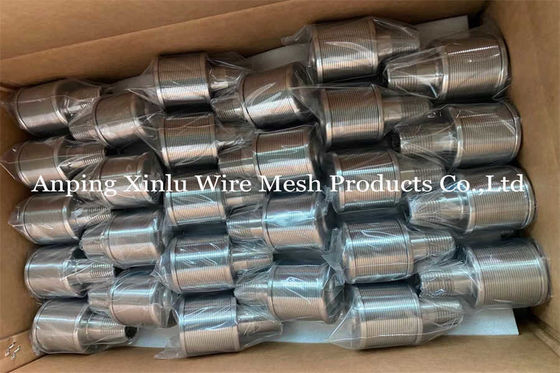

Packaging Details: wood case
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 100pcs/20days

53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer

Description
Material: SS304, 316L, 321, Duplex Stainless Steel, Hastelloy Name: Stainless Steel Wedge Wire Filter Strainer-Type ST, Water & Gas Strainer Nozzle
Diameter: 53mm, Or Customized End Connection: Threaded G3/4" And Blind End Cap
Slot: 0.2mm Flow Type: FITO, FOTI
Used: Water Input Device, Water Distributor And Resin Trans Application: Filter, Filter, Mineral, Gas/oil/liquid Filtration, Industry
Highlight:

53mm Stainless Steel Filter Screen

,

321 Stainless Steel Filter Screen

,

Gas Wedge Wire Strainer



Stainless Steel Wedge Wire Filter Strainer-Type ST, Water & Gas Strainer Nozzle



Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

Water & Gas strainer nozzle (johnson type screen nozzles) are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide rang of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application popular.

Characteristic stainless steel filter screen:

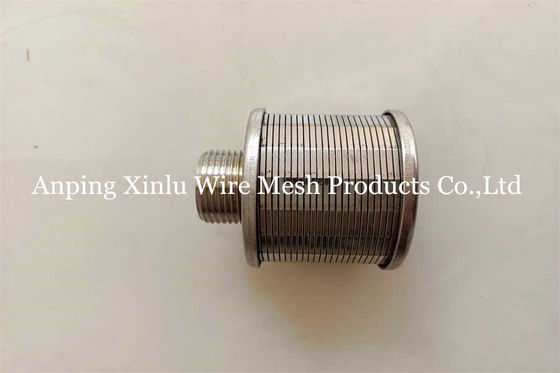

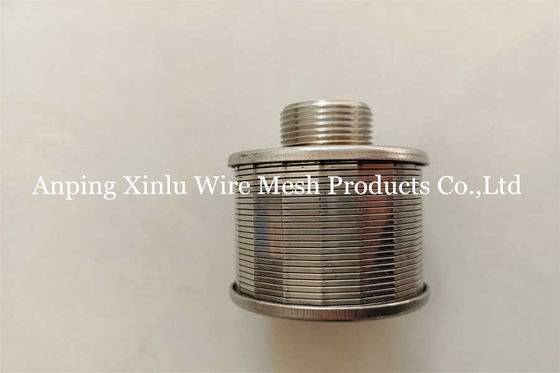

This wedge wire water filter nozzle is welded with

1. screen pipe

2. thread pipe

3. steel plate

4. Threaded end (is divided into female and male), some nipple with nuts and rubber washer.


Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.



The weight is generally 0.2-0.5kg, the volume weight is small, the appearance is exquisite.

Stainless Steel Wedge Wire Filter Strainer-Type ST, Water & Gas Strainer Nozzle Noraml Specification:



53mm Diameter Stainless Steel Filter Screen 304 321 Water Gas Wedge Wire Strainer 0



Type Model

Diameter

D

L L1 Slot Thread

Slot 0.2-0.25

Open area

mm2

FYN1 XL45-1-A 45 80 25 0.2-0.5 M25 280
FYN2 XL45-1-B 45 90 35 0.2-0.5 M25 390
FYN3 XL45-1-C 45 98 34 0.2-0.5 M20 380-493
FYN4 XL45-1-D 45 100 45 0.2-0.5 M25 500
FYN5 XL45-1-E 45 100 34 0.2-0.5 M24 551-690
FYN6 XL45-1-F 45 110 45 0.2-0.5 M25 550
FYN7 XL45-1-G 45 55 35 0.2-0.5 M25 380
FYN8 XL45-1-H 45 65 45 0.2-0.5 M25 550
FYN9 XL53-2-A 53 90 35 0.2-0.5 M25 450
FYN10 XL53-2-B 53 100 34 0.2-0.5 M24 453-597
FYN11 XL53-2-C 53 100 45 0.2-0.5 M25 570
FYN12 XL53-2-D 53 100 50 0.2-0.5 M27 680-710
FYN13 XL53-2-E 53 105 34 0.2-0.5 M32 800-920
FYN14 XL53-2-F 53 110 45 0.2-0.5 M25 580
FYN15 XL53-2-G 53 110 50 0.2-0.5 M32 700
FYN16 XL53-2-H 53 120 55 0.2-0.5 M32 700
FYN17 XL57-3-A 57 100 35 0.2-0.5 M32 530
FYN18 XL57-3-B 57 110 45 0.2-0.5 M32 600-680
FYN19 XL57-3-C 57 115 35 0.2-0.5 M30 560-670
FYN20 XL57-3-D 57 120 55 0.2-0.5 M32 800-905
FYN21 XL60-4-A 60 120 55 0.2-0.5 G1″ 905-1100
FYN22 XL70-5-A 70 105 40 0.2-0.5 M32 650
FYN23 XL70-5-B 70 110 45 0.2-0.5 M32 800
FYN24 XL70-5-C 70 115 50 0.2-0.5 M32 810
FYN25 XL70-5-D 70 120 55 0.2-0.5 M32 1000
FYN26 XL82-6-A 82 120 60 0.2-0.5 G2″/M42
FYN27 XL82-6-B 82 130 50 0.2-0.5 M33 1170-1280
FYN28 XL108-7-A 108 200 100 0.2-0.5 G2″ 3050-4600




Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.

Material:304,321,316,316L,904L ,HastalloyB and C, ets


OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
