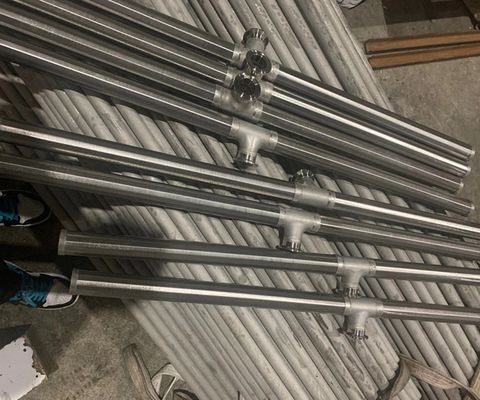

Customized 89mm Continuous Slot Johnson Water Well Filter Screen Tube
Stainless steel fused wire winding screen barrel is composed of support wire and profile wire, the slot size is accurate, high filtration accuracy; Strong structure, high temperature and corrosion resistance; Can be used for a variety of media filtration.
Xnlu company's filter screens are used in power plant, mixed bed, chemical industry, oil well, water well, natural gas well, sand control, filtration, metallurgy, papermaking, environmental protection, desalination and other industries of all kinds of coarse and fine filtration.Sophisticated production is our basic requirement, different process, of course, different quality, and the general production of rough, low price products are different.
Continuous Slot Johnson Water Well Filter Screen Tube produced by Xinlu company is made of stainless steel wire with special section, which is wound and welded with advanced technology on special equipment.It has the characteristics of simple structure, easy to use, high strength, light weight, strong corrosion resistance, large filtration area, good seepage performance and so on.Welcome customers to send drawings customized.
Stainless Steel Continuous Slot Wedge WireJohnson Water Well Filter Screen Tube features:
1. Non-blocking, wedge gap formation, v-shaped bar is not easy to jam.
2. Automatic seam welded mesh precision.
3. Good cleaning, the surface can take advantage of the scraper type blow way to get rid of.
4. Small pressure loss, high mechanical performance.
5. Long service life and low maintenance cost.
6. Material: 304,304 L, 321,316 L, 2205,etc
Continuous Slot Johnson Water Well Filter Screen Tube Use:
Water well
Water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Stainless Steel Continuous Slot Wedge WireJohnson Water Well Filter Screen Tube Specifications:
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Package of wedge wire filter screens:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
