Easy For Installation, Long Using Life, Anti-corrosion, No Magnetic
Application:
Filter, Filter, Mineral, Gas/oil/liquid Filtration, Industry
Highlight:
Electropolished Water Filter Screen
,
SS304 Water Filter Screen
,
Electropolished Water Filter Elements

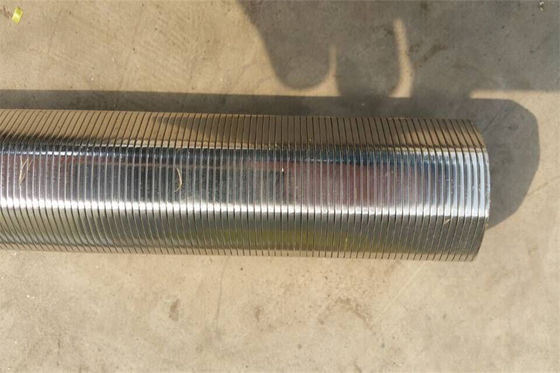

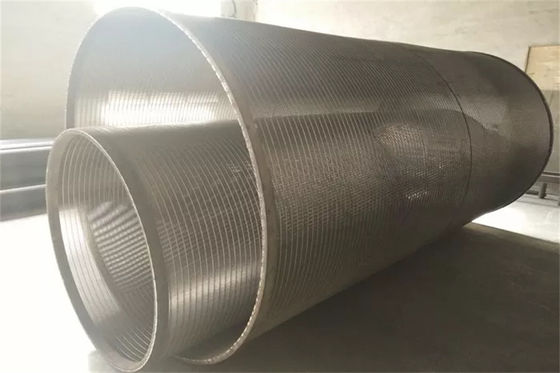

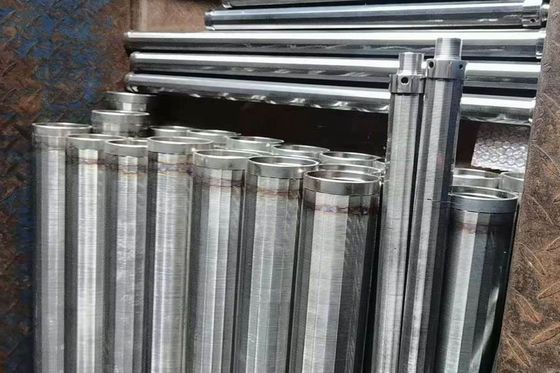

Electrolytic Polishing Stainless Steel V Wire Water Screen Pipe / Wire Wrapped Filter Element
Production Description
wire water well screens, wire wrapped screens pipe, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot screen, water filter element, screen cylinders, v wire slot tube, reverse rolled screen, wedge wire strainer pipe, johnson well screen, johnson wire screen, johnson screen tube, johnson screen pipe, johnson filter screen, stainless steel or low carbon galvanized or mild steel wire screen,woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers,strainer screens, wide slit screens, oil screen tube.
These pipes are used for bore wells in sandy soils. These are also ideal for use in groundwater recharging features of water well screen pipe
Electropolished Stainless Steel V Wire Water Screen Pipe / Wire Wrapped Filter Element by Anping County Xinlu Wire Mesh Products Co., Ltd.
[Anping County Xinlu Wire Mesh Products Co., Ltd.] specializes in the production of high-quality Electrolytic Polishing Stainless Steel V Wire Water Screen Pipes, also known as Wire Wrapped Filter Elements. These pipes are engineered for optimal performance in water well filtration, particularly in sandy soils and groundwater recharging applications.
Product Highlights:
Precision Slot Control: Our V Wire Water Screen Pipes offer tight slot control, ensuring consistent flow rates and filtration accuracy .
Durable Construction: Weld integrity at every point guarantees the structural strength and longevity of our screens .

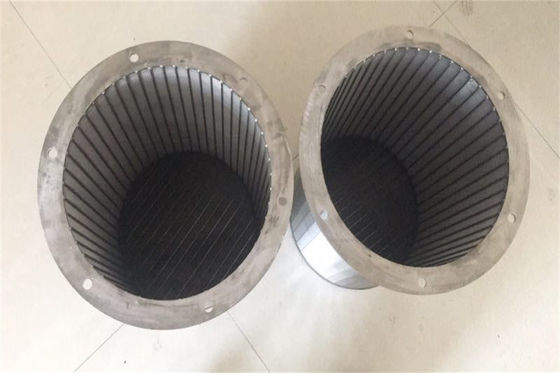

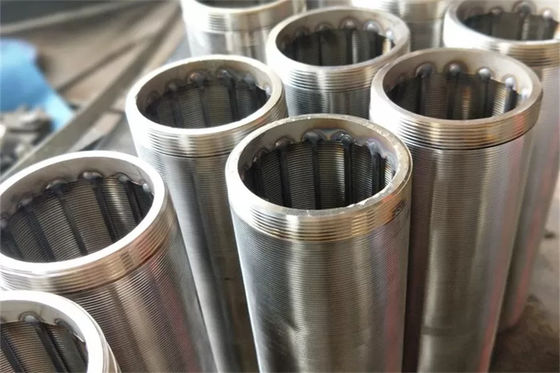

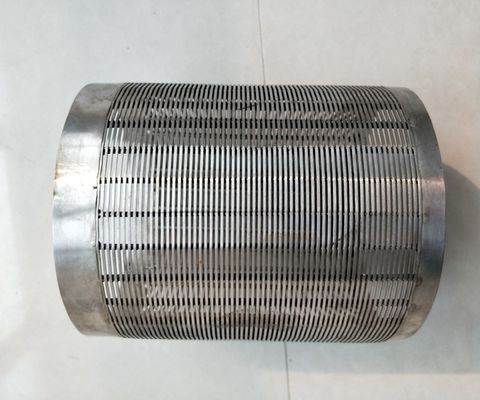

Customizable Solutions: Available with Weld Rings or Threaded Fittings to meet specific customer requirements .
Versatile Applications: Suited for water wells, water supply systems, refining & petrochemical, filter equipment, drum filters, and sand control .
Technical Specifications:
Materials: We offer our well screen pipes in various materials including low carbon Q195 Q235, stainless steel grades 201, 205, 321, 304, 304L, 316, 316L, non-magnetic stainless steel grades 201, 205, 205B, duplex stainless steel 2205, 2207, Hastelloy alloys C, and titanium alloy .
Diameters: Ranging from 20mm to 1000mm, with slot sizes from 0.05mm to 6.00mm, and length options up to 6000mm .
High Open Area: Our screens provide a large open area for better access to water-bearing zones .
Uniform Well Development: The continuous slot opening ensures efficient well development .
Easy Maintenance: The surface can be cleaned using scraper-type blow methods, reducing maintenance efforts .
Stainless Steel V Wire Wrapped Screen Pipe Specifications:
sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength
wrap wire
vee-shaped wire
(Width x height:mm)
support rod
Round wire (mm)
3-1/2
88.9
1
2.9
>22
10.2
2.3 x 3.5
3.0MMx22
4-1/2
114.3
1
2.9
>28
11.5
2.3 x 3.5
3.0MM×22
6-5/8
168.3
0.75
5.8
>40
12.8
2.3 x 3.5
3.8MM×32
6-5/8
168.3
1
5.8
>33
12.8
2.3 x 3.5
3.8MM×32
6-5/8
168.3
0.63
5.8
>83
45
3.0 x 6.0
5.OMM×32
8-5/8
219.1
1
5.8
>34
21.9
2.3 x 3.5
3.8MMx48
8-5/8
219.1
1
5.8
>50
38.2
3.0 x 4.6
4.0MMx48
8-5/8
219.1
1
5.8
>60
46
3.05 x 6.35
5.0MMx48
10-3/4
273.1
0.75
5.8
>50
9
2.5 x 4 .0
3.8MM×55
10-3/4
273.1
1
5.8
>60
39.5
3.0 x 4.6
4.5MMx55
10-3/4
273.1
1
5.8
>100
48
3.2 x 6.0
5.0MM×55
12-3/4
323.9
1
5.8
>120
37.2
3.0 x 6.0
4.0MMx56
14
355.6
1
2.9
>80
37.8
3.0 x 5.0
4.0MMx59
16
426
1
2.9
>80
37.5
3.0 x 5.0
4.OMM×64
PROFILE WIRE
WIDTH(mm)
1.00
1.50
1.50
2.00
2.30
2.50
3.00
3.05
HEIGHT(mm)
2.00
2.00
2.50
3.80
3.50
4.00
4.60
6.35
SUPPORT ROD
ROUND
WIDTH(mm)
1.80
2.00
2.50
3.00
3.00
Ø2.5--Ø6mm
HEIGHT(mm)
2.50
3.00
4.00
4.60
6.00
----
Stainless Steel V Wire Wrapped Screen Pipe Use:
Water well
Water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Package of Stainless Steel V Wire Wrapped Screen Pipe:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Ordering Process:
Sample Orders: We welcome sample orders to test and check quality, with mixed samples accepted .
Lead Time: 3-5 days for sample preparation and 15-25 working days for mass production .
MOQ: Low MOQ, starting from 3 pieces for sample checking .
Shipping: Options include airline, sea shipping, rail transportation, or express courier services with 5-7 days arrival .
Customization and Logo Printing:
Logo Printing: We offer custom logo printing on our products upon request .
[Anping County Xinlu Wire Mesh Products Co., Ltd.] is committed to providing reliable and durable well screen pipes. Contact us today to discuss your specific filtration needs and order your customized Stainless Steel V Wire Water Screen Pipe.
