DN32-219mm Wedge Wire Lateral Assemblies for Under Draining Filtering
Wedge wire screen is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

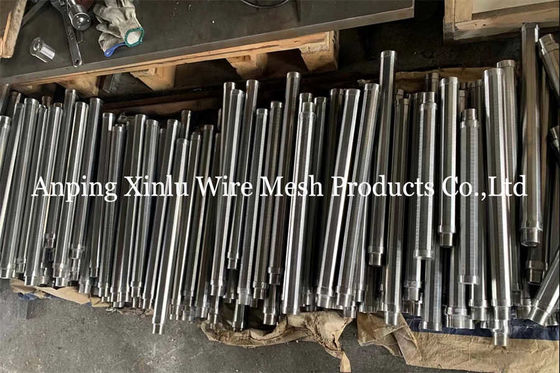

Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.
The wedge wire screen lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.
Because of the different ending of wedge wire screen lateral, the connection type is different. Commonly the wedge wire screen laterals are installed onto the vertical hub by threaded. Sometimes, the screen laterals are bolted onto the round hub through flanges on the screen laterals and round hubs.
Sometimes, the threaded ending wedge wire screen laterals are installed on to a hub with flanges. And the flanges are connected to the vertical hub flange by the bolts and nuts. The flange can be top flange or bottom flange. All the designs are used to suit different position and requirements of machine.
Specification of lateral assemblies
- Material: stainless steel, hastelloy steel or other alloy steel.
- Assemblies end type: threaded type or flange type.
- Slot size: 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm.
- Screen lateral diameter: 32 mm, 40 mm, 70 mm, 76 mm, 89 mm.
- Vertical hub diameter: 76 mm, 89 mm, 108 mm, 133 mm, 159 mm, 219 mm.
Specification of wedge wire lateral assemblies
| Slot size |
Screen lateral diameter (mm) |
Vertical hub diameter (mm) |
Screen lateral flange diameter (mm) |
Vertical hub flange diameter (mm) |
Numbers of screen lateral |
0.05
0.1
0.2
0.3
0.5
1 |
32
40
57
76
89 |
76
89
108
133
159
219 |
25
32
40
50
65
80 |
50
65
80
100
125
150 |
6
8
10
12 |
Hub radial laterals
There are another type of lateral assemblies, which are named as hub radial lateral. It is composed of several screen laterals and a central hub. The hub radial lateral assemblies has two main ending types: threaded ending types and flange ending types.
Hub radial lateral assemblies have lots of specs, including the slot size, screen lateral lengths and assemblies diameter. Additional, the quantity of screen laterals can be customized. There are four common type of hub radial lateral assemblies, you can refer to them and if you want other types, just tell us and we will customize them for you.
Specification of wedge wire hub lateral assemblies
| Item |
Screen lateral length (mm) |
Diameter of WWLA-09 (mm) |
Diameter of WWLA-10 (mm) |
Diameter of WWLA-11 (mm) |
Diameter of WWLA-12 (mm) |
| WWHLA-01 |
82 |
258 |
259 |
258 |
/ |
| WWHLA-02 |
113 |
316 |
321 |
316 |
/ |
| WWHLA-03 |
144 |
374 |
383 |
374 |
/ |
| WWHLA-04 |
175 |
432 |
445 |
432 |
/ |
| WWHLA-05 |
206 |
491 |
507 |
491 |
520 |
| WWHLA-06 |
237 |
549 |
569 |
549 |
580 |
| WWHLA-07 |
268 |
607 |
631 |
607 |
640 |
| WWHLA-08 |
299 |
665 |
693 |
665 |
699 |
| WWHLA-09 |
330 |
724 |
755 |
724 |
759 |
| WWHLA-10 |
361 |
782 |
817 |
782 |
819 |
| WWHLA-11 |
392 |
840 |
879 |
840 |
879 |
| WWHLA-12 |
423 |
898 |
941 |
898 |
939 |
| WWHLA-13 |
454 |
957 |
1003 |
957 |
999 |
| WWHLA-14 |
485 |
1015 |
1065 |
1015 |
1059 |
| WWHLA-15 |
516 |
1073 |
1127 |
1073 |
1119 |
| WWHLA-16 |
547 |
1131 |
1189 |
1131 |
1179 |
| WWHLA-17 |
578 |
1189 |
1251 |
1189 |
1239 |
| WWHLA-18 |
609 |
1247 |
1313 |
1247 |
1299 |
| WWHLA-19 |
640 |
/ |
/ |
/ |
1359 |
| WWHLA-20 |
671 |
/ |
/ |
/ |
1419 |
| WWHLA-21 |
702 |
/ |
/ |
/ |
1479 |
| WWHLA-22 |
733 |
/ |
/ |
/ |
1539 |
| WWHLA-23 |
764 |
/ |
/ |
/ |
1599 |
| WWHLA-24 |
795 |
/ |
/ |
/ |
1659 |
Features of wedge wire lateral assemblies
Wedge wire lateral assemblies can suit different applications for different use
- High open area.
- High filtering and screening performance.
- Various ending types.
- Temperature resistance.
- Corrosion and rust resistance.
- Non-clogging.
- Easy to install and replace.
- Low maintenance cost.
- Durable and long service life.
- Suit different application.
-
Application of wedge wire lateral assemblies
Wedge wire lateral assemblies is widely used in under draining applications for filtering and screening, additional, it is widely used in various machines for screening.
- Cation exchanger.
- Mixed bed exchanger.
- Ion exchanger.
